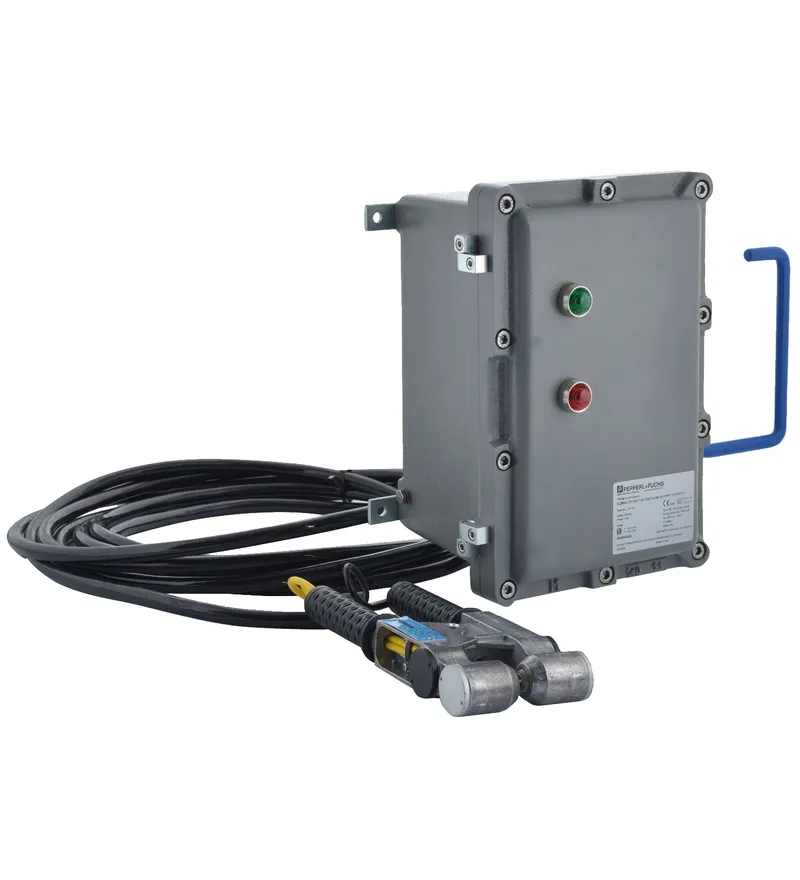

Pepperl Fuchs EJB6A*DMT*
Electronic Earthing System (Resistive and Capacitive)
- MPN
- EJB6A*DMT*
- Category
- Electronic Grounding System
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Pepperl Fuchs EJB6A*DMT*?
Elimination of electrostatic charges
Copper-free aluminum enclosure
Installation in Zone 1, Zone 2, Zone 21 and Zone 22
Ex d and Ex tb certified
Gas group IIB+H2
Degree of protection: IP 65
Elimination of electrostatic charges, Copper-free aluminum enclosure, Installation in Zone 1, Zone 2, Zone 21 and Zone 22, Ex d and Ex tb certified, Gas group IIB+H2, Degree of protection: IP 65
Specifications
Electrical specifications
| Order code (Pepperl+Fuchs part number) | T180157 |
| Operating voltage | 230 V AC , optional 110 V AC |
| Function | elimination of electrostatic charges |
| Lens color | red and green |
| Operator action | Cable: hydrocarbon-resistant, 3x 3 mm2, length 8 m. Other lengths on request. Connection clamp: Aluminum with phosphor bronze contacts, isolating thermoplastic handles |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Mechanical specifications
| Thread type | metric ISO pitch 1.5 mm or NPT ANSI ASME B1.20.1 |
| Enclosure cover | detachable , optional hinges |
| Cover fixing | stainless steel socket cap head screws |
| Screws | M8 |
| Number | 10 |
| Tightening torque | 20 Nm |
| Material of screws | stainless steel |
| Yield stress | min. 450 N/mm2 |
| Cover seal | none, O-ring for IP66/67 |
| Flamepath grease | Greasil MS4 or NEVER SEEZ Marine Grade |
| Degree of protection | IP65 , Enclosure IP66 (IP66/IP67 with O-ring) |
| Cable entry | face B |
| Cable entry face B: M25 quantity | 2 |
| Cable entry face B: M25 type | NPT 3/4'' |
| Cable entry face B: M25 info | as standard, other on request |
| Material: Enclosure | aluminum alloy |
| Material: Finish | epoxy coated RAL 7005 (grey) |
| Material: O-Ring | silicone |
| Mass | approx. 13 kg |
| Dimensions | values might differ slightly due to casting and manufacturing tolerances |
| External dimension (A) | 332 mm |
| External dimension (B) | 232 mm |
| External dimension (C) | 185 mm |
| Mounting holes distance (G) | 230 mm |
| Mounting holes distance (H) | 196 mm |
| Mounting holes diameter (J) | 8 mm |
| Maximum external dimension (K) | 216 mm |
| Maximum external dimension (K1) | 380 mm |
| Grounding | M6 external grounding points |
Ambient conditions
| Ambient temperature | -20 ... 40 °C (-4 ... 104 °F) |
Data for application in connection with hazardous areas
| EU-type examination certificate | INERIS 14 ATEX 0022X |
| Marking | II 2 GD Ex db [ia Ga] IIB+H2 T6 Gb, II 2 GD Ex tb [iaD] IIIB T85 °C Db |
International approvals
| IECEx approval | IECEx INE 14.0029X |
| UKCA approval | CML 21 UKEX 1424X |
Conformity
| Degree of protection | EN 60529 |
| CE marking | 0080 or 0102, see type label |
General information
| Order information | This solution will be delivered completely configured and assembled ready for use. For configuration details please contact Customer Service. |
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
