Pepperl Fuchs DMT*
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Electronic Grounding System |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can DMT* be shipped?
DMT* is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up DMT* in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for DMT* and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for DMT*, subject to availability and destination.

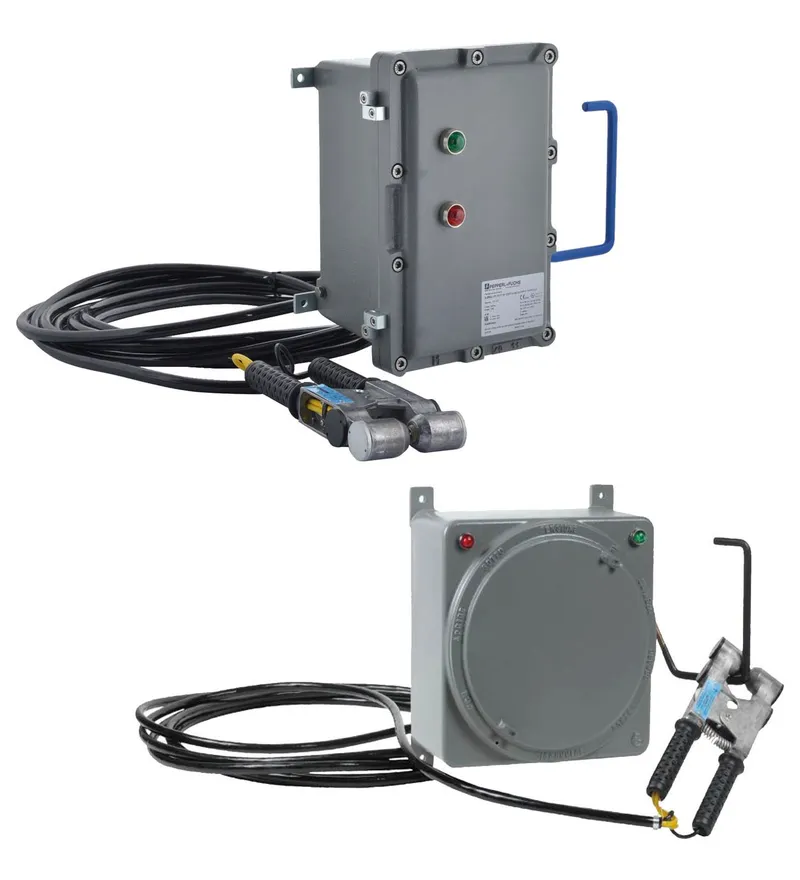

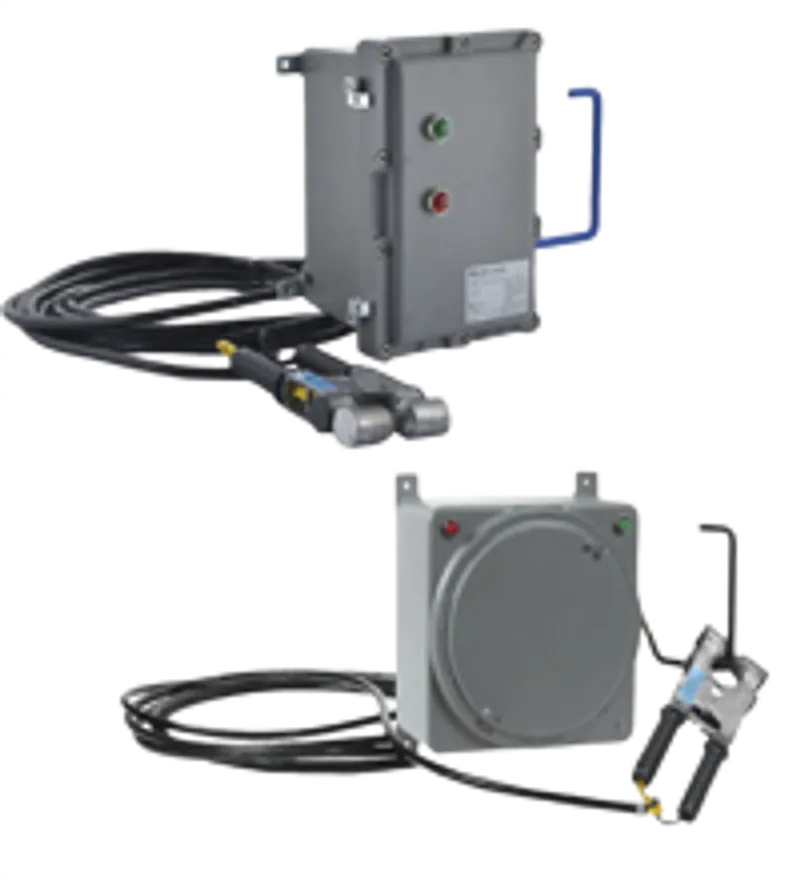

Electronic Earthing Systems Ex d. Elimination of electrostatic charges, Enclosures copper-free aluminum or stainless steel, Installation in Zone 1, Zone 2, Zone 21 and Zone 22, Ex d and Ex tb certified, Gas group IIC, Gas group IIB+H<SUB>2</SUB>, Degree of protection: IP 65. Operating voltage: 230 V AC , optional 110 V AC. Function: elimination of electrostatic charges. Lens colorred and greenOperator actionCable: hydrocarbon-resistant, 3x 3 mm2, length 8 m. Other lengths on request. Connection clamp: Aluminum with phosphor bronze contacts, isolating thermoplastic handles: . Lens color: red and green. Operator action: Cable: hydrocarbon-resistant, 3x 3 mm2, length 8 m. Other lengths on request. Connection clamp: Aluminum with phosphor bronze contacts, isolating thermoplastic handles. Thread type: metric ISO pitch 1.5 mm or NPT ANSI ASME B1.20.1. Enclosure cover: see PDF data sheet. Cover fixing: see PDF data sheet. Cover seal: none, O-ring for IP66/67. Flamepath grease: see PDF data sheet. Degree of protection: IP65 , Enclosure IP66 (IP66/IP67 with O-ring). Cable entry: face B. Cable entry face B: . M25 quantity2M25 typeNPT 3/4''M25 infoas standard, other on request: . M25 quantity: 2. M25 type: NPT 3/4''. M25 info: as standard, other on request. Material: . Enclosurealuminum alloy or AISI 316L, (1.4404) stainless steelFinishepoxy coated RAL 7005 (grey) or shot peenedO-Ringsilicone: . Enclosure: aluminum alloy or AISI 316L, (1.4404) stainless steel. Finish: epoxy coated RAL 7005 (grey) or shot peened. O-Ring: silicone. Mass: see PDF data sheet. Dimensions: see PDF data sheet values might differ slightly due to manufacturing tolerances. Grounding: M6 external grounding points. Ambient temperature: -20 ... 40 °C (-4 ... 104 °F). EU-type examination certificate: see PDF data sheet. Markingsee PDF data sheet: . Marking: see PDF data sheet. Degree of protection: EN 60529. CE marking: 0080 or 0102, see type label. Ordering information: This solution will be delivered completely configured and assembled ready for use. For configuration details please contact Customer Service.. Supplementary information: EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com.
Specifications
Electrical specifications
| Operating voltage | 230 V AC , optional 110 V AC |
| Function | elimination of electrostatic charges |
| Lens colorred and greenOperator actionCable: hydrocarbon-resistant, 3x 3 mm2, length 8 m. Other lengths on request. Connection clamp: Aluminum with phosphor bronze contacts, isolating thermoplastic handles | Lens color |
| Lens color | red and green |
| Operator action | Cable: hydrocarbon-resistant, 3x 3 mm2, length 8 m. Other lengths on request. Connection clamp: Aluminum with phosphor bronze contacts, isolating thermoplastic handles |
Mechanical specifications
| Thread type | metric ISO pitch 1.5 mm or NPT ANSI ASME B1.20.1 |
| Enclosure cover | see PDF data sheet |
| Cover fixing | see PDF data sheet |
| Cover seal | none, O-ring for IP66/67 |
| Flamepath grease | see PDF data sheet |
| Degree of protection | IP65 , Enclosure IP66 (IP66/IP67 with O-ring) |
| Cable entry | face B |
| Cable entry face B | |
| M25 quantity2M25 typeNPT 3/4''M25 infoas standard, other on request | M25 quantity |
| M25 quantity | 2 |
| M25 type | NPT 3/4'' |
| M25 info | as standard, other on request |
| Material | |
| Enclosurealuminum alloy or AISI 316L, (1.4404) stainless steelFinishepoxy coated RAL 7005 (grey) or shot peenedO-Ringsilicone | Enclosure |
| Enclosure | aluminum alloy or AISI 316L, (1.4404) stainless steel |
| Finish | epoxy coated RAL 7005 (grey) or shot peened |
| O-Ring | silicone |
| Mass | see PDF data sheet |

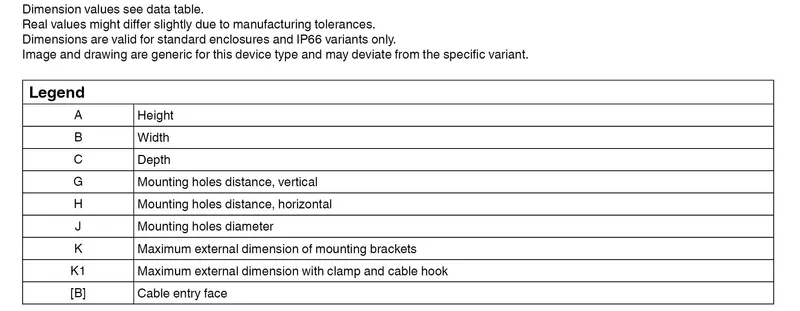

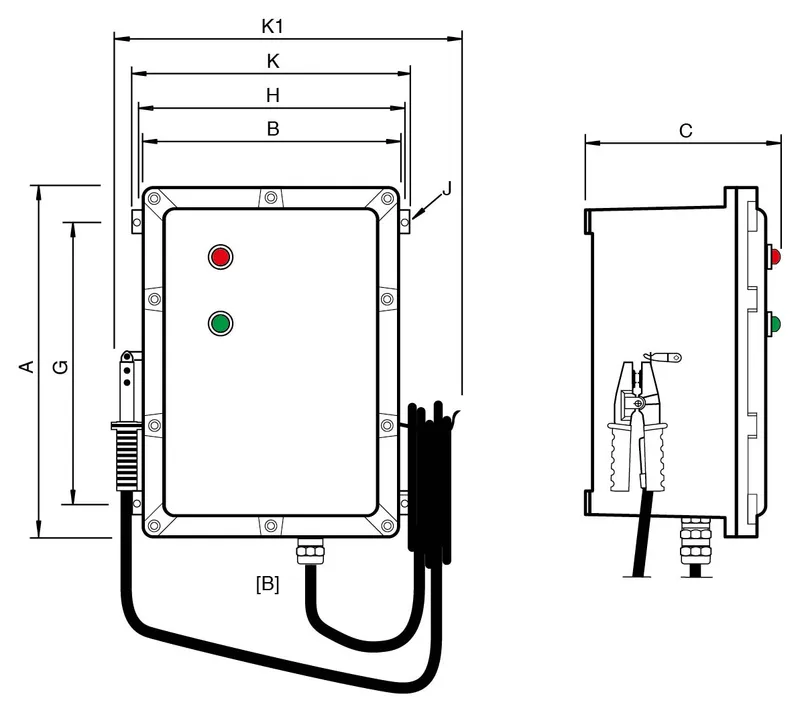

| Dimensions | see PDF data sheet values might differ slightly due to manufacturing tolerances |
| Grounding | M6 external grounding points |
Ambient conditions
| Ambient temperature | -20 ... 40 °C (-4 ... 104 °F) |
Data for application in connection with hazardous areas
| EU-type examination certificate | see PDF data sheet |
| Markingsee PDF data sheet | Marking |
| Marking | see PDF data sheet |
Conformity
| Degree of protection | EN 60529 |
| CE marking | 0080 or 0102, see type label |
General information
| Ordering information | This solution will be delivered completely configured and assembled ready for use. For configuration details please contact Customer Service. |
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
