Home / Hazardous Area Products and Solutions / Remote I/O Systems / FB (Zone 1)

FB (Zone 1) Parts

Showing 49–72 of 87 parts
Pepperl Fuchs FB7304B3 – Universal Input/Output (HART)
Pepperl Fuchs
FB7304B3

Universal Input/Output (HART)

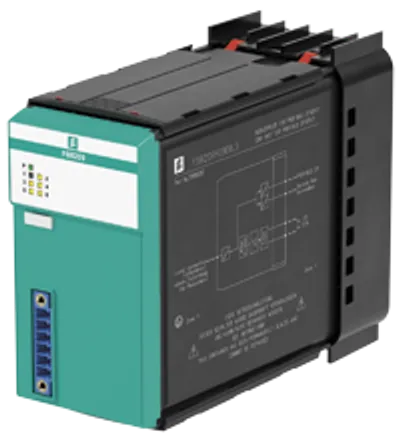

Pepperl Fuchs FB8209H0908.3 – Unicom Com Unit for PROFIBUS DP/DP-V1
Pepperl Fuchs
FB8209H0908.3

Unicom Com Unit for PROFIBUS DP/DP-V1

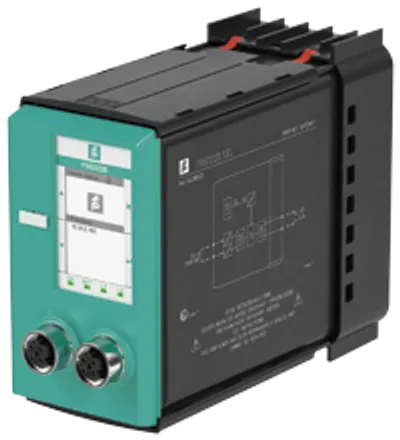

Pepperl Fuchs FB8222B.1.EL – Gateway for PROFINET
Pepperl Fuchs
FB8222B.1.EL

Gateway for PROFINET

Pepperl Fuchs FB1209B3 – Digital Input
Pepperl Fuchs
FB1209B3

Digital Input

Pepperl Fuchs FB4205B3 – HART Output Isolator
Pepperl Fuchs
FB4205B3

HART Output Isolator

Pepperl Fuchs FB4202B3 – HART Output Isolator
Pepperl Fuchs
FB4202B3

HART Output Isolator

Pepperl Fuchs FB1308B3 – Digital Input
Pepperl Fuchs
FB1308B3

Digital Input

Pepperl Fuchs FB2216E3 – Digital Output with Position Feedback
Pepperl Fuchs
FB2216E3

Digital Output with Position Feedback

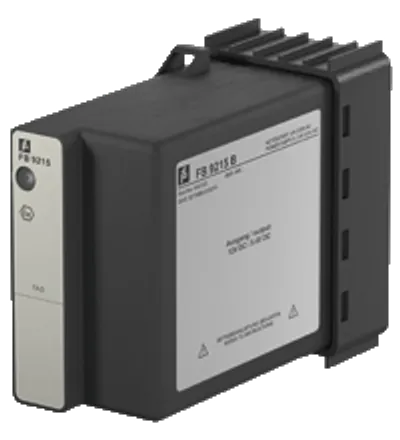

Pepperl Fuchs FB9215B2 – Power supply
Pepperl Fuchs
FB9215B2

Power supply

Pepperl Fuchs FB7204B3 – Universal Input/Output (HART)
Pepperl Fuchs
FB7204B3

Universal Input/Output (HART)

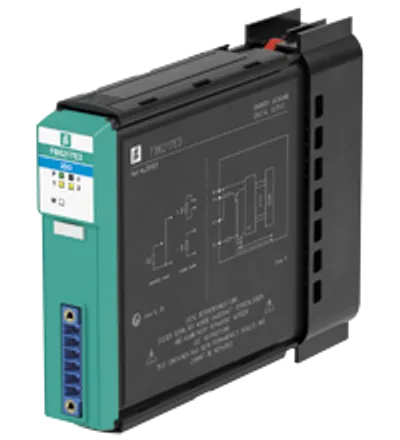

Pepperl Fuchs FB6217E3 – Digital Output with Shutdown Input
Pepperl Fuchs
FB6217E3

Digital Output with Shutdown Input

Pepperl Fuchs FB6216E3 – Digital Output with Shutdown Input
Pepperl Fuchs
FB6216E3

Digital Output with Shutdown Input

Compare FB (Zone 1)

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPNOrder code (Pepperl+Fuchs part number)ConnectionDegree of protectionMassEU-type examination certificate
FB9248-T7*-*-***-**-*-Y*T196795screw terminals, max. 10 mm2EN 60529approx. 50 kg , without modulesPTB 97 ATEX 1075 X
FB9224-T6*-*-***-**-*-Y*T196794screw terminals, max. 10 mm2EN 60529approx. 32 kg , without modulesPTB 97 ATEX 1075 X
FB9240-T7*-*-***-**-*-Y*T196793screw terminals, max. 10 mm2EN 60529approx. 50 kg , without modulesPTB 97 ATEX 1075 X
FB9220-T6*-*-***-**-*-Y*T196792screw terminals, max. 10 mm2EN 60529approx. 32 kg , without modulesPTB 97 ATEX 1075 X
FB9210-T6*-*-***-**-*-Y*T196791screw terminals, max. 10 mm2EN 60529approx. 25 kg , without modulesPTB 97 ATEX 1075 X
FB9241-T8*-*-***-**-*-Y*T196789screw terminals, max. 10 mm2EN 60529approx. 75 kg , without modulesPTB 97 ATEX 1075 X
FB9241-T7*-*-***-**-*-Y*T196788screw terminals, max. 10 mm2EN 60529approx. 50 kg , without modulesPTB 97 ATEX 1075 X
FB9221-T6*-*-***-**-*-Y*T196787screw terminals, max. 10 mm2EN 60529approx. 32 kg , without modulesPTB 97 ATEX 1075 X
FB9211-T6*-*-***-**-*-Y*T196786screw terminals, max. 10 mm2EN 60529approx. 25 kg , without modulesPTB 97 ATEX 1075 X
FB7304B3239065backplane busIEC 60529approx. 425 gFIDI 21 ATEX 0013 U
FB8209H0908.370106285backplane busIEC 60529approx. 750 gPresafe 19 ATEX 14058U
FB8222B.1.EL70138965backplane busIEC 60529approx. 965 gPTB 19 ATEX 2007 U
FB9262BP24110.R70141259—EN 60529approx. 2687 kg , without modulesBVS 11 ATEX E 041 X
FB1209B3223079backplane busIEC 60529approx. 420 gPresafe 19 ATEX 14055U

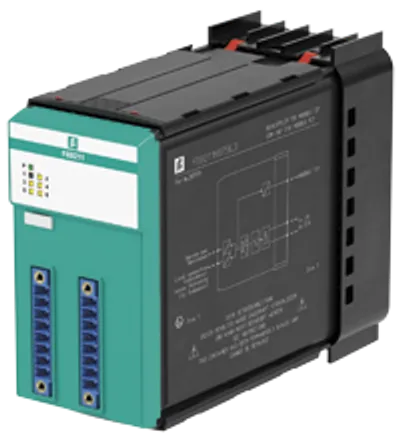

FB8211H0756.3287579backplane busIEC 60529approx. 750 gPresafe 19 ATEX 14058U

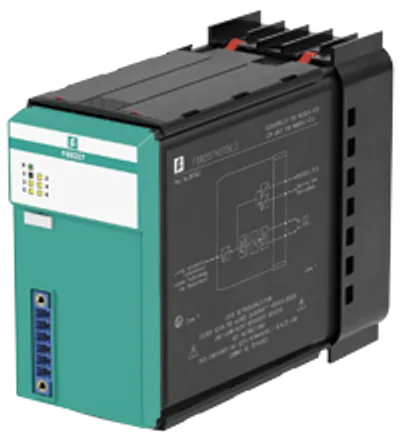

FB8207H0706.3287562backplane busIEC 60529approx. 750 gPresafe 19 ATEX 14058U
FB4205B3276325backplane busIEC 60529:2000approx. 750 gPresafe 19 ATEX 14057U
FB4202B3276322backplane busIEC 60529:2000approx. 350 gPresafe 19 ATEX 14057U
FB1308B3276221backplane busIEC 60529:2000approx. 750 gFIDI 21 ATEX 0012 U
FB2216E3282275backplane bus / booster terminalsIEC 60529approx. 420 gPresafe 19 ATEX 14054U
FB9215B2271245wired to Ex e terminals via backplaneIEC 60529:2000approx. 890 gPTB 97 ATEX 1074 U
FB7204B3223085backplane busIEC 60529approx. 425 gPresafe 19 ATEX 14057U
FB6217E3281081backplane bus / booster terminalsIEC 60529approx. 420 gPresafe 19 ATEX 14054U
FB6216E3281078backplane bus / booster terminalsIEC 60529approx. 425 gPresafe 19 ATEX 14054U

Common to all listed parts

LifecycleActive (current Pepperl+Fuchs product)
