CURVE 120+ VERT AL 45°R500

Name: CURVE 120+ VERT AL 45°R500
Brand: Bosch Rexroth
SKU: 3842547097

MPN: 3842547097 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Curve AL
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 3842547097 be shipped?

3842547097 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3842547097 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3842547097 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842547097, subject to availability and destination.

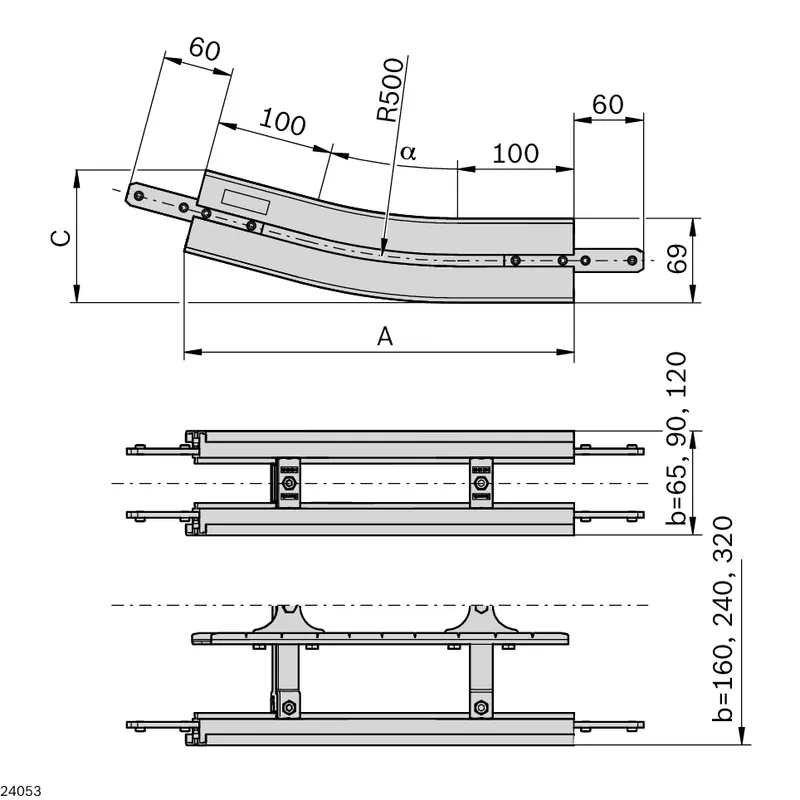

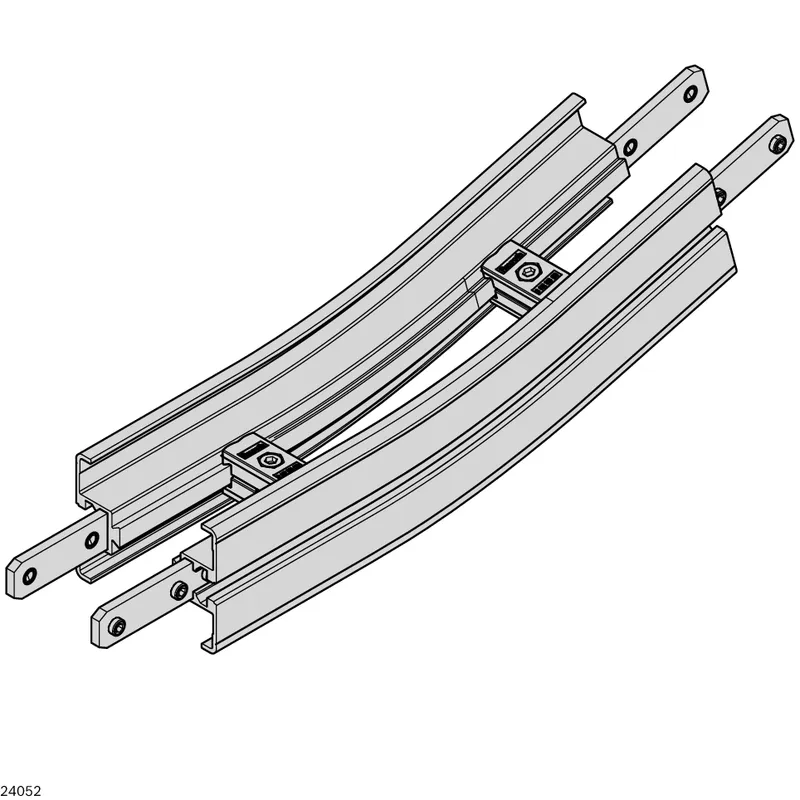

Vertical curve AL VFplus 120 45° The vertical curve is used for the transition from a horizontal conveyor section to an ascending section and vice versa

Specifications

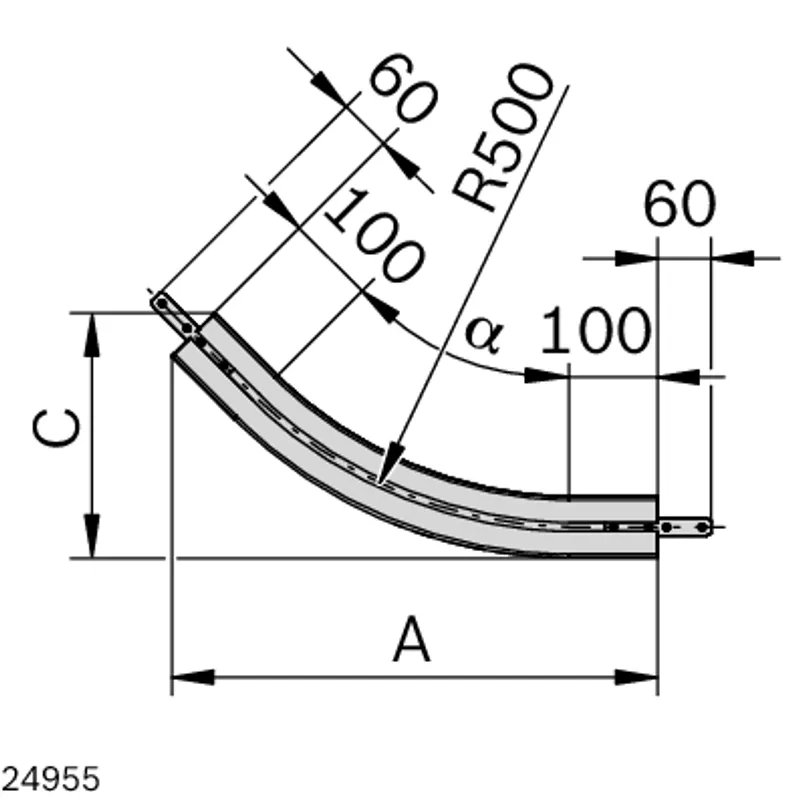

Deflection angle [α] [°]	45
Dimension A [mm] [mm]	548.7
Size [b] [mm]	120
Scope of delivery	Incl. fastening material for mounting to the AL section profile
Delivery information	Fully assembled
Modification	Additional versions are available on request from our modification department. (COS@boschrexroth.de)
Material information	Cross connector: Diecast aluminum; Profile connector: Steel, galvanized; Profile: Aluminum, anodized; Support profile from size 160: Non-rusting steel 1.4301
Actual chain length [m]	2x 0,59
Effective sliding rail length [m]	4x 0,59
Required accessories	Slide rail: Length calculation
Weight [kg]	1.83
