CURVE 65+ HOR AL 90° R700
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Curve AL |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 3842547074 be shipped?
3842547074 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3842547074 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3842547074 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842547074, subject to availability and destination.

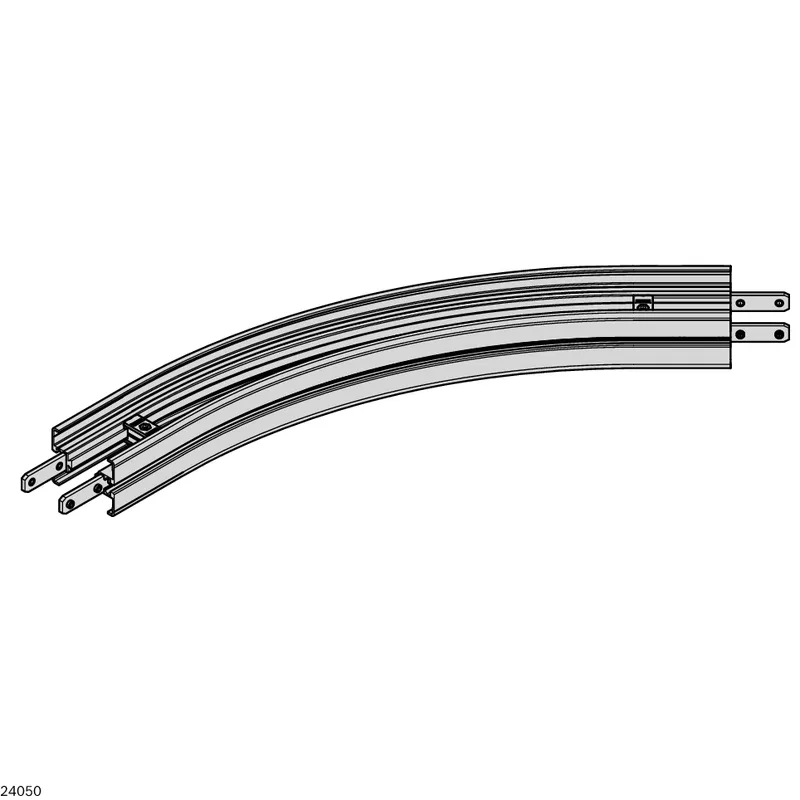

Sliding curve horizontal AL VFplus 65 90° The sliding curve provides a horizontal change in direction for the chain, for when there is not enough space for a curve wheel or the speeds or product dimensions do not permit conveying over a curve wheel
Specifications
Specifications

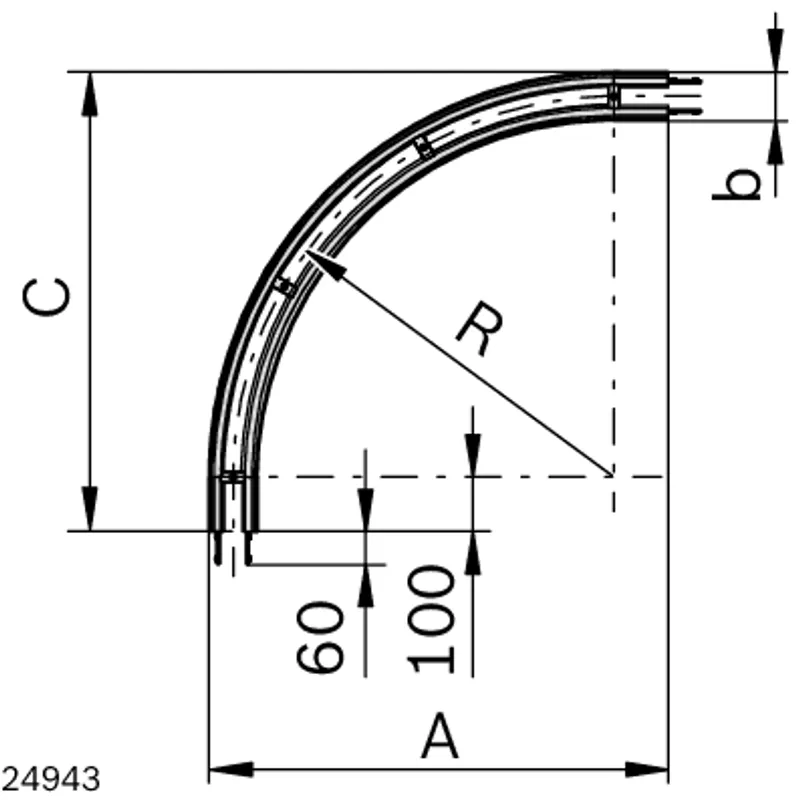

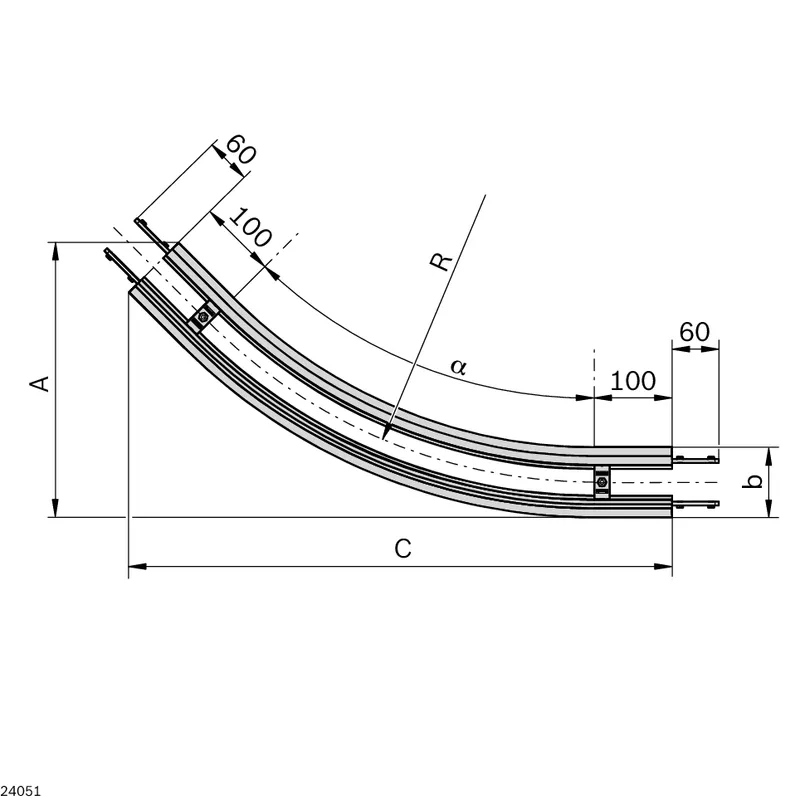

| Deflection angle [α] [°] | 90 |
| Dimension A [mm] [mm] | 832.5 |
| Size [b] [mm] | 65 |
| Scope of delivery | Incl. fastening material for mounting to the AL section profile |
| Delivery information | Fully assembled |
| Modification | Additional versions are available on request from our modification department. (COS@boschrexroth.de) |
| Material information | Cross connector: Diecast aluminum; Profile connector: Steel, galvanized; Profile: Aluminum, anodized |
| Actual chain length [m] | 2x 1,3 |
| Effective sliding rail length [m] | 4x 1,3 |
| Required accessories | Slide rail: Length calculation |
| Weight [kg] | 3.3 |
