Small modules SMS Parts
Compare Small modules SMS
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Maximum stroke [mm] | Maximum permissible linear speed vmax [m/s] | Permissible overhang A at maximum payload horizontal [mm] | Overall length Ltot [mm] | Weight [kg] |
|---|---|---|---|---|---|
| R02681L066 | 800.0 | 1.6 | 341 | 1039 | 9.72 |
| R02681L062 | 600.0 | 1.92 | 341 | 839 | 8.32 |
| R02681L058 | 400.0 | 1.92 | 341 | 639 | 6.92 |
| R02681L054 | 200.0 | 1.92 | 341 | 439 | 5.52 |
| R02681L074 | 1200.0 | 0.8 | 341 | 1439 | 12.52 |
| R02681L070 | 1000.0 | 1.06 | 341 | 1239 | 11.12 |
| R02681L052 | 100.0 | 1.92 | 341 | 339 | 4.82 |
| R02681L016 | 800.0 | 0.5 | 736 | 1039 | 9.72 |
| R02681L012 | 600.0 | 0.6 | 736 | 839 | 8.32 |
| R02681L008 | 400.0 | 0.6 | 736 | 639 | 6.92 |
| R02681L004 | 200.0 | 0.6 | 736 | 439 | 5.52 |

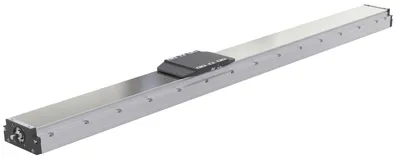

| R02681L024 | 1200.0 | 0.25 | 736 | 1439 | 12.52 |
| R02681L020 | 1000.0 | 0.33 | 736 | 1239 | 11.12 |
| R02681L002 | 100.0 | 0.6 | 736 | 339 | 4.82 |
| R02681H066 | 800.0 | 0.9 | 112 | 1018 | 8.53 |
| R02681H062 | 600.0 | 1.2 | 112 | 818 | 7.28 |
| R02681H058 | 400.0 | 1.2 | 112 | 618 | 5.92 |

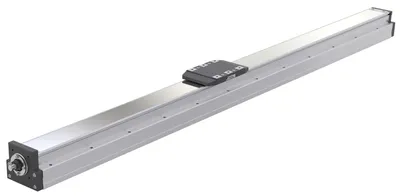

| R02681H054 | 200.0 | 1.2 | 112 | 418 | 4.57 |
| R02681H074 | 1200.0 | 0.36 | 112 | 1418 | 11.53 |
| R02681H070 | 1000.0 | 0.53 | 112 | 1218 | 9.85 |
| R02681H052 | 100.0 | 1.2 | 112 | 318 | 3.86 |
| R02681H016 | 800.0 | 0.45 | 115 | 1018 | 8.53 |
| R02681H012 | 600.0 | 0.6 | 115 | 818 | 7.28 |
| R02681H008 | 400.0 | 0.6 | 115 | 618 | 5.92 |
Common to all listed parts
| Repeatability [mm] | ±0.005 |
