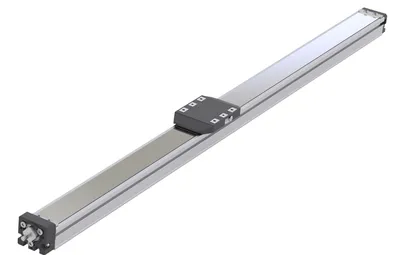

Compare Small modules SMS
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Maximum stroke [mm] | Maximum permissible linear speed vmax [m/s] | Overall length Ltot [mm] | Weight [kg] |
|---|
| R02681C004 | 200.0 | 0.43 | 315 | 0.37 |
| R02681C003 | 150.0 | 0.48 | 265 | 0.33 |
| R02681C002 | 100.0 | 0.48 | 215 | 0.27 |
Common to all listed parts
| Nominal size d0 x P [mm] | 6 x 8 |
| Nominal size [mm] | SMS-030 |
| Maximum payload vertical [kg] | 2.0 |
| Maximum payload horizontal [kg] | 10.0 |
| Maximum payload - wall mounting [kg] | 10.0 |
| Repeatability [mm] | ±0.005 |
| Module width [mm] | 30.0 |
| Module height [mm] | 30.0 |
