Bosch Rexroth R02681L070

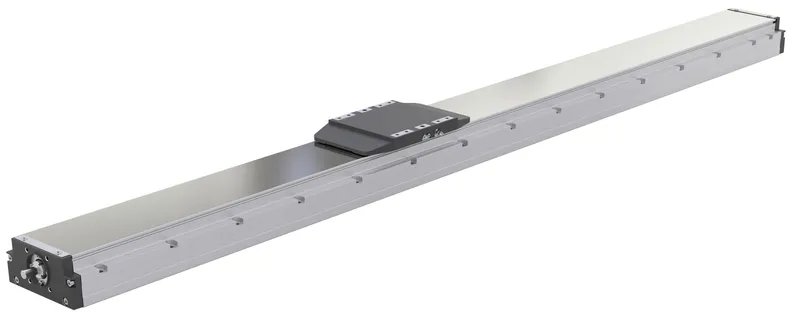

MODULE SMS-120-P32-1000

MPN
R02681L070
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R02681L070?

The ultra-compact SMS module with threaded screw drive enables highly efficient handling of fixings and is particularly suitable for simple positioning and delivery tasks. The SMS module is also ideal for electrification in cost-sensitive areas or for substitution of pneumatic modules. A large selection of preconfigured variants in commercially available modular lengths can be selected online via a few parameters and are quickly available from stock. Suitable motor attachments, for example, with flange coupling or belt side drive for servo motors or stepping motors, are also optionally available as separate accessories. Furthermore, multi-axis systems can be built from the SMS modules using the connection plate and angle bracket accessories.

Specifications

Specifications

Nominal size d0 x P [mm]16 x 32
Nominal size [mm]SMS-120
Maximum payload vertical [kg]8.0
Maximum payload horizontal [kg]30.0
Maximum payload - wall mounting [kg]30.0
Repeatability [mm]±0.005
Module width [mm]120.0
Module height [mm]76.0
Maximum stroke [mm]1000.0
Maximum acceleration rate amax [m/s²]9.6
Maximum permissible linear speed vmax [m/s]1.06
Permissible overhang A at maximum payload horizontal [mm]341
Permissible overhang B at maximum payload horizontal [mm]211
Permissible overhang C at maximum payload horizontal [mm]189
Note: overhang (horizontal installation)Detailed information on the overhang (e.g. combined overhang, payload levels, etc.) for horizontal installation can be found in catalog R99…
Permissible overhang A at maximum payload vertical [mm]832
Permissible overhang C at maximum payload vertical [mm]832
Note: overhang (vertical installation)Detailed information on the overhang (e.g. combined overhang, payload levels, etc.) for vertical installation can be found in catalog R99…
Permissible overhang A at maximum payload - wall mounting [mm]243
Permissible overhang B at maximum payload - wall mounting [mm]251
Permissible overhang C at maximum payload - wall mounting [mm]408
Note: overhang (wall mounting)Detailed information on the overhang (e.g. combined overhang, payload levels, etc.) for wall assembly can be found in catalog R99…
Maximum drive torque [Nm]3.1
Overall length Ltot [mm]1239
Weight [kg]11.12

R02681L070: frequently asked questions

When can R02681L070 be shipped?

R02681L070 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R02681L070 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R02681L070 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R02681L070, subject to availability and destination.
