Bosch Rexroth R02681H074

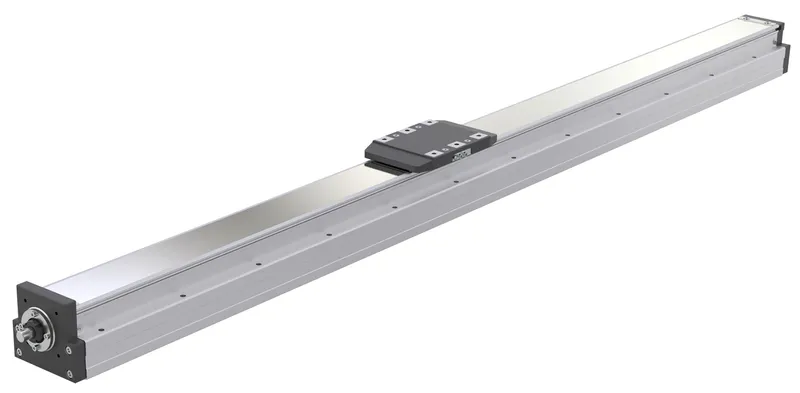

MODULE SMS-080-P20-1200
- MPN
- R02681H074
- Category
- Small modules SMS
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Bosch Rexroth R02681H074?
The ultra-compact SMS module with threaded screw drive enables highly efficient handling of fixings and is particularly suitable for simple positioning and delivery tasks. The SMS module is also ideal for electrification in cost-sensitive areas or for substitution of pneumatic modules. A large selection of preconfigured variants in commercially available modular lengths can be selected online via a few parameters and are quickly available from stock. Suitable motor attachments, for example, with flange coupling or belt side drive for servo motors or stepping motors, are also optionally available as separate accessories. Furthermore, multi-axis systems can be built from the SMS modules using the connection plate and angle bracket accessories.
Specifications
Specifications
| Nominal size d0 x P [mm] | 16 x 20 |
| Nominal size [mm] | SMS-080 |
| Maximum payload vertical [kg] | 8.0 |
| Maximum payload horizontal [kg] | 40.0 |
| Maximum payload - wall mounting [kg] | 40.0 |
| Repeatability [mm] | ±0.005 |
| Module width [mm] | 82.0 |
| Module height [mm] | 78.0 |
| Maximum stroke [mm] | 1200.0 |
| Maximum acceleration rate amax [m/s²] | 6.0 |
| Maximum permissible linear speed vmax [m/s] | 0.36 |
| Permissible overhang A at maximum payload horizontal [mm] | 112 |
| Permissible overhang B at maximum payload horizontal [mm] | 40 |
| Permissible overhang C at maximum payload horizontal [mm] | 47 |
| Note: overhang (horizontal installation) | Detailed information on the overhang (e.g. combined overhang, payload levels, etc.) for horizontal installation can be found in catalog R99… |
| Permissible overhang A at maximum payload vertical [mm] | 247 |
| Permissible overhang C at maximum payload vertical [mm] | 247 |
| Note: overhang (vertical installation) | Detailed information on the overhang (e.g. combined overhang, payload levels, etc.) for vertical installation can be found in catalog R99… |
| Permissible overhang A at maximum payload - wall mounting [mm] | 47 |
| Permissible overhang B at maximum payload - wall mounting [mm] | 40 |
| Permissible overhang C at maximum payload - wall mounting [mm] | 112 |
| Note: overhang (wall mounting) | Detailed information on the overhang (e.g. combined overhang, payload levels, etc.) for wall assembly can be found in catalog R99… |
| Maximum drive torque [Nm] | 2.2 |
| Overall length Ltot [mm] | 1418 |
| Weight [kg] | 11.53 |
