Hydraulic steering units Parts
Compare Hydraulic steering units
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Cylinder Relief Valve Setting | Displacement | Inlet or LS relief setting | Inlet Pressure Rating | Nominal Flow Rating |
|---|---|---|---|---|---|

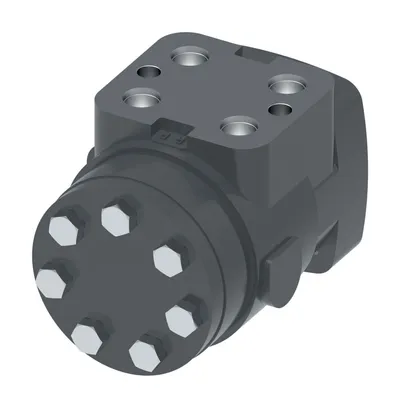

| 291-5272-003 | None | 146 cm3/r [8.90 in3/r] | 110BAR[1600 PSI] | 140 BAR [2030 PSI] | 19 LPM [5.00 GPM] |
| 291-5270-003 | None | 50.8 cm3/r [3.10 in3/r] | None | 140 BAR [2030 PSI] | 11 LPM [3.00 GPM] |
| 291-5266-003 | None | 146 cm3/r [8.90 in3/r] | 125BAR[1812 PSI] | 140 BAR [2030 PSI] | 19 LPM [5.00 GPM] |
| 291-5250-003 | None | 50.8 cm3/r [3.10 in3/r] | 100BAR[1450 PSI] | 103 BAR [1490 PSI] | 11 LPM [3.00 GPM] |
| 291-5194-003 | None | 100 cm3/r [6.10 in3/r] | 63BAR[914 PSI] | 103 BAR [1490 PSI] | 15 LPM [4.00 GPM] |
| 291-5190-003 | 185 BAR [2680 PSI] | 100 cm3/r [6.10 in3/r] | 110BAR[1600 PSI] | 140 BAR [2030 PSI] | 11 LPM [3.00 GPM] |
| 291-5168-003 | None | 73.8 cm3/r [4.50 in3/r] | None | 69 BAR [1000 PSI] | 19 LPM [5.00 GPM] |
Common to all listed parts
| Design code | 3rd Design |
| Flow Amplification | None |
| Fluid Type | Reference bulletin 3-401 |
| Load Circuit | Non reaction |
| Neutral Circuit | Open center with power beyond |
| Product Series | Series 5 Steering Unit |
| Special Application Options | None |
| Special Features | None |
