Danfoss 291-5194-003

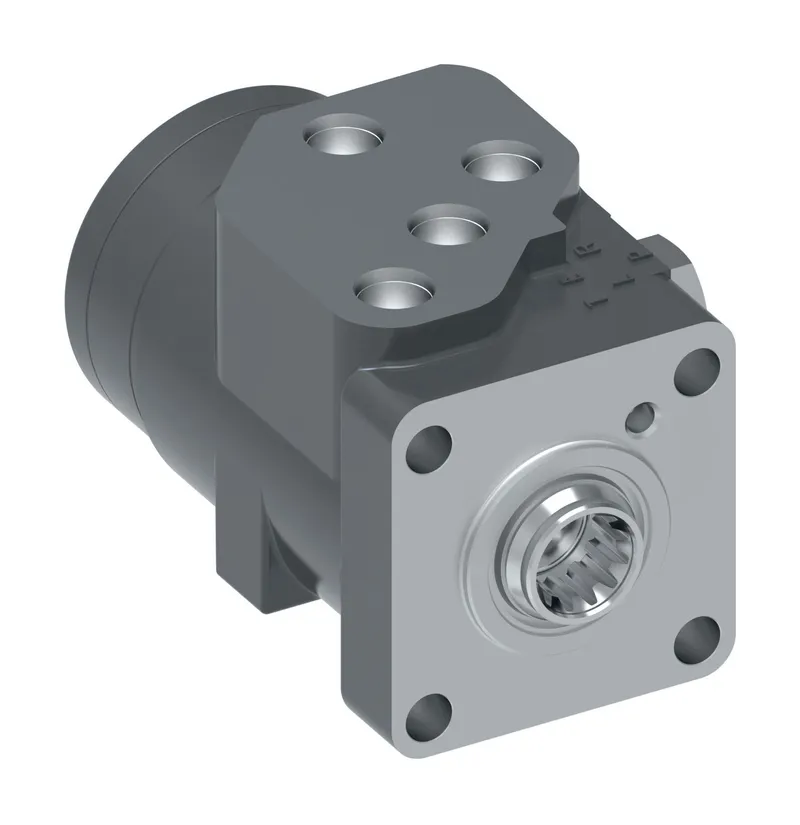

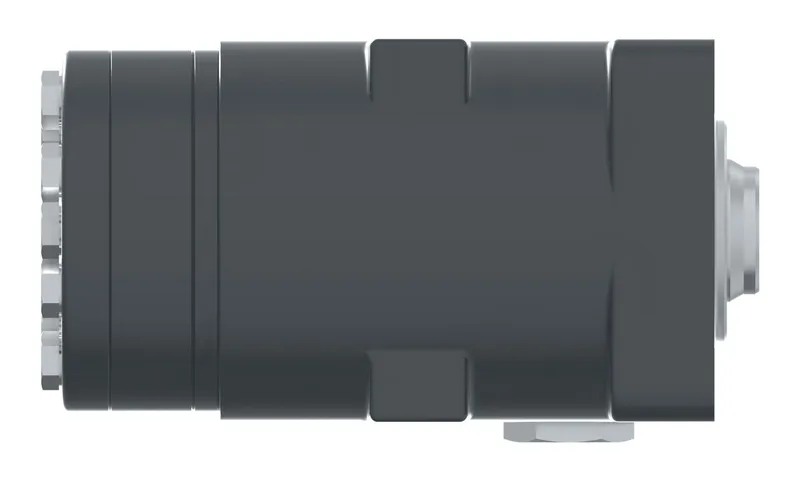

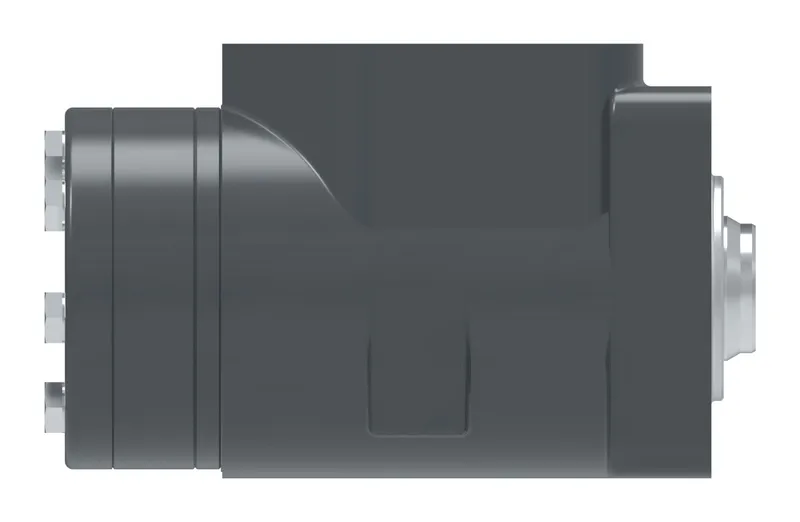

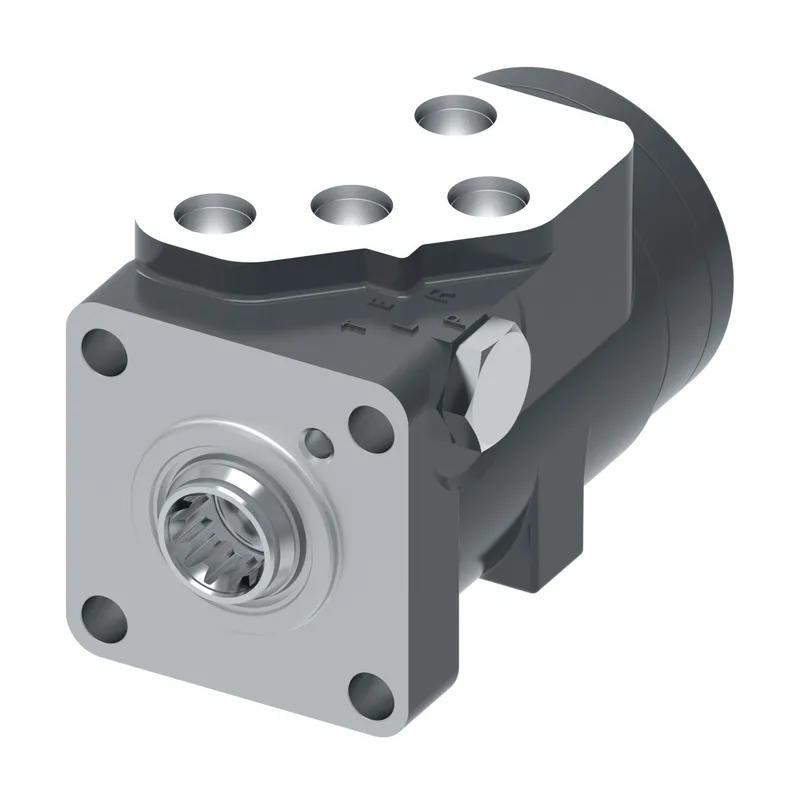

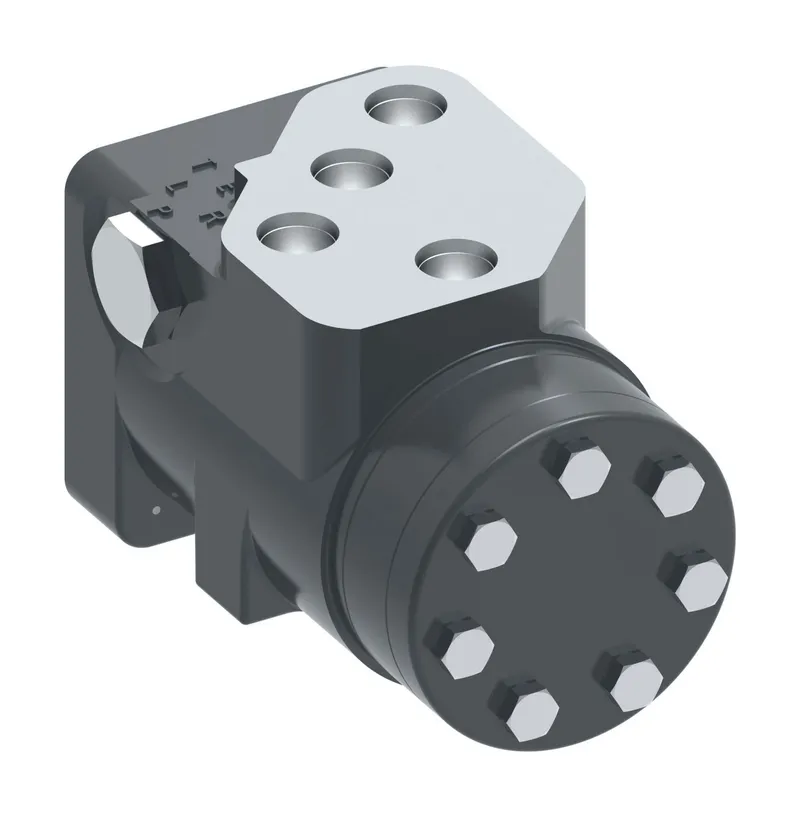

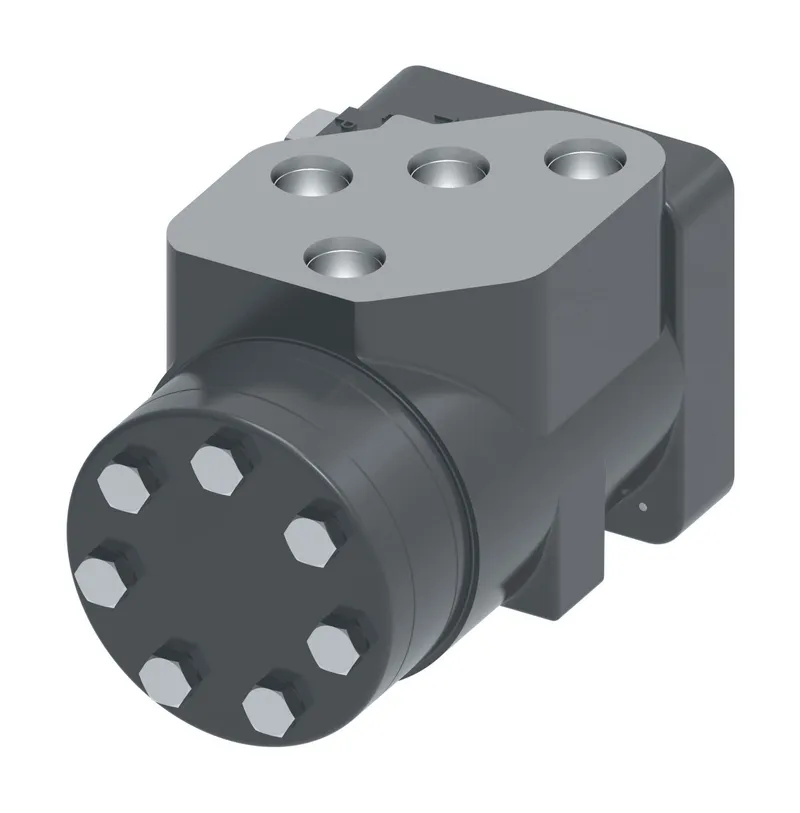

Series 5 100 PBN Steering Unit

MPN: 291-5194-003
Category: Hydraulic steering units

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 291-5194-003?

Danfoss Series 5 100 PBN Steering Unit, manufacturer part number 291-5194-003. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Additonal Ports	.5625-18 UNF-2B SAE O-RING PORT EXCESS FLOWON PORT FACE
Cylinder Relief Valve Setting	None
Design code	3rd Design
Displacement	100 cm3/r [6.10 in3/r]
Flow Amplification	None
Fluid Type	Reference bulletin 3-401
Identification	EATON PRODUCT NUMBER ON NAMEPLATE
Inlet or LS relief setting	63BAR[914 PSI]
Inlet Pressure Rating	103 BAR [1490 PSI]
Input Torque	Standard
Load Circuit	Non reaction
Mechanical Interface	INTERNAL INVOLUTE SPLINE 12 TOOTH 16/32 DP30 DEGREE PA
Mounting Threads	NONE ON PORT FACE 4X M10 x 1.5-6H ONMOUNTING FACE
Neutral Circuit	Open center with power beyond
Nominal Flow Rating	15 LPM [4.00 GPM]
P,T,L, AND R PORT SIZE	SIDE PORTED 4X .5625-18 UNF-2B SAE O-RING PORT
PAINTS & PACKAGING	BLACK PAINT
Product Series	Series 5 Steering Unit
Return Pressure Rating	10 BAR [145 PSI]
Special Application Options	None
Special Features	None
Valve Options	IRV,MSCV
