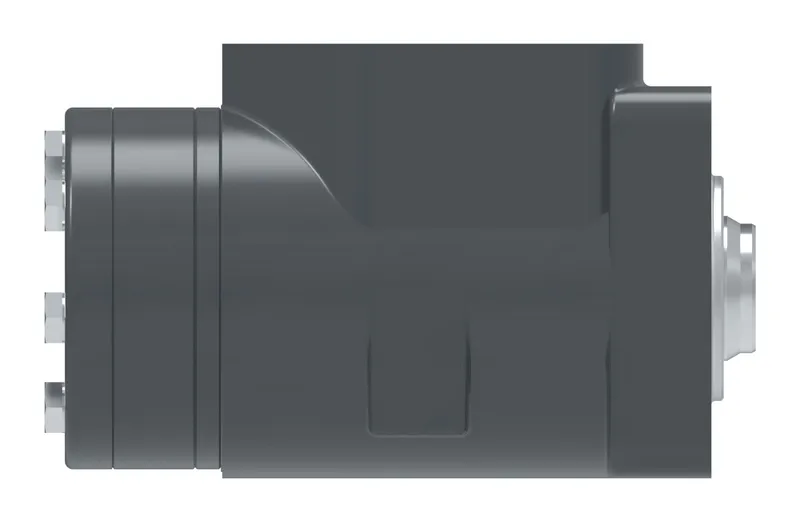

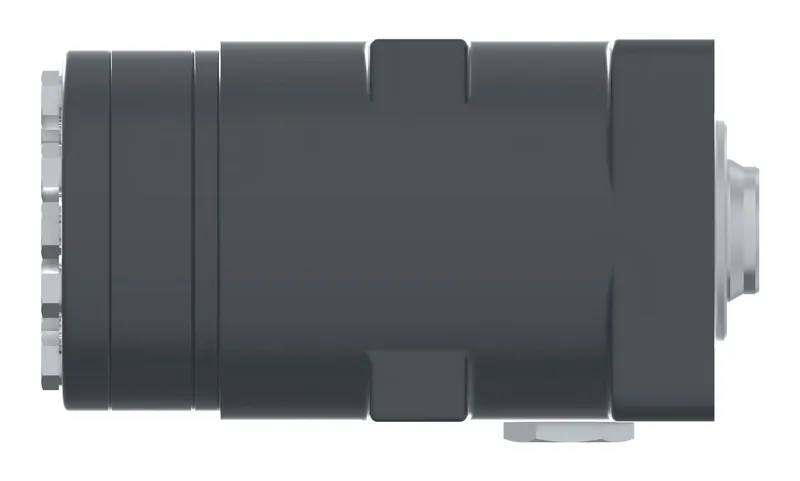

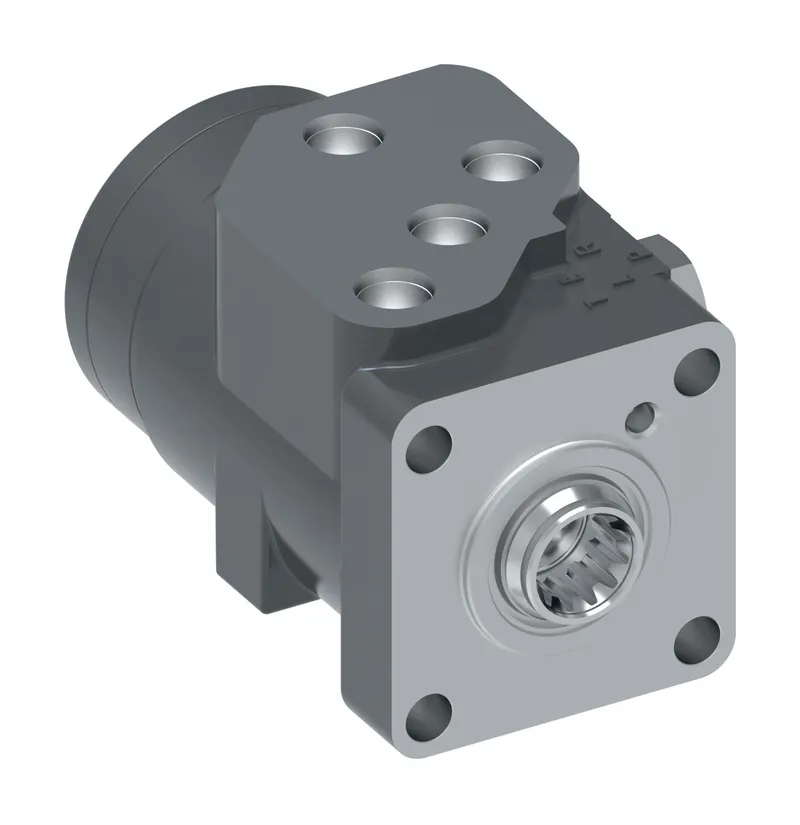

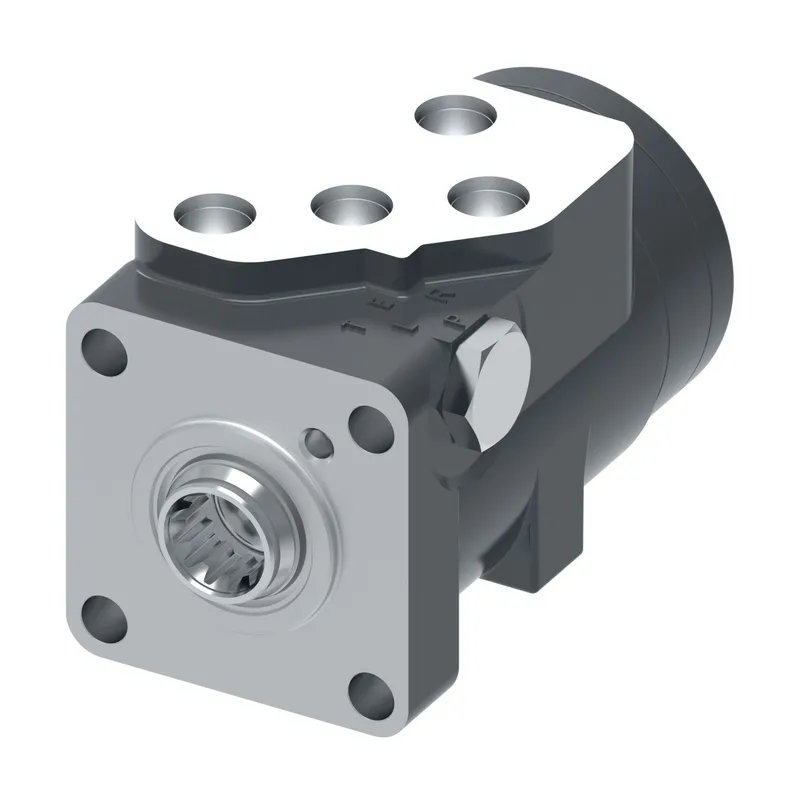

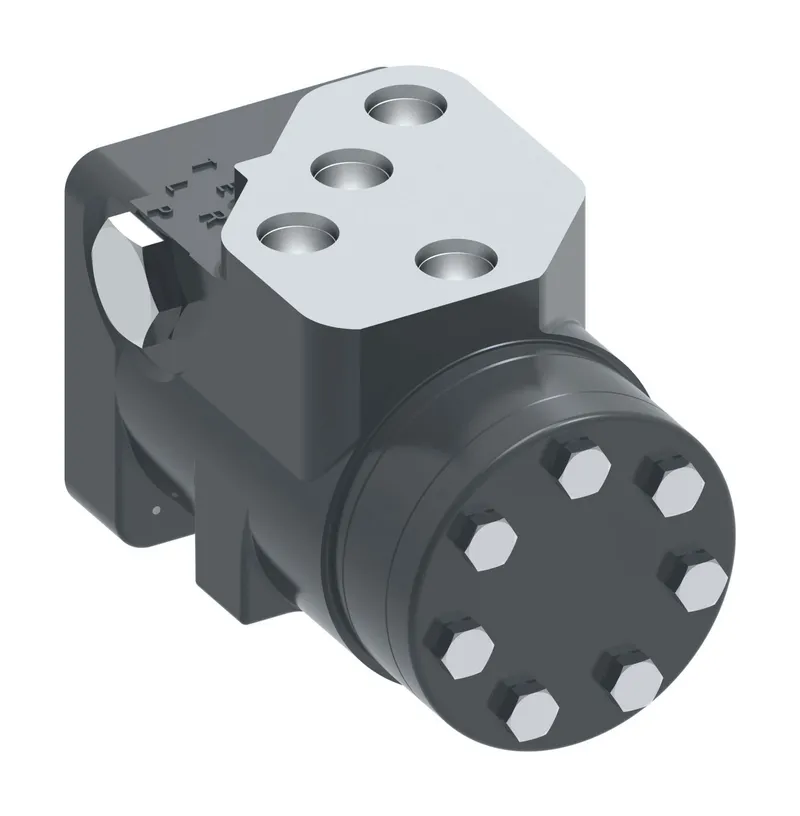

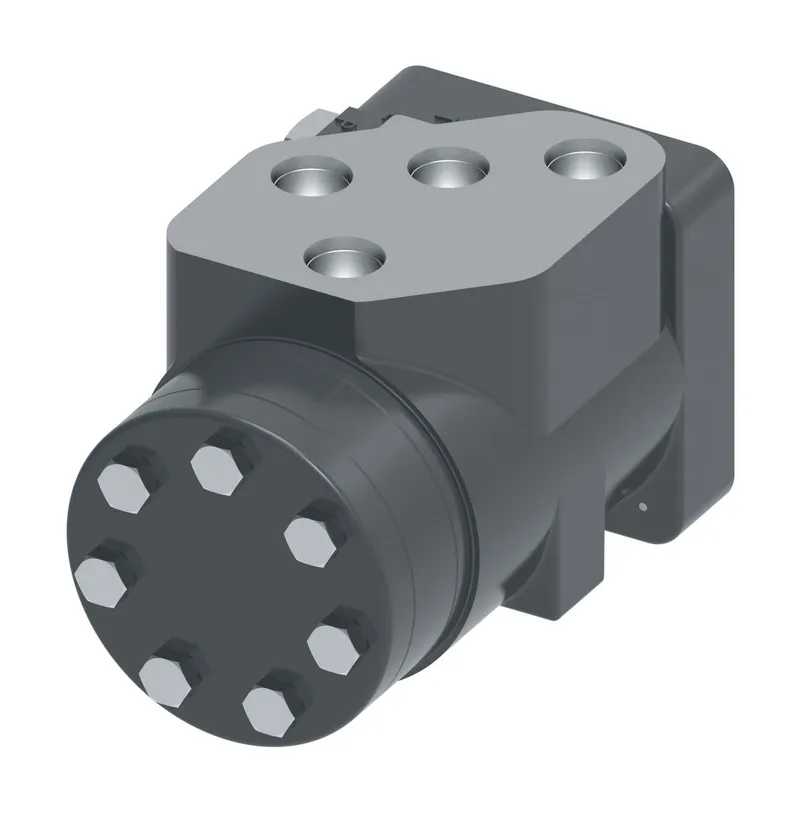

SERIES 5 100 PBN STEERING UNIT
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Hydraulic steering units |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 291-5190-003 be shipped?
291-5190-003 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 291-5190-003 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 291-5190-003 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 291-5190-003, subject to availability and destination.
Danfoss SERIES 5 100 PBN STEERING UNIT, manufacturer part number 291-5190-003. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Additonal ports | 3/8 BSPP EF on port face |
| Additonal Ports | G .375 BSP STRAIGHT THD PORT EXCESS FLOW ONPORT FACE |
| Application | Mobile Equipment |
| Brand | Danfoss |
| Cylinder relief valve setting | 185 BAR [2680 PSI] |
| Cylinder Relief Valve Setting | 185 BAR [2680 PSI] |
| Design code | 3rd Design |
| Displacement | 100 cm3/r [6.10 in3/r] |
| Flow amplification | None |
| Flow Amplification | None |
| Fluid type | Reference bulletin 3-401 |
| Fluid Type | Reference bulletin 3-401 |
| Housing material | Ductile Iron |
| Identification | EATON PRODUCT NUMBER ON NAMEPLATE |
| Inlet or LS relief setting | 110BAR[1600 PSI] |
| Inlet Pressure Rating | 140 BAR [2030 PSI] |
| Input torque | Standard |
| Input Torque | Standard |
| Load circuit | Non reaction |
| Load Circuit | Non reaction |
| Mechanical interface | Internal spline 12t 16/32 dp |
| Mechanical Interface | INTERNAL INVOLUTE SPLINE 12 TOOTH 16/32 DP30 DEGREE PA |
| Mounting threads | Blank portface;4xM10x1.5 Mount |
| Mounting Threads | NONE ON PORT FACE 4X M10 x 1.5-6H ONMOUNTING FACE |
| Neutral circuit | Open center with power beyond |
| Neutral Circuit | Open center with power beyond |
| Nominal flow rating | 11 LPM [3.00 GPM] |
| Nominal Flow Rating | 11 LPM [3.00 GPM] |
| P,T,L, and R port size | 4x 3/8 BSPP; High Port Face |
| P,T,L, AND R PORT SIZE | SIDE PORTED 4X G .375 BSP STRAIGHT THD PORTHIGH PORT FACE |
| PAINTS & PACKAGING | BLACK PAINT |
| Product Series | Series 5 Steering Unit |
| Return pressure rating | 21 BAR [305 PSI] |
| Return Pressure Rating | 21 BAR [305 PSI] |
| Special application options | None |
| Special Application Options | None |
| Special Features | None |
| Valve options | CRV,ACV,IRV,ICV,MSCV |
| Valve Options | CYLINDER RELIEF VALVE ANTI-CAVITATIONVALVE INLET RELIEF VALVE INLET CHECK VALVE MANUAL STEERING CHECK VALVE |
| Working temerature max (°C) | 93.0 |
