Hydraulic steering units Parts
Compare Hydraulic steering units
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Design code | Displacement | Inlet or LS relief setting | Inlet Pressure Rating | Special Features |
|---|---|---|---|---|---|
| 291-5140-003 | 3rd Design | 73.8 cm3/r [4.50 in3/r] | None | 140 BAR [2030 PSI] | None |
| 291-5005-003 | 3rd Design | 73.8 cm3/r [4.50 in3/r] | None | 69 BAR [1000 PSI] | None |

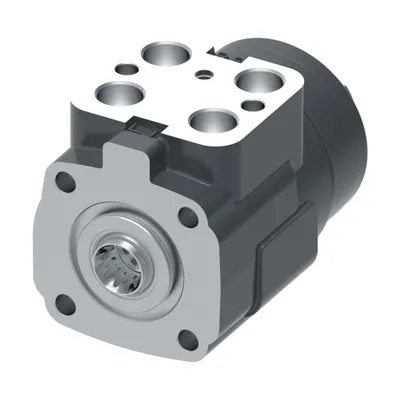

| 291-1296-003 | 3rd Design | 39.5 cm3/r [2.41 in3/r] | 80BAR[1160 PSI] | 103 BAR [1490 PSI] | SEALED STAR |
| 291-1271-003 | 3rd Design | 73.8 cm3/r [4.50 in3/r] | 70BAR[1020 PSI] | 140 BAR [2030 PSI] | None |
| 291-1267-003 | 3rd Design | 100 cm3/r [6.10 in3/r] | 100BAR[1450 PSI] | 140 BAR [2030 PSI] | VITON SEALS PLUGGED STAR |
| 291-1259-003 | 3rd Design | 50.8 cm3/r [3.10 in3/r] | 40BAR[580 PSI] | 69 BAR [1000 PSI] | None |
| 291-1230-002 | 2nd Design | 73.8 cm3/r [4.50 in3/r] | 125BAR[1812 PSI] | 140 BAR [2030 PSI] | LOW SLIP VITON SEALS PLUGGED STAR |
| 291-1227-002 | 2nd Design | 73.8 cm3/r [4.50 in3/r] | 125BAR[1812 PSI] | 140 BAR [2030 PSI] | LOW SLIP VITON SEALS PLUGGED STAR |
| 291-1225-002 | 2nd Design | 73.8 cm3/r [4.50 in3/r] | 125BAR[1812 PSI] | 140 BAR [2030 PSI] | LOW SLIP VITON SEALS PLUGGED STAR |
| 291-1224-002 | 2nd Design | 73.8 cm3/r [4.50 in3/r] | 80BAR[1160 PSI] | 140 BAR [2030 PSI] | LOW SLIP VITON SEALS PLUGGED STAR |
| 291-1198-003 | 3rd Design | 50.8 cm3/r [3.10 in3/r] | 100BAR[1450 PSI] | 140 BAR [2030 PSI] | LOW SLIP VITON SEALS NO SHIPPING PLUGS |
| 291-1131-003 | 3rd Design | 100 cm3/r [6.10 in3/r] | 80BAR[1160 PSI] | 140 BAR [2030 PSI] | None |
Common to all listed parts
| Cylinder Relief Valve Setting | None |
| Flow Amplification | None |
| Fluid Type | Reference bulletin 3-401 |
| Input Torque | Standard |
| Load Circuit | Non reaction |
| PAINTS & PACKAGING | BLACK PAINT |
| Product Series | Series 5 Steering Unit |
| Special Application Options | None |
