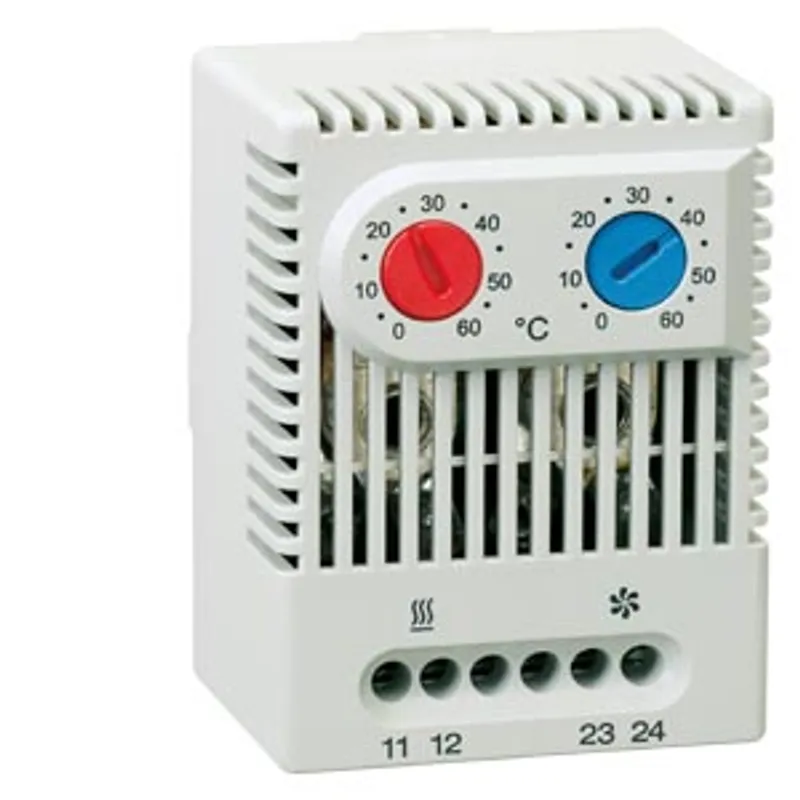

Siemens 8MR2170-1E

Twin thermostat 0 to 60 °C

MPN: 8MR2170-1E
Category: Air-Conditioning

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Siemens 8MR2170-1E?

Twin thermostat 0 to 60 °C

Specifications

Model

product brand name	SIVACON
product designation	twin thermostat
design of the product	NC contact and NO contact
type of sensor	Thermal bimetal
design of the switching function	NC contact and NO contact
design of the switching contact	Snap-action contact

General technical data

mechanical service life (operating cycles) typical	100 000
mounting type	clip for 35 mm DIN rail

Voltage

type of voltage of the operating voltage	AC
inrush current typical	10 A
operating voltage at AC rated value	250 V

Protection class

protection class IP

IP20

Product details

product component — digital display	No
product component — hygrostat	No

Connections

type of connection technology

4-pole terminal, solid wire line 2.5 mm2, stranded wire line with end sleeve 1.5 mm2

Mechanical Design

height	67 mm
width	50 mm
depth	46 mm
fastening method	terminal mounting
mounting position	any
Net Weight	98 g
material of the enclosure	plastic

Environmental conditions

relative humidity reference value	90 %
ambient temperature during operation — minimum	-45 °C
ambient temperature during operation — maximum	80 °C
ambient temperature during storage — minimum	-45 °C
ambient temperature during storage — maximum	80 °C

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet 8MR2170-1EPDF
