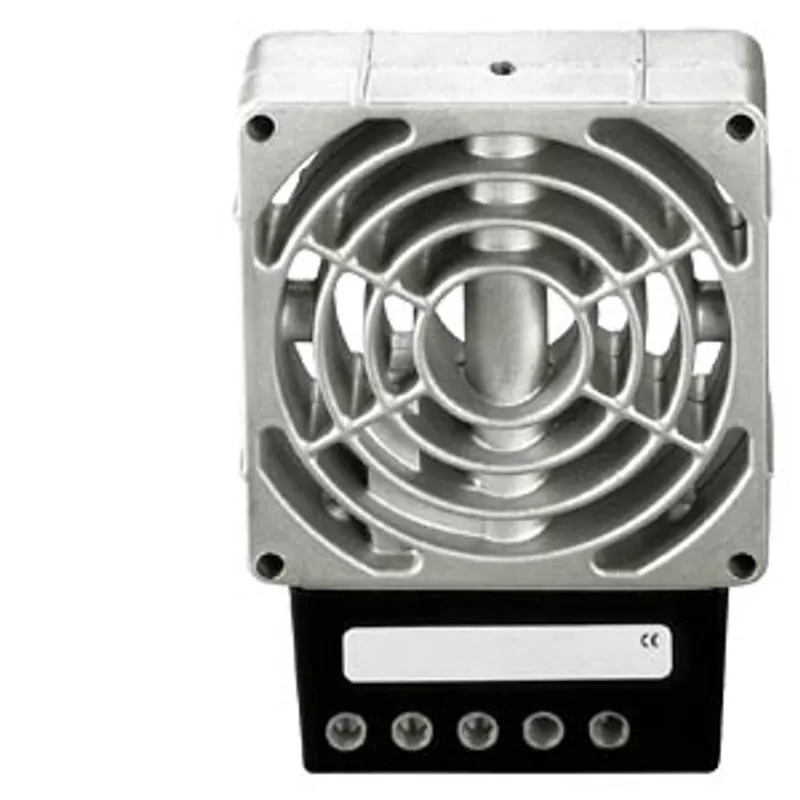

Siemens 8MR2140-4A

Fan heater, Without fan 230V, 400 W; HV031 03112.0-00

MPN: 8MR2140-4A
Category: Air-Conditioning

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Siemens 8MR2140-4A?

fan heater, Without fan 230V, 400 W; HV031 03112.0-00

Specifications

Model

product brand name	SIVACON
product designation	heater unit
design of the product	Without fan

General technical data

consumed active power rated value

475 W

Voltage

type of voltage of the operating voltage	AC
continuous heating power at 20 °C	400 W
operating voltage — rated value minimum	230 V
operating voltage — rated value maximum	230 V
operating voltage — at AC at 50 Hz rated value minimum	230 V
operating voltage — at AC at 50 Hz rated value maximum	230 V
operating voltage — at AC at 60 Hz rated value minimum	230 V
operating voltage — at AC at 60 Hz rated value maximum	230 V

Protection class

protection class IP

IP20

Main circuit

operational current of the slow-blow fuse link

4 A

Product details

product component — blower	No
product component — thermostat	No

Connections

tightening torque with screw-type terminals maximum	0.8 N·m
type of connection technology	3-pole terminal 2.5 mm2

Mechanical Design

height	151 mm
width	119 mm
depth	22 mm
fastening method	Clip for 35 mm DIN rail
mounting position	air flow direction vertical
Net Weight	542 g
material of the enclosure	plastic

Environmental conditions

relative humidity reference value

90 %

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet 8MR2140-4APDF
