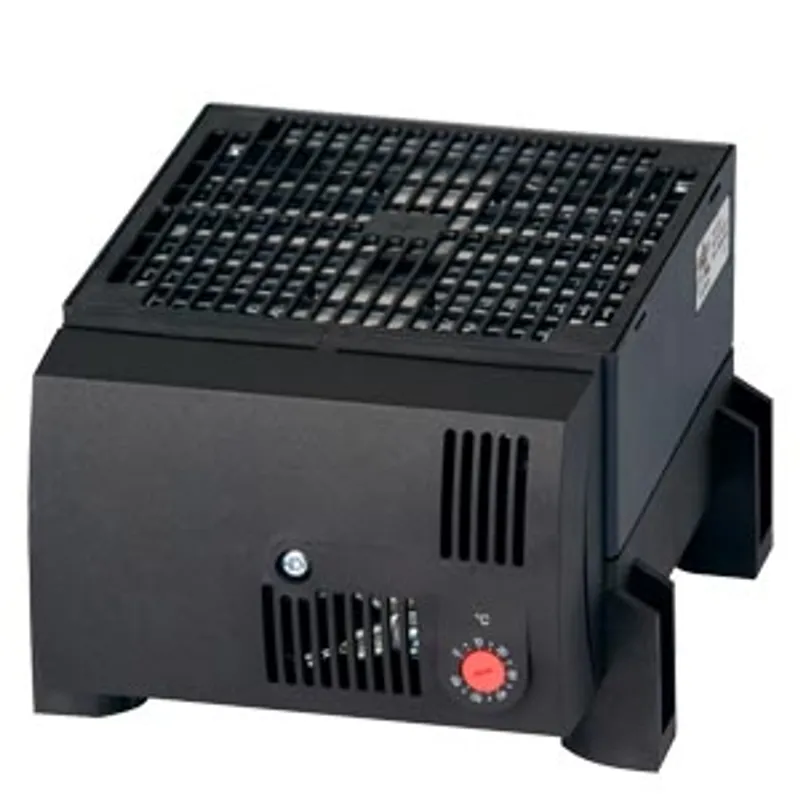

Siemens 8MR2150-0A

230 V / 950WATTS, 0-60 DEGR. CR030, 03051.0-00

MPN: 8MR2150-0A
Category: Air-Conditioning

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Siemens 8MR2150-0A?

230 V / 950WATTS, 0-60 DEGR. CR030, 03051.0-00,

Specifications

Model

product brand name	SIVACON
product designation	heater unit
design of the product	With integrated thermostat

General technical data

consumed active power rated value

475 W

Voltage

type of voltage of the operating voltage	AC
continuous heating power at 20 °C	950 W
operating voltage — rated value minimum	230 V
operating voltage — rated value maximum	230 V
operating voltage — at AC at 50 Hz rated value minimum	230 V
operating voltage — at AC at 50 Hz rated value maximum	230 V
operating voltage — at AC at 60 Hz rated value minimum	230 V
operating voltage — at AC at 60 Hz rated value maximum	230 V

Protection class

protection class IP

IP20

Main circuit

operational current of the slow-blow fuse link

8 A

Adjustable parameters

adjustable temperature — initial value	0 °C
adjustable temperature — full-scale value	60 °C

Product details

product component — blower	Yes
product component — thermostat	Yes

Connections

tightening torque with screw-type terminals maximum	0.8 N·m
type of connection technology	2-pole terminal 2.5 mm2 with strain relief

Mechanical Design

height	168 mm
width	145 mm
depth	100 mm
fastening method	Screw fixing M5
mounting position	air flow direction vertical (air outlet on top)
Net Weight	1.542 kg
material of the enclosure	plastic

Environmental conditions

relative humidity reference value

90 %

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet 8MR2150-0APDF
