Schneider Electric VW3A9805

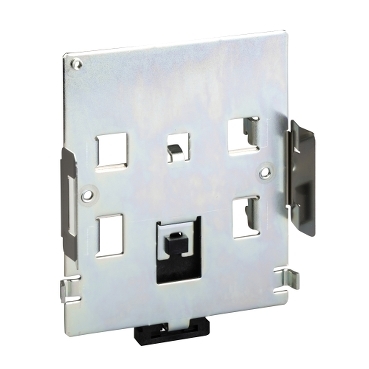

Plate for mounting on symmetrical DIN rail, Altivar, for variable speed drive, size 2C and 2F
- MPN
- VW3A9805
- EAN
- 3606480074868
- Category
- Altivar 12
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric VW3A9805?
This rail DIN kit is an option for variable speed drives of Altivar 12 range. This plate enables the mounting of your variable speed drive on 35mm symmetrical DIN rail. Its dimensions are 105mm wide, 144mm high, and 40mm deep. It weighs 0.385kg. This plate enables the mounting of your variable speed drive on 35mm symmetrical DIN rail. It is compatible with Altivar 12, Altivar 312 and Altivar Machine AT320. The ATV12 range meets basic machine requirements united with simplicity.
Specifications
Specifications
| Range of product | Altivar |
| Accessory / separate part category | Mounting and fixing accessories |
| Accessory / separate part type | Mounting plate |
| Product compatibility | ATV12HU15M2, ATV12H075F1, ATV12HU15M3, ATV12HU22M2, ATV12HU22M3, ATV312H037N4, ATV312H055N4, ATV312H075N4, ATV312H075S6, ATV312HU11M2, ATV312HU11M3, ATV312HU11N4, ATV312HU15M2, ATV312HU15M3, ATV312HU15N4, ATV312HU15S6, ATV312HU22M3, Variable speed drive ATV320...C at 1.1 kW, 200...240 V, single phase, Variable speed drive ATV320...C at 1.5 kW, 200...240 V, single phase, Variable speed drive ATV320...C at 2.2 kW, 200...240 V, single phase, Variable speed drive ATV320...C at 0.37 kW, 380...500 V, three phase, Variable speed drive ATV320...C at 0.55 kW, 380...500 V, three phase, Variable speed drive ATV320...C at 0.75 kW, 380...500 V, three phase, Variable speed drive ATV320...C at 1.1 kW, 380...500 V, three phase, Variable speed drive ATV320...C at 1.5 kW, 380...500 V, three phase, Variable speed drive ATV320...C at 0.75 kW, 525...600 V, three phase, Variable speed drive ATV320...C at 1.5 kW, 525...600 V, three phase |
| Accessory / separate part destination | Variable speed drive |
| Range compatibility | Altivar 312, Altivar 12, Altivar 312 Solar, Altivar Machine ATV320 |
| Mounting support | 35 mm symmetrical DIN rail |
| Net weight | 0.385 kg |
Packaging
| Package 1 | 1 PCE, 23.000 cm × 17.400 cm × 7.200 cm (L × W × H), 373.000 g |
| Package 2 | 7 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 3.413 kg |
| Package 3 | 50 S06, 80.000 cm × 60.000 cm × 75.000 cm (L × W × H), 35.900 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
VW3A9805: frequently asked questions
When can VW3A9805 be shipped?
VW3A9805 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up VW3A9805 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for VW3A9805 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for VW3A9805, subject to availability and destination.
