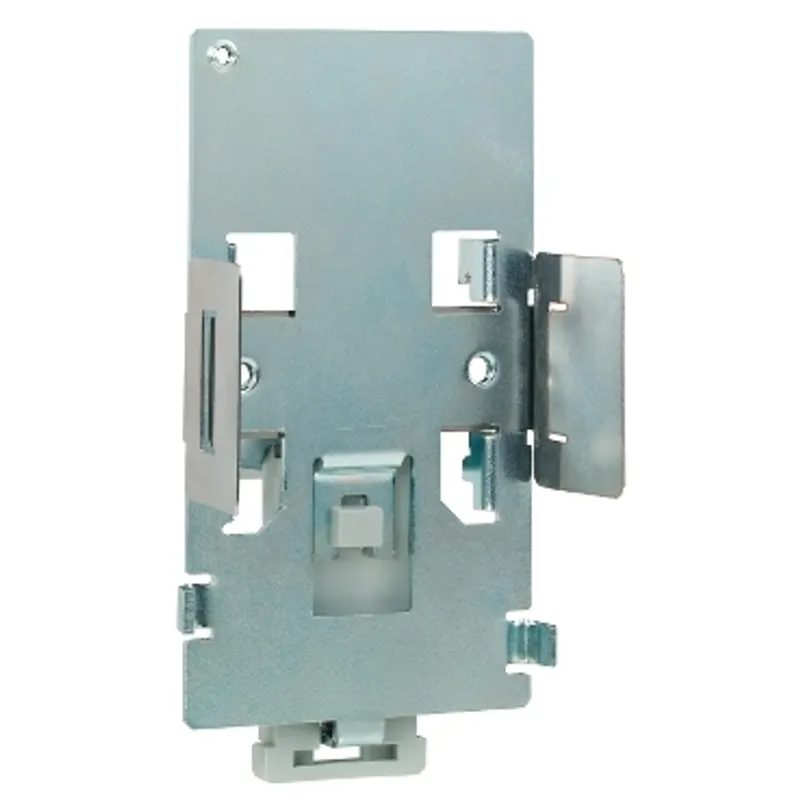

Schneider Electric VW3A9804
Plate for mounting on symmetrical DIN rail, Altivar, for variable speed drive, size 1
- MPN
- VW3A9804
- EAN
- 3606480074851
- Category
- Altivar 12
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric VW3A9804?
This rail DIN kit is an option for variable speed drives of Altivar 12 range. This plate enables the mounting of your variable speed drive on 35mm wide symmetrical DIN rail. Its dimensions are 77.5mm wide, 143.6mm high, and 37.9mm deep. It weighs 0.290kg. This plate enables the mounting of your variable speed drive on 35mm wide symmetrical DIN rail. It is compatible with Altivar 12, Altivar 312 and Altivar Machine AT320. The ATV12 range meets basic machine requirements united with simplicity.
Specifications
Specifications
| Range of product | Altivar |
| Accessory / separate part category | Mounting and fixing accessories |
| Accessory / separate part type | Mounting plate |
| Product compatibility | ATV12H018F1, ATV12H018M2, ATV12H018M3, ATV12H037F1, ATV12H037M2, ATV12H037M3, ATV12H055M2, ATV12H075M2, ATV12H075M3, ATV12HU15M2, ATV312H018M2, ATV312H018M3, ATV312H037M2, ATV312H037M3, ATV312H055M2, ATV312H075M2, ATV312H075M3, Variable speed drive ATV320...C at 0.18 kW, 200...240 V, single phase, Variable speed drive ATV320...C at 0.37 kW, 200...240 V, single phase, Variable speed drive ATV320...C at 0.55 kW, 200...240 V, single phase, Variable speed drive ATV320...C at 0.75 kW, 200...240 V, single phase |
| Accessory / separate part destination | Variable speed drive |
| Range compatibility | Altivar 312 Solar, Altivar 12, Altivar 312, Altivar Machine ATV320 |
| Mounting support | 35 mm symmetrical DIN rail |
Packaging
| Package 1 | 1 PCE, 23.000 cm × 17.000 cm × 7.100 cm (L × W × H), 316.000 g |
| Package 2 | 50 S06, 80.000 cm × 60.000 cm × 75.000 cm (L × W × H), 30.000 kg |
