ATV12PU30M3Variable speed drive ATV12 - 3kW - 3 hp - 3ph - 200..240V - on base plate
Altivar 12 Parts
Schneider Electric
ATV12PU40M3Variable speed drive ATV12 - 4kW - 5hp - 3ph - 200..240V - on base plate
Schneider Electric
ATV12PU22M3Variable speed drive ATV12 - 2.2kW - 3hp - 200..240V - 3ph - on base plate
Schneider Electric
ATV12PU15M3Variable speed drive ATV12 - 1.5kW - 2hp - 200..240V - 3ph - on base plate
Schneider Electric
ATV12P075M3Variable speed drive ATV12 - 0.75kW - 1hp - 200..240V - 3ph - on base plate
Schneider Electric

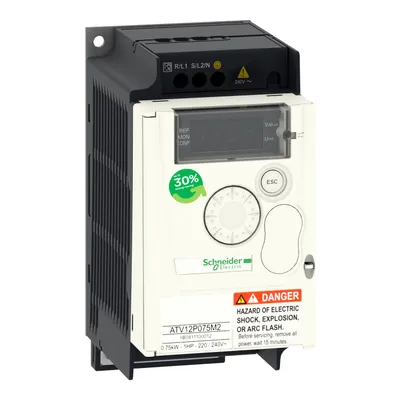

ATV12P075M2Variable speed drive ATV12 - 0.75kW - 1hp - 200..240V - 1ph - on base plate
Schneider Electric
ATV12P055M2Variable speed drive ATV12 - 0.55 kW - 0.75hp - 200..240V - 1ph - on base plate
Schneider Electric
ATV12P037M3Variable speed drive ATV12 - 0.37kW - 0.55hp - 200..240V - 3ph - on base plate
Schneider Electric
ATV12P037M2Variable speed drive ATV12 - 0.37kW - 0.55hp - 200..240V - 1ph - on base plate
Schneider Electric
ATV12P037F1Variable speed drive ATV12 - 0.37kW - 0.55hp - 100..120V - 1ph - on base plate
Schneider Electric
ATV12HU40M3Variable speed drive ATV12 - 4kW - 5hp - 200..240V - 3ph - with heat sink
Schneider Electric
ATV12HU22M3Variable speed drive ATV12 - 2.2kW - 3hp - 200..240V - 3ph - with heat sink
Schneider Electric
ATV12HU22M2TQVariable speed drive ATV12 -2.2kW -3hp -200..240V - 1ph - w heat sink - lot of 7
Schneider Electric
ATV12HU22M2Variable speed drive ATV12 - 2.2kW - 3hp - 200..240V - 1ph - with heat sink
Schneider Electric
ATV12HU15M2TQVariable speed drive ATV12 -1.5kW -2hp - 200..240V - 1ph - w heat sink- lot of 7
Schneider Electric
ATV12HU15M3Variable speed drive ATV12 - 1.5kW - 2hp - 200..240V - 3ph - with heat sink
Schneider Electric
ATV12HU15M2Variable speed drive ATV12 - 1.5kW - 2hp - 200..240V - 1ph - with heat sink
Schneider Electric
ATV12H075M3Variable speed drive ATV12 - 0.75kW - 1hp - 200..240V - 3ph - with heat sink
Schneider Electric
ATV12H075M2TQVariable speed drive ATV12 - 0.75kW -1hp -200..240V -1ph -w heat sink-lot of 14
Schneider Electric
ATV12H075M2Variable speed drive ATV12 - 0.75kW - 1hp - 200..240V - 1ph - with heat sink
Schneider Electric
ATV12H055M2TQVariable speed driveATV12 -0.55kW -0.75hp -200..240V -1ph -w heat sink-lot of 14
Schneider Electric
ATV12H075F1Variable speed drive ATV12 - 0.75kW - 1hp - 100..120V - 1ph - with heat sink
Schneider Electric
ATV12H037M3Variable speed drive ATV12 - 0.37kW - 0.55hp - 200..240V - 3ph - with heat sink
Compare Altivar 12
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | nominal output current | Maximum input current | Apparent power | Power dissipation in W | Net weight |
|---|---|---|---|---|---|
| ATV12PU30M3 | 12.2 A | 15.9 A | 6.6 kVA at 240 V (heavy duty) | Natural: 94.0 W | 1.6 kg |
| ATV12PU40M3 | 16.7 A | 19.9 A | 8.3 kVA at 240 V (heavy duty) | Natural: 128.0 W | 1.6 kg |
| ATV12PU22M3 | 10 A | 12.5 A | 5.2 kVA at 240 V (heavy duty) | Natural: 85.0 W | 1 kg |
| ATV12PU15M3 | 7.5 A | 9.3 A | 3.9 kVA at 240 V (heavy duty) | Natural: 73.0 W | 1 kg |
| ATV12P075M3 | 4.2 A | 5.3 A | 2.2 kVA at 240 V (heavy duty) | Natural: 41.0 W | 0.7 kg |
| ATV12P075M2 | 4.2 A | 8.5 A | 2.0 kVA at 240 V (heavy duty) | Natural: 44.0 W | 0.7 kg |
| ATV12P055M2 | 3.5 A | 6.7 A | 1.6 kVA at 240 V (heavy duty) | Natural: 34.0 W | 0.7 kg |
| ATV12P037M3 | 2.4 A | 3.0 A | 1.2 kVA at 240 V (heavy duty) | Natural: 24.0 W | 0.7 kg |
| ATV12P037M2 | 2.4 A | 4.9 A | 1.2 kVA at 240 V (heavy duty) | Natural: 27.0 W | 0.7 kg |
| ATV12P037F1 | 2.4 A | 9.3 A | 1.1 kVA at 240 V (heavy duty) | Natural: 29.0 W | 0.7 kg |
| ATV12HU40M3 | 16.7 A | 19.9 A | 8.3 kVA at 240 V (heavy duty) | Forced cooling: 128.0 W | 2 kg |
| ATV12HU30M3 | 12.2 A | 15.9 A | 6.6 kVA at 240 V (heavy duty) | Forced cooling: 94.0 W | 2 kg |
| ATV12HU22M3 | 10 A | 12.5 A | 5.2 kVA at 240 V (heavy duty) | Forced cooling: 85.0 W | 1.2 kg |
| ATV12HU22M2TQ | 10 A | 20.2 A | 4.8 kVA at 240 V (heavy duty) | Forced cooling: 93.0 W | 1.4 kg |
| ATV12HU22M2 | 10 A | 20.2 A | 4.8 kVA at 240 V (heavy duty) | Forced cooling: 93.0 W | 1.4 kg |
| ATV12HU15M2TQ | 7.5 A | 14.9 A | 3.6 kVA at 240 V (heavy duty) | Forced cooling: 72.0 W | 1.4 kg |
| ATV12HU15M3 | 7.5 A | 9.3 A | 3.9 kVA at 240 V (heavy duty) | Forced cooling: 73.0 W | 1.2 kg |
| ATV12HU15M2 | 7.5 A | 14.9 A | 3.6 kVA at 240 V (heavy duty) | Forced cooling: 72.0 W | 1.4 kg |
| ATV12H075M3 | 4.2 A | 5.3 A | 2.2 kVA at 240 V (heavy duty) | Natural: 41.0 W | 0.8 kg |
| ATV12H075M2TQ | 4.2 A | 8.5 A | 2.0 kVA at 240 V (heavy duty) | Natural: 44.0 W | 0.8 kg |
| ATV12H075M2 | 4.2 A | 8.5 A | 2.0 kVA at 240 V (heavy duty) | Natural: 44.0 W | 0.8 kg |
| ATV12H055M2TQ | 3.5 A | 6.7 A | 1.6 kVA at 240 V (heavy duty) | Natural: 34.0 W | 0.8 kg |
| ATV12H075F1 | 4.2 A | 15.7 A | 1.9 kVA at 240 V (heavy duty) | Forced cooling: 48.0 W | 1.3 kg |
| ATV12H037M3 | 2.4 A | 3.0 A | 1.2 kVA at 240 V (heavy duty) | Natural: 24.0 W | 0.8 kg |
Common to all listed parts
| Range of product | Altivar 12 |
| Product or component type | Variable speed drive |
| Product specific application | Simple machine |
| Mounting mode | Cabinet mount |
| Communication port protocol | Modbus |
| Supply frequency | 50/60 Hz +/- 5 % |
| IP degree of protection | IP20 |
| Discrete input number | 4 |
