Schneider Electric VW3A3807

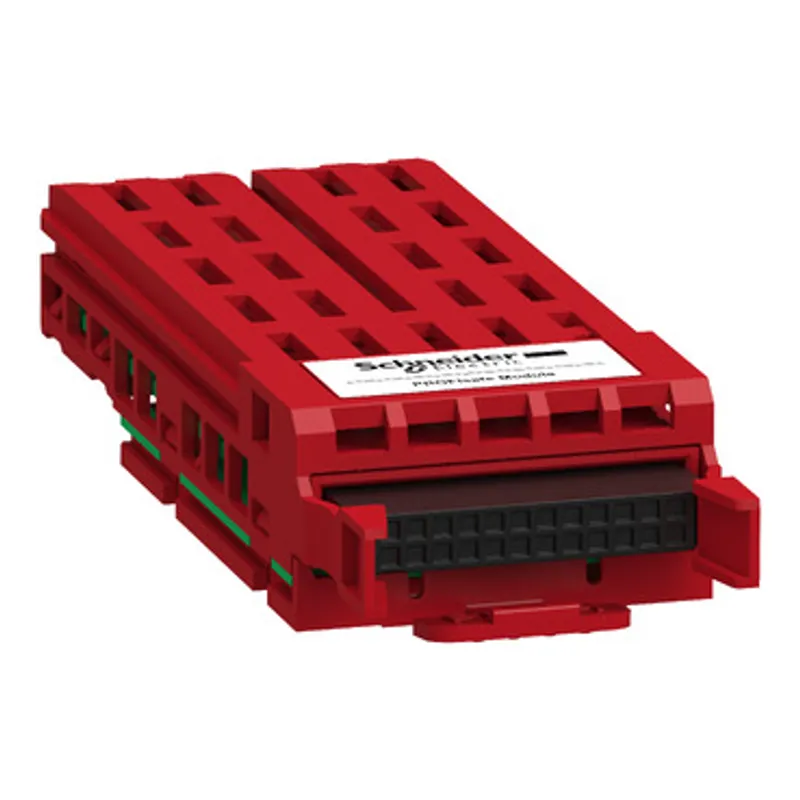

PROFIsafe module, Altivar Process ATV900, Altivar 340, for variable speed drives
- MPN
- VW3A3807
- EAN
- 3606482067875
- Category
- Altivar Process ATV900
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric VW3A3807?
This safety module is an option for variable speed drives of Altivar range. It provides a fail-safe Ethernet connection between the drive and a Safey PLC using the PROFIsafe protocol over PROFINET. It is compatible with Altivar Machine ATV340 and Altivar Process ATV900 drives. It includes the Safe Torque Off (STO), Safe Stop 1 (SS1), Safe Limited Speed (SLS), and Safe Maximum Speed (SMS) functions It weights 0,150kg (0,331lb). Altivar Process drives include numerous advanced functions for the more complex applications in each market segment, the safety functions are provided to help protect people and equipment. The safety functions are compliant with the IEC/EN 61800-5-2 standard and the module is TUV NORD certified. Refer to the documentation for proper connection to ensure PROFIsafe functionality. Ideal for segments such as Mining & Metals, Energy & Chemicals, and Consumer Packaged Goods, with a power range from 0.75kW to 2600kW.
Specifications
Specifications
| Range of product | Altivar Process ATV900 |
| Product or component type | Safety module |
| Product specific application | Material working, Material handling, Architecture without suspended/vertical or pulling loads |
| Safety function | STO (safe torque off), SS1 (safe stop 1), SLS (safe limited speed), SMS (safe maximum speed) |
| Mounting support | Integrated in drive |
| Net weight | 0.02 kg |
| Width | 41 mm |
| Height | 109 mm |
| Depth | 23.25 mm |
| Standards | EN 61800-5-2 |
Packaging
| Package 1 | 1 PCE, 19.000 cm × 13.200 cm × 6.800 cm (L × W × H), 165.000 g |
| Package 2 | 16 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 3.283 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
VW3A3807: frequently asked questions
When can VW3A3807 be shipped?
VW3A3807 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up VW3A3807 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for VW3A3807 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for VW3A3807, subject to availability and destination.
