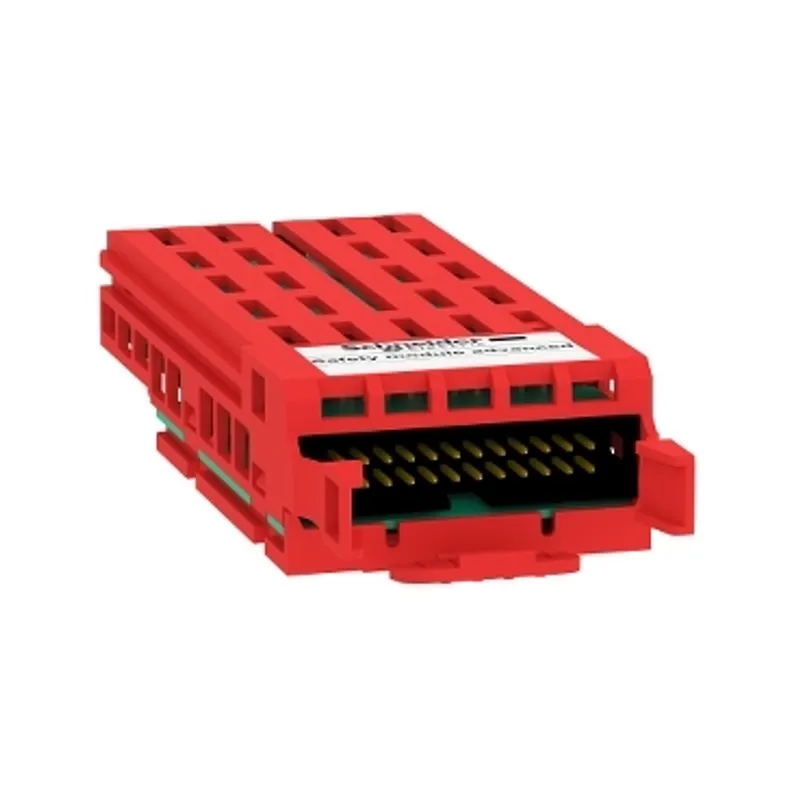

Schneider Electric VW3A3802
Safety module advanced electronic card, Altivar, 24V DC
- MPN
- VW3A3802
- EAN
- 3606485441245
- Category
- Altivar Process ATV900
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric VW3A3802?
"This safety module advanced electronic card is an option for Altivar variable speed drives." "This module allows variable speed drives to access additional Safety functions." "This creates a complex functional Safety device that helps to provide installation monitoring." "It features Safe Stop 1 (SS1), Safe Limited Speed (SLS), and Safe Brake Control (SBC) Safety functions compliant with standard IEC/EN 61800-5-2." "In addition, the Safety Module Advanced includes two additional Safety functions: Safe Maximum Speed (SMS) and Guard Door Locking (GDL)." "Its color is red." "The Safety Module Advanced optimizes the overall cost of the installation by avoiding the need for additional external devices, while conforming to international safety standards." "Safe Stop 1 (SS1), Safe Limited Speed (SLS), and Safe Brake Control (SBC) Safety functions are compliant with standard IEC/EN 61800-5-2." "The Altivar Process Modular offer is designed for easy and cost-effective integration of power-intensive drives into cabinets."
Specifications
Specifications
| Range of product | Altivar Process ATV900, Altivar Machine ATV340 |
| Product or component type | Safety module |
| Product specific application | Material working, Material handling, Architecture without suspended/vertical or pulling loads |
| Safety function | SS1 (safe stop 1), SLS (safe limited speed), SMS (safe maximum speed), SBC (safe brake control) |
| Rated voltage | 24 V DC - 15...20 % |
| Output voltage | 24 V DC |
| Input current | <= 20 mA without load |
| Maximum switching current | 0.5 A |
| Maximum voltage drop | <1 V at 0.5 A |
| Residual ripple | < 5 % |
| Inductive load | 15 H for for 100 mA, 0.6 H for for 500 mA |
| Maximum load capacitance | 1 µF |
| Mounting support | Integrated in drive |
| Standards | IEC/EN 61800-5-2 |
Packaging
| Package 1 | 1 PCE, 19.000 cm × 13.000 cm × 6.800 cm (L × W × H), 223.000 g |
| Package 2 | 16 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 4.477 kg |
