Schneider Electric
VCFN32GEEnclosed switch disconnector,TeSys Control,for ON/emergency stop,25A,IP65,compact size

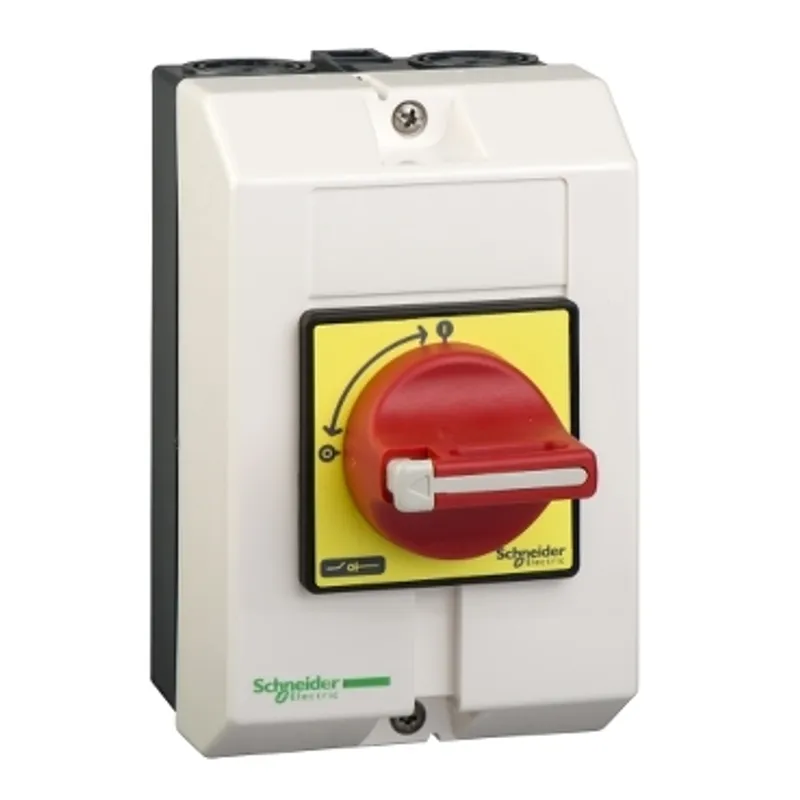

Schneider Electric VCFXGE4
Empty enclosure,TeSys Control,red padlockable handle operator and yellow front plate,IP65,for V02-V2
- MPN
- VCFXGE4
- EAN
- 3389110652369
- Category
- TeSys Vario
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric VCFXGE4?
TeSys enclosed starters, empty enclosure for mounting a switch disconnector for main switching in motor applications up to 15kW@400V AC-23. Enclosure providing IP65 protection, fitted with a red rotary handle and yellow front plate, padlockable (padlocks not included). to be equipped with a Vario switch body V02-V2 (to be ordered separately), with 4 possible add-on module attachments Surface mounting enclosure with screw fixing, 2 knock-outs for cable glands on top and bottom, sealable cover. It conforms to IEC 60947-4-1, Green Premium compliant (RoHS/REACh).
Specifications
Specifications
| Range | TeSys |
| Device short name | VCFX |
| Product or component type | Enclosure |
| Product compatibility | V02...V2 |
| Handle colour | Red |
| Handle front plate colour | Yellow |
| Rotary handle padlocking | With |
| [Ithe] conventional enclosed thermal current | 10 A, 20 A, 25 A, 16 A, 32 A |
| Environmental characteristic | Standard environment |
| Height | 180 mm |
| Width | 157 mm |
| Depth | 152 mm |
| Net weight | 0.66 kg |
| IP degree of protection | IP65 |
Packaging
| Package 1 | 1 PCE, 20.500 cm × 16.500 cm × 16.500 cm (L × W × H), 677.000 g |
| Package 2 | 6 S04, 60.000 cm × 40.000 cm × 30.000 cm (L × W × H), 4.770 kg |
| Package 3 | 24 P06, 80.000 cm × 60.000 cm × 75.000 cm (L × W × H), 29.276 kg |
