Schneider Electric VCFXGE2

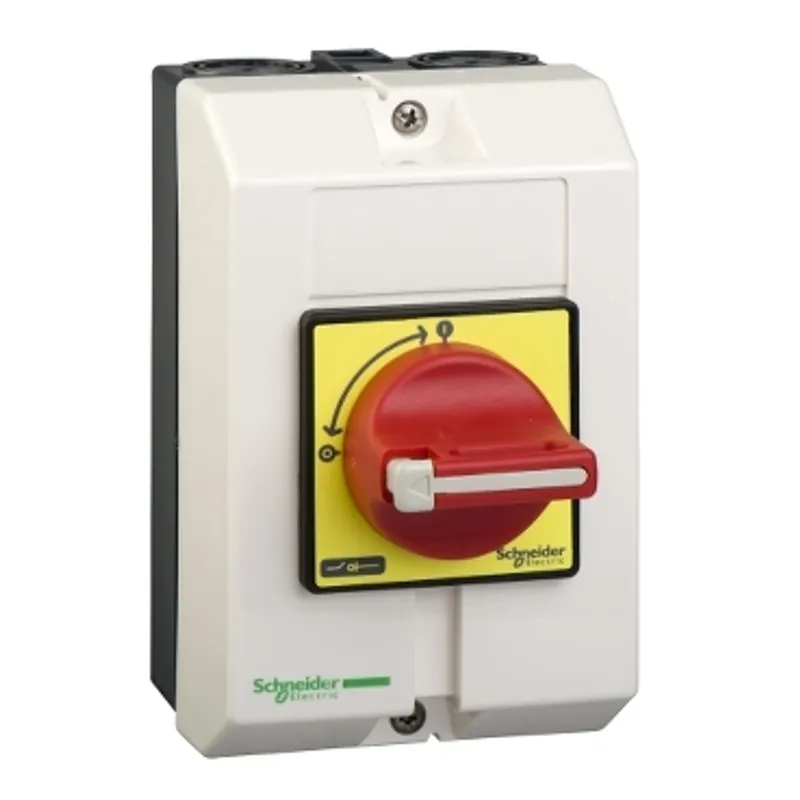

Empty enclosure,TeSys Control,red padlockable handle operator and yellow front plate,IP65,for V3/V4
- MPN
- VCFXGE2
- EAN
- 3389110602869
- Category
- TeSys Vario
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric VCFXGE2?
TeSys enclosed starters, empty enclosure for mounting a switch disconnector, for main switching in motor applications AC-23 up to 30kW@400V. Enclosure providing IP65 protection, fitted with a red rotary handle and yellow front plate, padlockable (padlocks not included). to be equipped with a Vario switch body V3-V4 (to be ordered separately), with 3 possible add-on module attachments. Surface mounting enclosure with screw fixing, 2 knock-outs for cable glands on top and bottom, sealable cover. It conforms to IEC 60947-4-1, Green Premium compliant (RoHS/REACh).
Specifications
Specifications
| Range | TeSys |
| Device short name | VCFX |
| Product or component type | Enclosure |
| Product compatibility | V3, V4 |
| Handle colour | Red |
| Handle front plate colour | Yellow |
| Rotary handle padlocking | With |
| [Ithe] conventional enclosed thermal current | 63 A, 50 A |
| Environmental characteristic | Standard environment |
| Height | 180 mm |
| Width | 157 mm |
| Depth | 152 mm |
| Net weight | 0.66 kg |
| IP degree of protection | IP65 |
Packaging
| Package 1 | 1 PCE, 20.500 cm × 20.000 cm × 17.500 cm (L × W × H), 675.000 g |
| Package 2 | 6 S04, 60.000 cm × 40.000 cm × 30.000 cm (L × W × H), 4.816 kg |
| Package 3 | 24 P06, 80.000 cm × 60.000 cm × 75.000 cm (L × W × H), 29.708 kg |
