Schneider Electric VCFXGE1

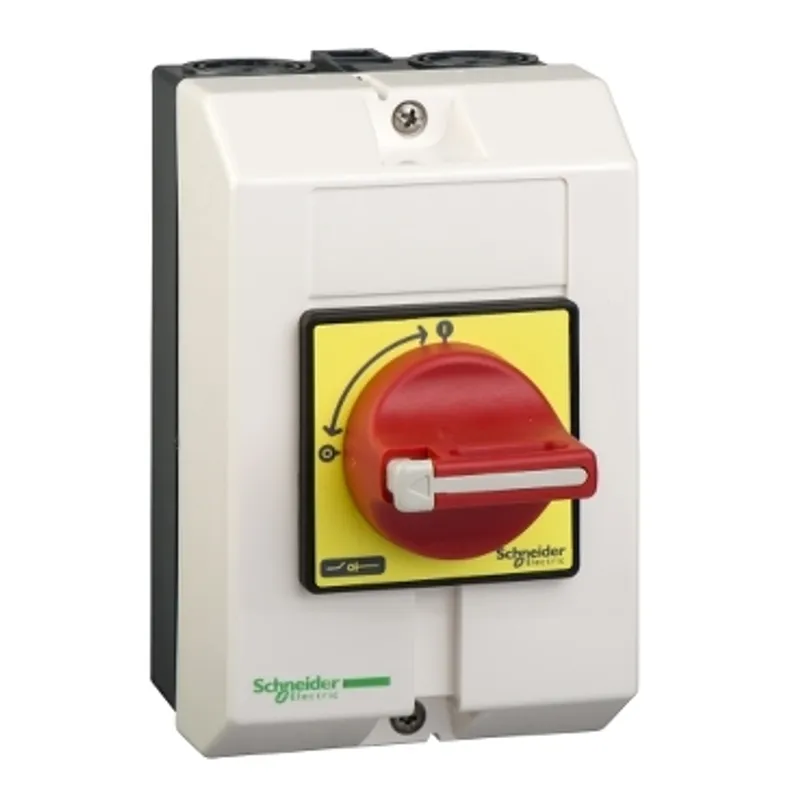

Empty enclosure,TeSys Control,red padlockable handle operator and yellow front plate,IP65,for VN12/VN20/V02-V2
- MPN
- VCFXGE1
- EAN
- 3389110602883
- Category
- TeSys Vario
Price and lead time confirmed within 1 business day
Discontinued by Schneider Electric — we can still source the original VCFXGE1 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric VCFXGE1?
TeSys enclosed starters, empty enclosure for mounting a switch disconnector for main switching in motor applications up to 15kW@400V AC-23. Enclosure providing IP65 protection, fitted with a red rotary handle and yellow front plate, padlockable (padlocks not included). to be equipped with a Vario switch body VN12-VN20 or V02-V2 (to be ordered separately), with 2 possible add-on module attachments Surface mounting enclosure with screw fixing, 2 knock-outs for cable glands on top and bottom, sealable cover. It conforms to IEC 60947-4-1, Green Premium compliant (RoHS/REACh).
Specifications
Specifications
| Range | TeSys |
| Device short name | VCFX |
| Product or component type | Enclosure |
| Product compatibility | VN12, VN20, V02...V2 |
| Handle colour | Red |
| Handle front plate colour | Yellow |
| Rotary handle padlocking | With |
| [Ithe] conventional enclosed thermal current | 25 A, 10 A, 20 A, 16 A, 32 A |
| Environmental characteristic | Standard environment |
| Height | 146 mm |
| Width | 90 mm |
| Depth | 131 mm |
| Net weight | 0.34 kg |
| IP degree of protection | IP65 |
Packaging
| Package 1 | 1 PCE, 16.000 cm × 11.000 cm × 14.500 cm (L × W × H), 369.000 g |
| Package 2 | 7 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 2.930 kg |
| Package 3 | 56 P06, 80.000 cm × 60.000 cm × 75.000 cm (L × W × H), 33.468 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
VCFXGE1: frequently asked questions
Can I still buy the VCFXGE1 now that it is discontinued?
Yes. Schneider Electric has discontinued the VCFXGE1, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can VCFXGE1 be shipped?
VCFXGE1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up VCFXGE1 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for VCFXGE1 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for VCFXGE1, subject to availability and destination.
