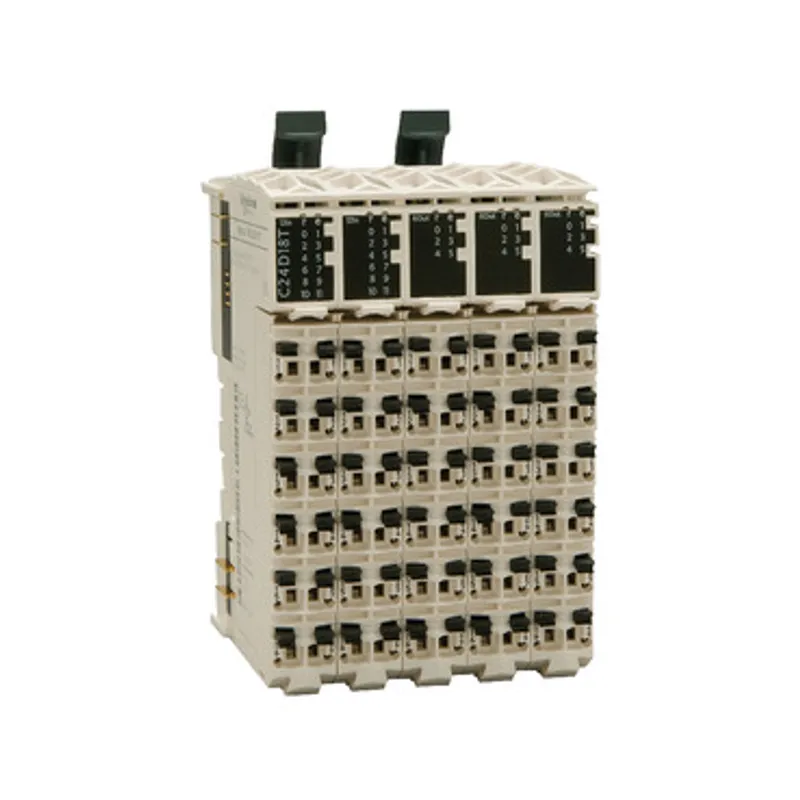

compact I/O expansion block, Modicon TM5, 36 IO, 24 DI, 12 DO relay

This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. This compact I/O expansion block features 24 discrete inputs with sink logic and 12 discrete relay outputs with sink/source logic. It is an expansion block with 2 module(s) x 12 digital input with input voltage of 24V DC and 2 module(s) x 6 relay output with voltage of 30V DC, 240V AC. There is an isolation between 500Vrms AC insulation between channel and bus, no insulation between channels. It is furnished with removable spring terminal block for electrical connection. It is an IP20 rated product. The enclosure is made of white plastic. It weighs 0.37kg. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by GOST-R, C-Tick, cULus and CSA. It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards. This product is compatible with Modicon LMC058 motion controller and Modicon M258 logic controller. It is installed by mounting on a 35mm DIN rail. This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers. Flexible and scalable, designed for complex machines.

Specifications
