Modicon TM5 IP20 modular I/O system Parts

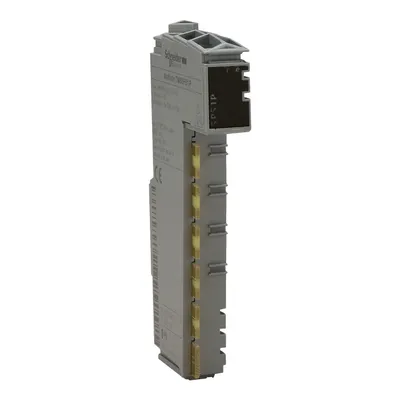

Power distribution module

Digital output module - 4O - 30V DC/230V AC - 5A - relay - 4 C/O - quantity 4

Common distribution module - 5 x 0 V DC - 5 x 24 V DC

Communication module - RS232 - max 115.2 kbit/s

Safety digital output module - 2O - 24V DC - 2A

Digital output module - 2O - 24V DC - 0,5A - 3 wires

Digital output module - 2O - 100..240V AC - 1A - 3 wires

Digital input module - 6I - 100..120V AC - 1 wire

Digital input module - 2I - 24V DC sink - 3 wires

Digital input module - 2I - 100..240V AC - 3 wires

Modbus/ASCII serial link - PCI communication module - RS485

Modbus/ASCII serial link - PCI communication module - RS232

Profibus DP slave link - PCI communication module

Controller system, Modicon TM5, Safe logic CPU plus, SERCOS III interface, 80 nodes

Compact I/O expansion block TM5 - 8 AI - 8 AO - 4-20 mA - 12 bits

Safe logic controller - CPU standard - SERCOS III interface - 20 nodes

Compact I/O expansion block TM5 - 8 AI - 8 AO - 0-10 V -12 bits

Compact I/O expansion block TM5 - 8 AI - 8 AO - 0-10 V - 4-20 mA - 12 bits

Compact I/O expansion block TM5 - 24 I/0 - 12 DI - 6 DO transistor - 4 AI - 2 AO

Terminal block - 12 contacts - black - quantity 10

Terminal block - 6 contacts - white - quantity 10

Labelling insert tool for label tabs

White plastic identifier

Red plastic identifier
