Schneider Electric TM5C12D8T

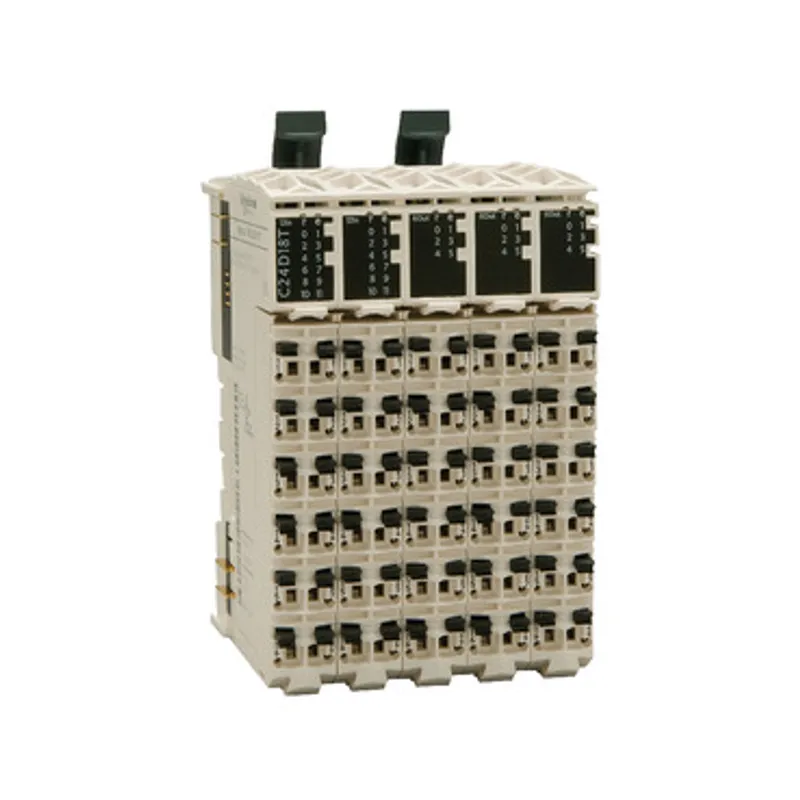

Compact IO expansion block, Modicon TM5, 20 IO, 12 DI, 8 DO, transistor
- MPN
- TM5C12D8T
- EAN
- 3595864074368
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric TM5C12D8T?
This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. This compact I/O expansion block features 12 discrete inputs with sink logic and 8 discrete transistor outputs with source logic. It is an expansion block with 3 module(s) x 4 digital input with input voltage of 24V DC and 2 module(s) x 4 digital output. There is an isolation between 500Vrms AC insulation between channel and bus, no insulation between channels. It is furnished with removable spring terminal block for electrical connection. It is an IP20 rated product. The enclosure is made of white plastic. It weighs 0.37kg. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by GOST-R, C-Tick, cULus and CSA. It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards. This product is compatible with Modicon LMC058 motion controller and Modicon M258 logic controller. It is installed by mounting on a 35mm DIN rail. This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers. Flexible and scalable, designed for complex machines.
Specifications
Specifications
| Range of product | Modicon TM5 |
| Product or component type | Compact I/O expansion block |
| Discrete input number | 12 at 24 V DC |
| Discrete input voltage | 24 V DC (voltage limits: 20.4...28.8 V) |
| Discrete input logic | Sink |
| Discrete output number | 8 transistor at 24 V DC |
| Discrete output logic | Source |
| Discrete output voltage | 24 V DC (20.4...28.8 V) |
| Enclosure material | Plastic |
| Colour | White |
| Input/output number | 20 |
| Input/output number of splitter box | 12 I + 8 O |
| Number of modules | Digital input: 3 module(s) x 4, Digital output: 2 module(s) x 4 |
| Discrete output function | 1 NO |
| Response time | <= 300 µs from state 0 to state 1 for output, <= 300 µs from state 1 to state 0 for output |
| Minimum switching current | 10 mA at 5 V DC |
| Max current | 1000 mA sensor supply, 1500 mA actuator supply, 4000 mA loads on I/O power segment |
| Sensor power supply | 24 V, 500 mA for all channels with overload, short-circuit and reverse polarity protection |
| Discrete input current | 3.75 mA at 24 V DC |
| Voltage state 1 guaranteed | >= 15 V |
| Voltage state 0 guaranteed | <= 5 V |
| Input impedance | 6.4 kOhm |
| Input filtering | <= 100 ms hardware, <= 25 ms configurable by software |
| Discrete output current | 0.5 A per output |
| Maximum leakage current | 5 µA when switched off |
| Maximum voltage drop | <0.3 V at 500 mA for output |
| Typical current consumption | 68 mA at 5 V DC, 80 mA at 24 V DC for inputs/outputs |
| Electrical connection | Removable spring terminal block |
| Power dissipation in W | 2.36 W |
| Isolation between channels | None |
| Isolation between channels and bus | 500 Vrms AC |
| Local signalling | 5 LEDs (green) for power supply, 5 LEDs (red) for power supply, 12 LEDs (green) for input status, 8 LEDs (yellow) for output status |
| Mounting support | DIN rail |
| Height | 99 mm |
| Width | 12.5 mm |
| Depth | 75 mm |
| Net weight | 0.24 kg |
| IP degree of protection | IP20 |
| Marking | CE |
| Product certifications | C-Tick, GOST-R, CSA, CULus |
| Standards | IEC 61131-2, UL 508, CSA C22.2 No 213, CSA C22.2 No 142 |
| Ambient air temperature for operation | -10…50 °C (vertical installation), -10…60 °C (horizontal installation) |
| Ambient air temperature for storage | -40…70 °C |
| Relative humidity | 5…95 % without condensation |
| Operating altitude | 0...2000 m |
| Pollution degree | 2 |
| Vibration resistance | 1 gn (f = 8.4…150 Hz) on DIN rail, 3.5 mm (f = 5…8.4 Hz) on DIN rail |
| Shock resistance | 15 gn for 11 ms |
Packaging
| Package 1 | 1 PCE, 11.000 cm × 9.100 cm × 7.000 cm (L × W × H), 273.000 g |
| Package 2 | 36 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 10.171 kg |
