Schneider Electric STBDDO3705

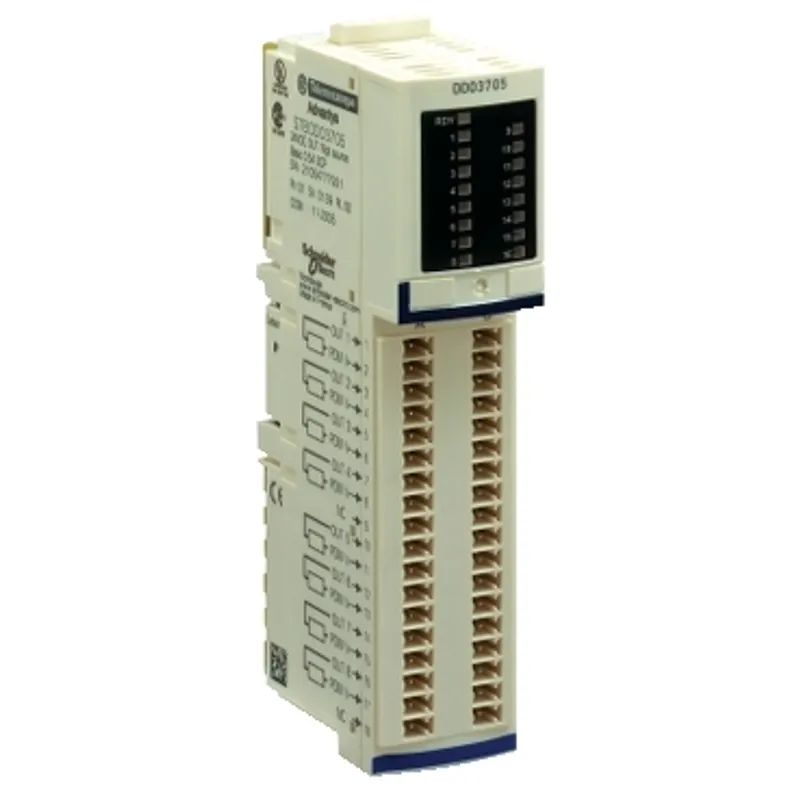

Basic digital output module STB - 24 V DC - 16 O
- MPN
- STBDDO3705
- EAN
- 3595863843460
- Category
- Modicon STB
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric STBDDO3705?
This output module is part of the Modicon STB range, an offer of IP20 modular distributed I/Os on multiple networks and fieldbus. This basic digital output module offers 16 outputs with positive discrete output logic. It offers discrete output voltage of 24V DC with solid state discrete output. There is an insulation between channels and logic bus at 1500V for 1 minute. It is an IP20 rated product. Its dimensions are 128.3mm (width) x 70mm (depth) x 13.9mm (height). It weighs 0.086kg. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines. This product is certified by CE, FM Class 1 Division 2, CSA and UL. It meets EN/IEC 61131-2 standard. It is compatible with I/O base STBXBA3000 and power distribution module STBPDT3100/3105. Advantys distributed I/O solutions are simple, open and flexible, meeting needs in every stage of the product life cycle. For distributed connection to sensors and actuators from a PLC with prefabricated cables.
Specifications
Specifications
| Range of product | Modicon STB distributed I/O solution |
| Product or component type | Basic digital output module |
| Product compatibility | Power distribution module STBPDT3100/3105, I/O base STBXBA3000 |
| Range compatibility | Logic/motion controller - Modicon M262, Modicon M580, Third party |
| Device application | Industrial application |
| Discrete output number | 16 solid state at 24 V DC |
| Discrete output logic | Positive logic (source) |
| Discrete output voltage | 24 V DC for solid state |
| Discrete output current | 500 mA |
| Response time on output | 2 ms off to on, 2 ms on to off |
| Maximum leakage current | 0.4 mA 30 V DC at state 0 |
| Power supply type | Power distribution module |
| Typical current consumption | 135 mA at 5 V DC |
| Electrical connection | Screw terminal |
| Isolation between channels and bus | 1500 V for 1 minute |
| Hot swapping fallback | No for basic NIMs |
| Local signalling | 1 LED (green) for module status (RDY), 1 LED per channel (green) for channel status (OUT1 to OUT16) |
| Height | 13.9 mm |
| Width | 128.3 mm |
| Depth | 70 mm |
| Net weight | 0.086 kg |
| IP degree of protection | IP20 |
| Marking | CE |
| Product certifications | UL, CSA, FM Class 1 Division 2 |
| Standards | IEC 61131-2 |
| Ambient air temperature for operation | 0…60 °C (without derating) |
| Ambient air temperature for storage | -40…85 °C without derating |
| Relative humidity | 95 % at 60 °C without condensation |
| Operating altitude | <= 2000 m |
| Pollution degree | 2 |
| Vibration resistance | 3 gn (f = 58…150 Hz) on 35 x 7.5 mm symmetrical DIN rail, 5 gn (f = 58…150 Hz) on 35 x 15 mm symmetrical DIN rail, +/-0.35 mm (f = 10…58 Hz) |
| Shock resistance | 30 gn for 11 ms conforming to IEC 88 reference 2-27 |
