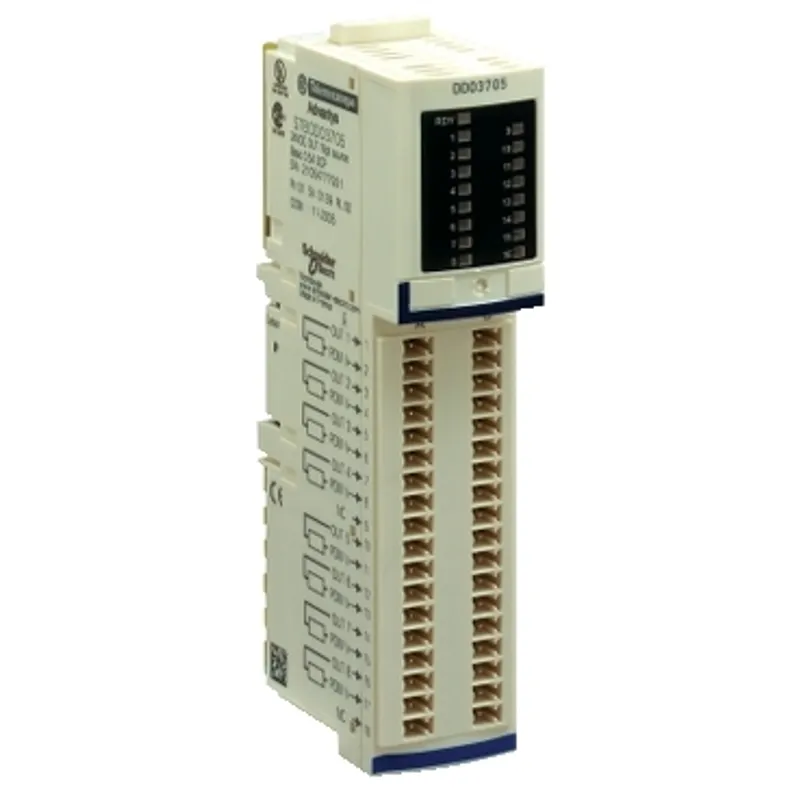

basic digital output module STB - 24 V DC - 16 O
Poproś o wycenę
Najważniejsze informacje
| Dostępność | Potwierdzenie na zapytanie |
| Kategoria | Modicon STB |
| Cykl życia | active |
| Gwarancja | 12 miesięcy (nowe) · 3 miesiące (używane/odnowione) |
| Waga | 0.09 kg |
Wysyłka i dostępność
Kiedy STBDDO3705 może zostać wysłany?
STBDDO3705 jest sprowadzany na zamówienie — poproś o wycenę, a potwierdzimy dokładną dostępność i czas realizacji dla tej konkretnej sztuki.
Czy mogę odebrać STBDDO3705 osobiście?
Odbiór osobisty w naszym magazynie w Groningen w Holandii może być możliwy — skontaktuj się z nami przed złożeniem zamówienia, aby potwierdzić dostępność i ustalić termin odbioru.
Czy dostępna jest dostawa ekspresowa?
Tak — wspomnij o tym w zapytaniu ofertowym dotyczącym STBDDO3705, a w odpowiedzi podamy opcje dostawy ekspresowej.
Nasz zakład stoi i pilnie tego potrzebujemy — czy możecie pomóc?
W przypadku krytycznej awarii skontaktuj się z nami bezpośrednio pod numerem +31 (0)50-7110348 lub e-mailem sales@partnerplc.com — sprawdzimy możliwość kuriera tego samego dnia lub dedykowanego transportu dla STBDDO3705, w zależności od dostępności i miejsca docelowego.
This output module is part of the Modicon STB range, an offer of IP20 modular distributed I/Os on multiple networks and fieldbus. This basic digital output module offers 16 outputs with positive discrete output logic. It offers discrete output voltage of 24V DC with solid state discrete output. There is an insulation between channels and logic bus at 1500V for 1 minute. It is an IP20 rated product. Its dimensions are 128.3mm (width) x 70mm (depth) x 13.9mm (height). It weighs 0.086kg. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines. This product is certified by CE, FM Class 1 Division 2, CSA and UL. It meets EN/IEC 61131-2 standard. It is compatible with I/O base STBXBA3000 and power distribution module STBPDT3100/3105. Advantys distributed I/O solutions are simple, open and flexible, meeting needs in every stage of the product life cycle. For distributed connection to sensors and actuators from a PLC with prefabricated cables.
Specyfikacja
Specifications
| Range of product | Modicon STB distributed I/O solution |
| Product or component type | Basic digital output module |
| Product compatibility | Power distribution module STBPDT3100/3105, I/O base STBXBA3000 |
| Range compatibility | Logic/motion controller - Modicon M262, Modicon M580, Third party |
| Device application | Industrial application |
| Discrete output number | 16 solid state at 24 V DC |
| Discrete output logic | Positive logic (source) |
| Discrete output voltage | 24 V DC for solid state |
| Discrete output current | 500 mA |
| Response time on output | 2 ms off to on, 2 ms on to off |
| Maximum leakage current | 0.4 mA 30 V DC at state 0 |
| Power supply type | Power distribution module |
| Typical current consumption | 135 mA at 5 V DC |
| Electrical connection | Screw terminal |
| Isolation between channels and bus | 1500 V for 1 minute |
| Hot swapping fallback | No for basic NIMs |
| Local signalling | 1 LED (green) for module status (RDY), 1 LED per channel (green) for channel status (OUT1 to OUT16) |
| Height | 13.9 mm |
| Width | 128.3 mm |
| Depth | 70 mm |
| Net weight | 0.086 kg |
| IP degree of protection | IP20 |
| Marking | CE |
| Product certifications | UL, CSA, FM Class 1 Division 2 |
| Standards | IEC 61131-2 |
| Ambient air temperature for operation | 0…60 °C (without derating) |
| Ambient air temperature for storage | -40…85 °C without derating |
| Relative humidity | 95 % at 60 °C without condensation |
| Operating altitude | <= 2000 m |
| Pollution degree | 2 |
| Vibration resistance | 3 gn (f = 58…150 Hz) on 35 x 7.5 mm symmetrical DIN rail, 5 gn (f = 58…150 Hz) on 35 x 15 mm symmetrical DIN rail, +/-0.35 mm (f = 10…58 Hz) |
| Shock resistance | 30 gn for 11 ms conforming to IEC 88 reference 2-27 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.05 cm |
| Package 1 Width | 6.6 cm |
| Package 1 Length | 12.95 cm |
| Package 1 Weight | 100 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 48 |
| Package 2 Height | 15 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 5.322 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 768 |
| Package 3 Height | 75.0 cm |
| Package 3 Width | 60.0 cm |
| Package 3 Length | 80.0 cm |
| Package 3 Weight | 95.1 kg |
| Warranty (in months) | 18 |
