Schneider Electric STBDDO3705KS

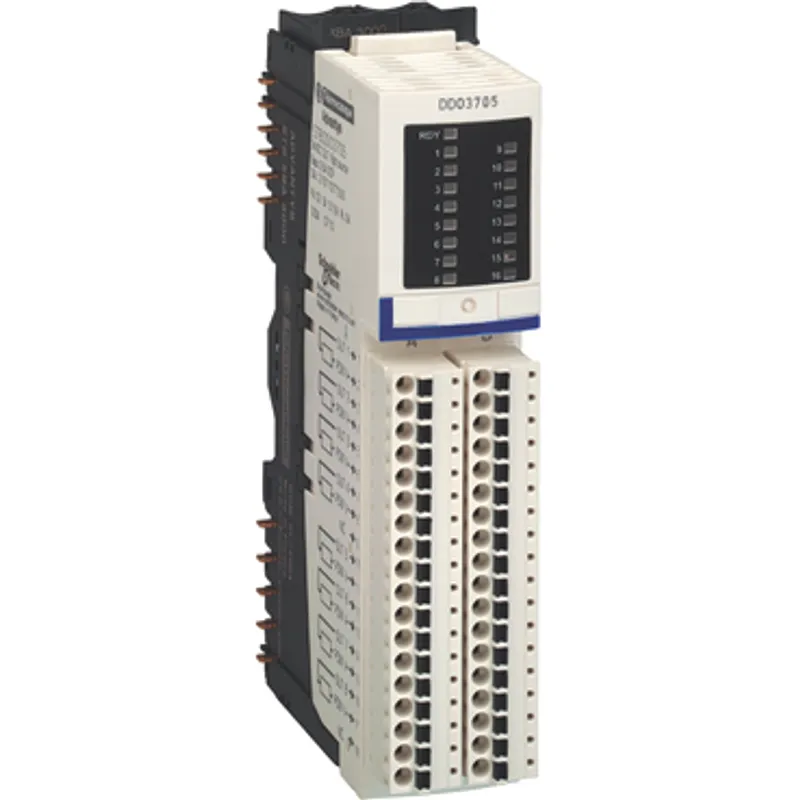

Basic digital output kit, Modicon STB, 24V DC, 16O, screw type connector
- MPN
- STBDDO3705KS
- EAN
- 3595863932638
- Category
- Modicon STB
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric STBDDO3705KS?
This product is part of the Modicon STB range, an offer of modular distributed I/O. This basic discrete output kit has 16 discrete outputs with solid state output. It is a discrete output kit with a rated supply voltage of 24V DC and a current consumption of 135mA at 5V DC for logic bus. This product is compatible with most major fieldbus networks. It is an IP20 rated product. Its dimensions are 128.3mm (width) x 70mm (depth) x 13.9mm (height) and weighs 0.086kg. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by FM Class 1 Division 2, CE, UL and CSA. It meets EN/IEC 61131-2 type 3 standards. This kit is suitable for use with power distribution module STBPDT3100/3105 and I/O base STBXBA3000. The kit includes STBDDO3705 module, STBXBA3000 base and STBXTS1180, 18-terminal screw type connector. The Modicon LMC058 is the optimum solution for axis control and positioning, including automation functions. It forms a part of flexible machine control approach, a key component of MachineStruxure.
Specifications
Specifications
| Range of product | Modicon STB distributed I/O solution |
| Product or component type | Basic digital output kit |
| Kit composition | STBDDO3705 module, STBXBA3000 base, STBXTS1180, 18-terminal screw type connector |
| Product compatibility | Power distribution module STBPDT3100/3105, I/O base STBXBA3000 |
| Range compatibility | Logic/motion controller - Modicon M262, Modicon M580, Third party |
| Device application | Industrial application |
| Discrete output number | 16 solid state at 24 V DC |
| Discrete output logic | Positive logic (source) |
| Discrete output voltage | 24 V DC for solid state |
| Discrete output current | 500 mA |
| Response time on output | < 10 ms off to on, < 10 ms on to off |
| Maximum leakage current | 0.4 mA 30 V DC at state 0 |
| Typical current consumption | 135 mA at 5 V DC |
| Electrical connection | Screw terminal |
| Hot swapping fallback | No for basic NIMs |
| Height | 13.9 mm |
| Width | 128.3 mm |
| Depth | 70 mm |
| Net weight | 0.086 kg |
| IP degree of protection | IP20 |
| Marking | CE |
| Product certifications | UL, CSA, FM Class 1 Division 2 |
| Standards | IEC 61131-2 |
| Relative humidity | 95 % at 60 °C without condensation |
| Operating altitude | <= 2000 m |
| Pollution degree | 2 |
| Shock resistance | 30 gn for 11 ms conforming to IEC 88 reference 2-27 |
Packaging
| Package 1 | 1 PCE, 13.052 cm × 7.947 cm × 3.622 cm (L × W × H), 210.0 g |
| Package 2 | 20 S02, 40 cm × 30 cm × 15 cm (L × W × H), 4.77 kg |
| Package 3 | 320 P06, 80.0 cm × 60.0 cm × 75.0 cm (L × W × H), 86 kg |
