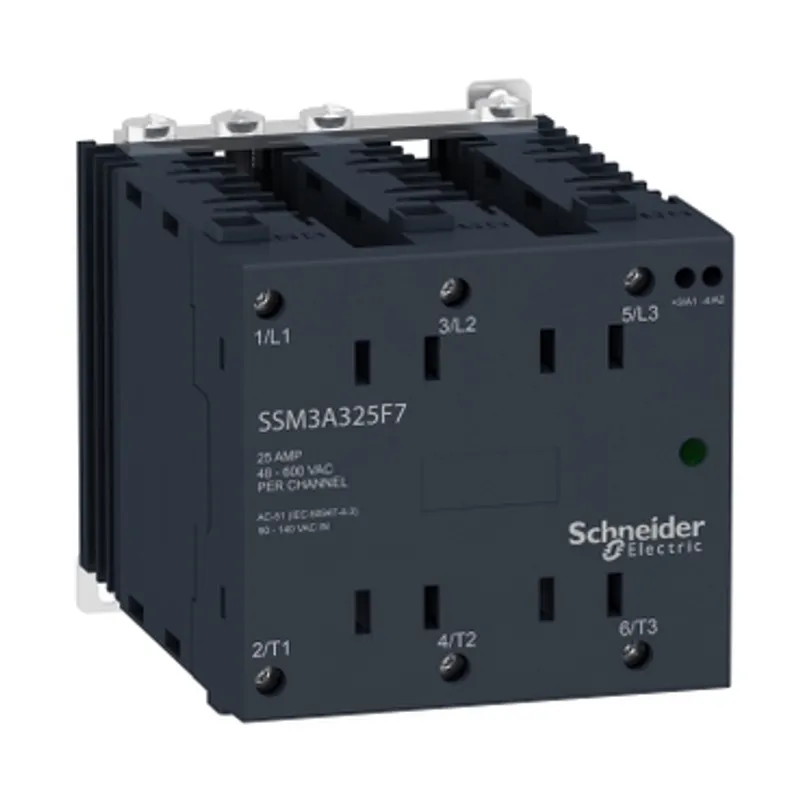

Schneider Electric SSM3A325P7
Pre Assembled, Harmony Solid State Relays, 25A, DIN rail mount, zero voltage switching, input 180...280V AC, output 48...600V AC
- MPN
- SSM3A325P7
- EAN
- 3606485441702
- Category
- Harmony Solid State Relays
Price and lead time confirmed within 1 business day
Discontinued by Schneider Electric — we can still source the original SSM3A325P7 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric SSM3A325P7?

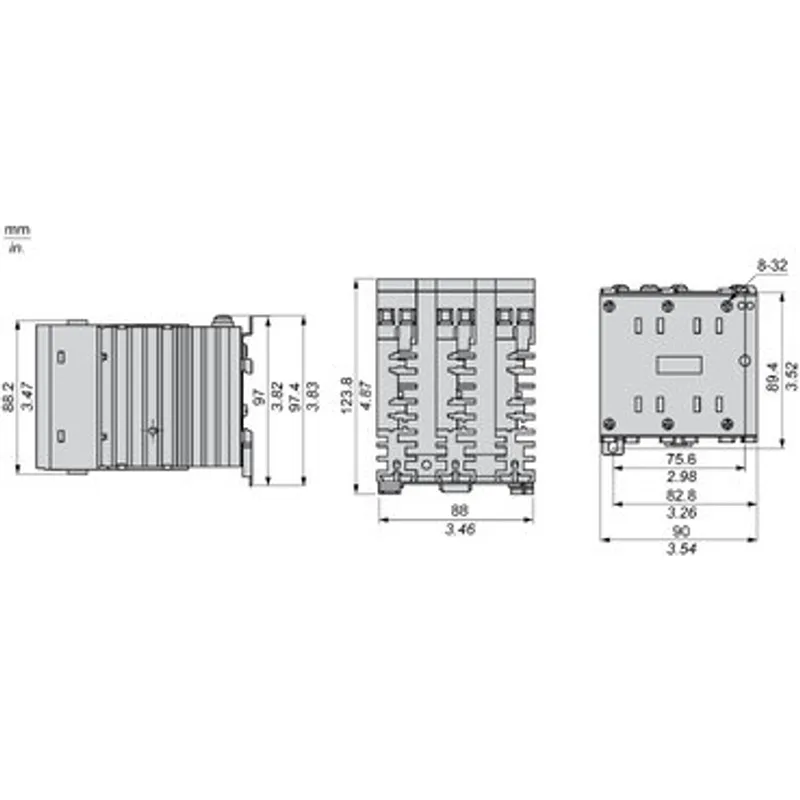

This product is part of the Harmony Solid State Relays range, an offer of panel mount solid state relays. The 1-phase solid state relay features zero voltage switching. It is an automation relay with a control circuit voltage of 180V to 280V AC and a switching voltage of 10V turn on and 180V turn off. This solid state modular relay operates with an output voltage of 48V to 660V AC. It offers screw terminals of 0.2mm² to 1.3mm², (AWG 24 to AWG 16) for input and 1.3mm² to 5.3mm², (AWG 16 to AWG 10) for output connections. It is an IP20 rated product. Its dimensions are 88mm (width) x 90mm (depth) x 123.8mm (height). It weighs 0.74kg. It is suitable for packaging machines, heating control, injection molding, HVAC, textile machines and medical equipment applications. This product is certified by UL, CSA, EAC and CE marking. It meets IEC 60950-1, CSA C22.2 No 14 and UL 508 standards. It supports symmetrical DIN rail mount. Harmony Solid State Relays are the complete solution for 1 phase and 3 phase, slim, modular DIN rail and panel mount offer. SSR relays offer slim interfaces, modular DIN rail and panel mount relays. A complete, innovative and compact solution for industrial applications.
Specifications
Specifications
| Range of product | Harmony Solid State Relays |
| Device short name | SSM3 |
| Product or component type | Modular DIN rail relay |
| Number of channels | 3 |
| Number of phases | 3 phases |
| Output switching mode | Zero voltage switching |
| Mounting support | Symmetrical DIN rail |
| [In] rated current | 25 A |
| Output voltage | 48...600 V AC |
| [Uc] control circuit voltage | 180...280 V AC |
| Tightening torque | 0.6...0.7 N.m for input, 1.36...1.7 N.m for output |
| Connections - terminals | Screw terminals: 0.2...1.3 mm², (AWG 24...AWG 16) for input, Screw terminals: 1.3...5.3 mm², (AWG 16...AWG 10) for output |
| maximum capacitance | 8 pF for input/output |
| Insulation resistance | 1000 MOhm |
| Local signalling | LED (green) for input status |
| Switching voltage | 10 V turn-off, 180 V turn-on |
| input current | 19…24 mA |
| Solid state output type | Zero voltage switching |
| Load current | 0.1…25 A |
| transient overvoltage | 1100 V |
| Surge current | 286 A for 20 ms at 50 Hz, 300 A for 16.6 ms at 60 Hz |
| Maximum voltage drop | <1.35 V on-state |
| Motor power hp | 1 hp 40 °C 240 V AC, 2 hp 40 °C 380 V AC, 3 hp 40 °C 480 V AC |
| Maximum I²t for fusing | 410 A².s for 10 ms at 50 Hz, 374 A².s for 8.3 ms at 60 Hz |
| Maximum leakage current | 0.25 mA off-state |
| DV/dt | 500 V/µs off-state at maximum voltage |
| Response time | 30 ms (turn-off), 20 ms (turn-on) |
| power factor | 0.5 (with maximum load) |
| Overvoltage category | III |
| Width | 90 mm |
| test button | Without test button |
| Net weight | 0.74 kg |
| Dielectric strength | 4 kV AC for input/output, 4 kV AC for input or output to case |
| Pollution degree | 2 |
| Standards | UL 508, IEC 60950-1, CSA C22.2 No 14 |
| Product certifications | CSA, UL, EAC |
| Marking | CSA, CE, EAC, UL |
| IP degree of protection | IP20 |
| Ambient air temperature for operation | -20…60 °C |
| Ambient air temperature for storage | -40…100 °C |
Packaging
| Package 1 | 1 PCE, 11 cm × 11 cm × 14 cm (L × W × H), 795 g |
| Package 2 | 5 S02, 40 cm × 30 cm × 15 cm (L × W × H), 4.393 kg |
