Schneider Electric SSM3A325F7
Single phase relay, Harmony Solid State Modular Relays, 25A, DIN rail mount, zero voltage switching, input 90 to 140V AC, output 48 to 600V AC
- MPN
- SSM3A325F7
- EAN
- 3606485441696
- Category
- Harmony Solid State Relays
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via

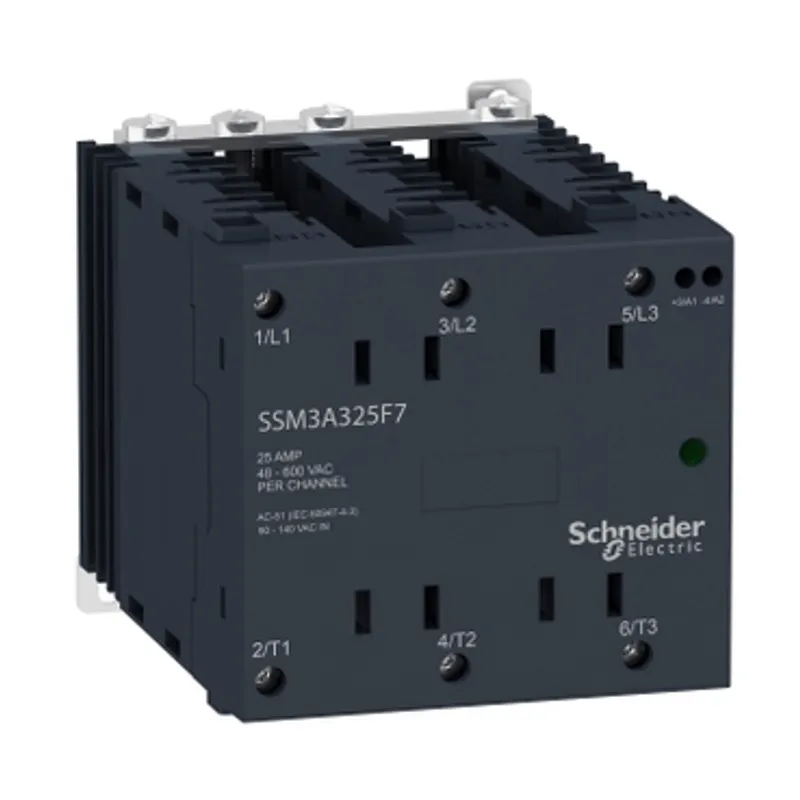

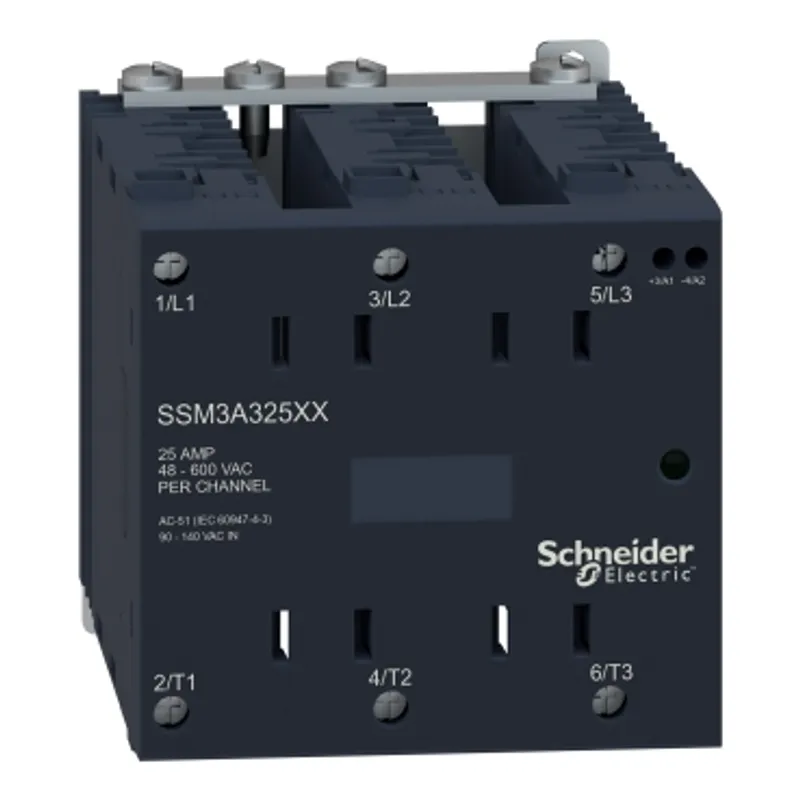

What is the Schneider Electric SSM3A325F7?

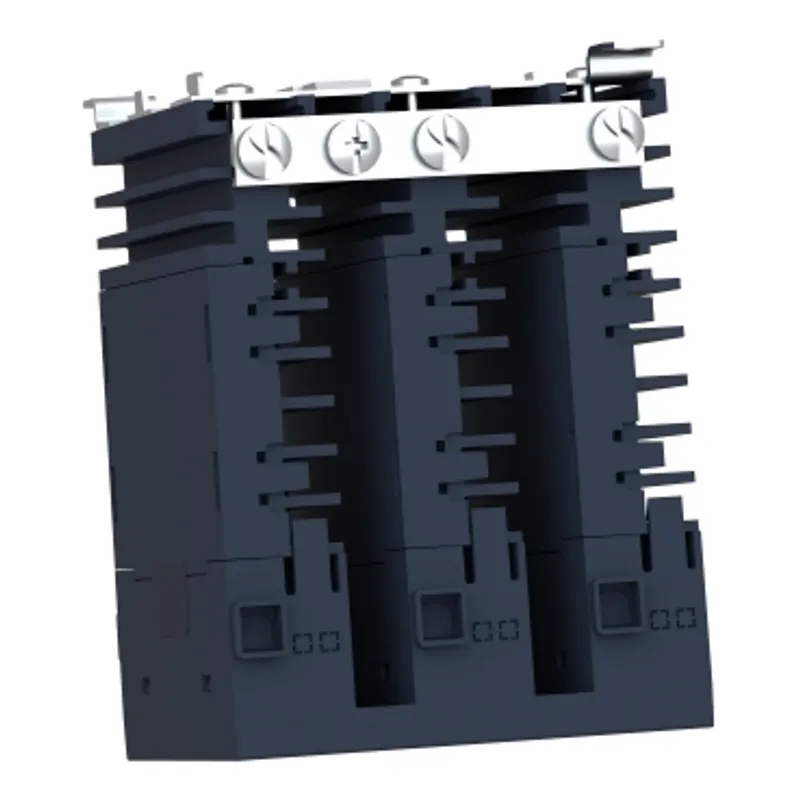

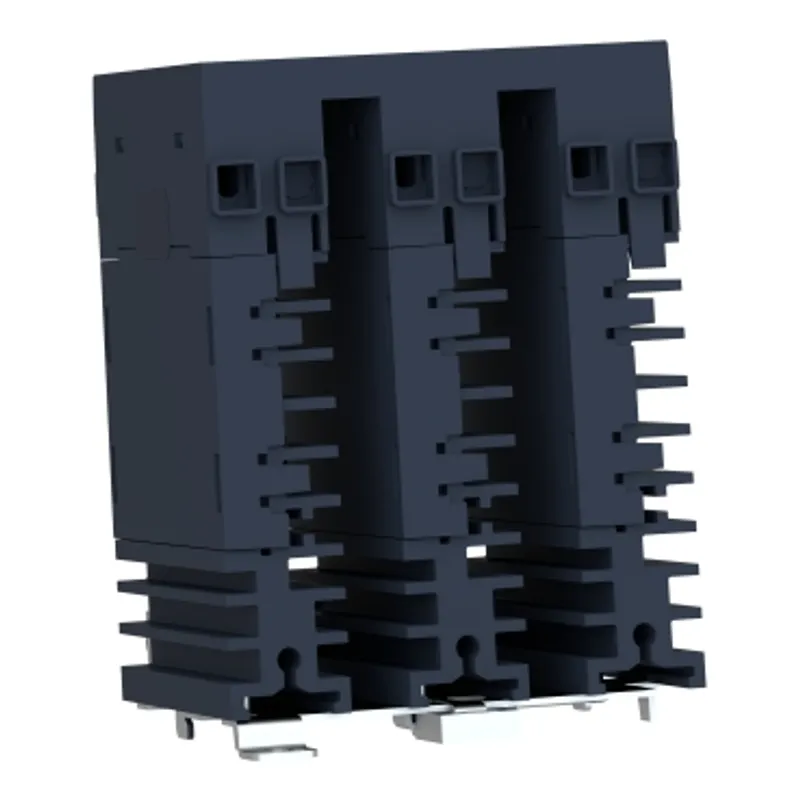

This static relay has a built-in heatsink for limited derating while limiting occupied space in panel It also has a visual indicator showing the status of its input Its rated current is 25 A, is controlled with a 90 to 140 V AC circuit, has a rated load voltage of 48 to 600 V AC output. It mounts on symetrical DIN rails and comes with a secure mounting latch
Specifications
Specifications
| Range of product | Harmony Solid State Relays |
| Device short name | SSM3 |
| Product or component type | Modular DIN rail relay |
| Number of channels | 3 |
| Number of phases | 3 phases |
| Output switching mode | Zero voltage switching |
| Mounting support | Symmetrical DIN rail |
| [In] rated current | 25 A |
| Output voltage | 48...600 V AC |
| [Uc] control circuit voltage | 90...140 V AC |
| Tightening torque | 0.6...0.7 N.m for input, 1.36...1.7 N.m for output |
| Connections - terminals | Screw terminals: 0.2...1.3 mm², (AWG 24...AWG 16) for input, Screw terminals: 1.3...5.3 mm², (AWG 16...AWG 10) for output |
| maximum capacitance | 8 pF for input/output |
| Insulation resistance | 1000 MOhm |
| Local signalling | LED (green) for input status |
| Switching voltage | 90 V turn-on, 10 V turn-off |
| input current | 15…19 mA |
| Solid state output type | Zero voltage switching |
| Load current | 0.1…25 A |
| transient overvoltage | 1100 V |
| Surge current | 286 A for 20 ms at 50 Hz, 300 A for 16.6 ms at 60 Hz |
| Maximum voltage drop | <1.35 V on-state |
| Motor power hp | 1 hp 40 °C 240 V AC, 2 hp 40 °C 380 V AC, 3 hp 40 °C 480 V AC |
| Maximum I²t for fusing | 410 A².s for 10 ms at 50 Hz, 374 A².s for 8.3 ms at 60 Hz |
| Maximum leakage current | 0.25 mA off-state |
| DV/dt | 500 V/µs off-state at maximum voltage |
| Response time | 30 ms (turn-off), 20 ms (turn-on) |
| power factor | 0.5 (with maximum load) |
| Overvoltage category | III |

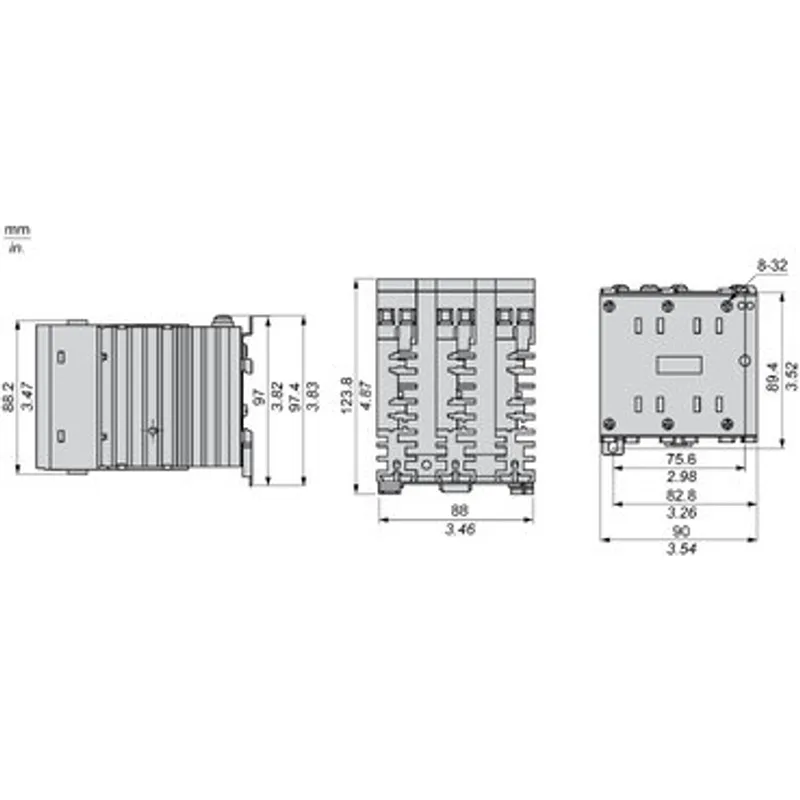

| Width | 90 mm |
| test button | Without test button |
| Net weight | 0.74 kg |
| Dielectric strength | 4 kV AC for input/output, 4 kV AC for input or output to case |
| Pollution degree | 2 |
| Standards | IEC 60950-1, UL 508, CSA C22.2 No 14 |
| Product certifications | UL, EAC, CSA |
| Marking | CSA, UL, CE, EAC |
| IP degree of protection | IP20 |
| Ambient air temperature for operation | -20…80 °C |
| Ambient air temperature for storage | -40…100 °C |
Packaging
| Package 1 | 1 PCE, 11.0 cm × 11.0 cm × 14.0 cm (L × W × H), 812.0 g |
| Package 2 | 5 S02, 40.0 cm × 30.0 cm × 15.0 cm (L × W × H), 4.47 kg |
