Schneider Electric SSM3A325BDR
Pre Assembled, Harmony Solid State Relays, 25A, DIN rail mount, random switching, input 4...32V DC, output 48...600V AC
- MPN
- SSM3A325BDR
- EAN
- 3606485441726
- Category
- Harmony Solid State Relays
Price and lead time confirmed within 1 business day
Discontinued by Schneider Electric — we can still source the original SSM3A325BDR (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric SSM3A325BDR?
Schneider Electric pre Assembled, Harmony Solid State Relays, 25A, DIN rail mount, random switching, input 4...32V DC, output 48...600V AC, manufacturer part number SSM3A325BDR. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Range of product | Harmony Solid State Relays |
| Device short name | SSM3 |
| Product or component type | Modular DIN rail relay |
| Number of channels | 3 |
| Number of phases | 3 phases |
| Output switching mode | Random voltage switching |
| Mounting support | Symmetrical DIN rail |
| [In] rated current | 25 A |
| Output voltage | 48...600 V AC |
| [Uc] control circuit voltage | 4...32 V DC |
| Tightening torque | 0.6...0.7 N.m for input, 1.36...1.7 N.m for output |
| Connections - terminals | Screw terminals: 0.2...1.3 mm², (AWG 24...AWG 16) for input, Screw terminals: 1.3...5.3 mm², (AWG 16...AWG 10) for output |
| maximum capacitance | 8 pF for input/output |
| Insulation resistance | 1000 MOhm |
| Local signalling | LED (green) for input status |
| Switching voltage | 4 V DC turn-on, 1 V DC turn-off |
| input current | 22…28 mA |
| Solid state output type | Random voltage switching |
| Load current | 0.1…25 A |
| transient overvoltage | 1100 V |
| Surge current | 286 A for 20 ms at 50 Hz, 300 A for 16.6 ms at 60 Hz |
| Maximum voltage drop | <1.35 V on-state |
| Motor power hp | 1 hp 40 °C 240 V AC, 2 hp 40 °C 380 V AC, 3 hp 40 °C 480 V AC |
| Maximum I²t for fusing | 410 A².s for 10 ms at 50 Hz, 374 A².s for 8.3 ms at 60 Hz |
| Maximum leakage current | 0.25 mA off-state |
| DV/dt | 500 V/µs off-state at maximum voltage |
| Response time | 0.5 cycle (turn-off), 0.02 ms (turn-on) |
| power factor | 0.5 (with maximum load) |
| Overvoltage category | III |

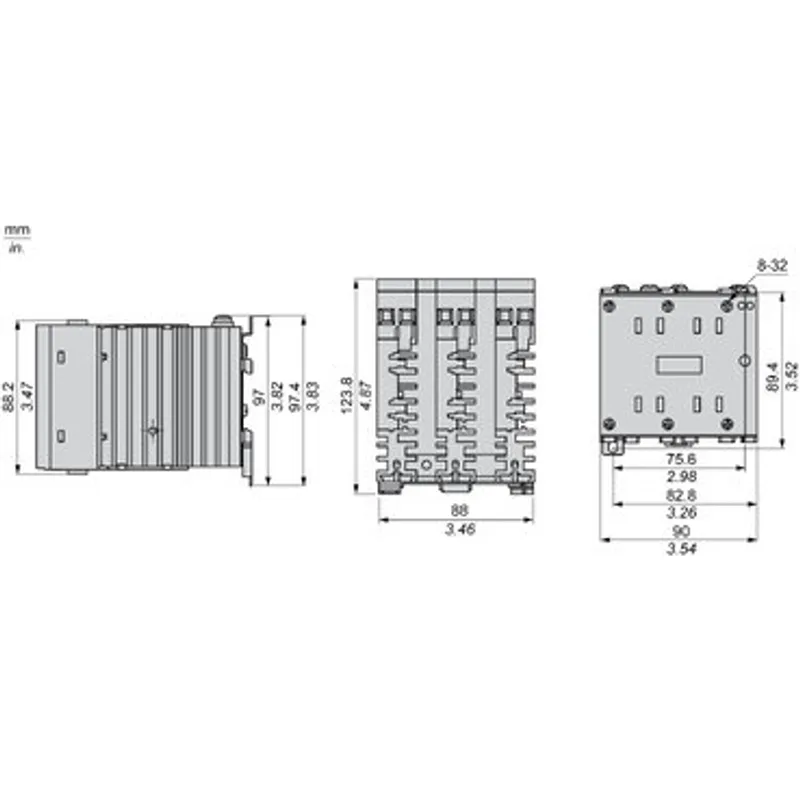

| Width | 90 mm |
| test button | Without test button |
| Net weight | 0.74 kg |
| Dielectric strength | 4 kV AC for input/output, 4 kV AC for input or output to case |
| Pollution degree | 2 |
| Standards | UL 508, IEC 60950-1, CSA C22.2 No 14 |
| Product certifications | UL, EAC, CSA |
| Marking | CSA, EAC, CE, UL |
| IP degree of protection | IP20 |
| Ambient air temperature for operation | -20…80 °C |
| Ambient air temperature for storage | -40…100 °C |
Packaging
| Package 1 | 1 PCE, 11.0 cm × 11.0 cm × 14.0 cm (L × W × H), 803.0 g |
| Package 2 | 5 S02, 40.0 cm × 30.0 cm × 15.0 cm (L × W × H), 4.362 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
SSM3A325BDR: frequently asked questions
Can I still buy the SSM3A325BDR now that it is discontinued?
Yes. Schneider Electric has discontinued the SSM3A325BDR, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can SSM3A325BDR be shipped?
SSM3A325BDR is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up SSM3A325BDR in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for SSM3A325BDR and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for SSM3A325BDR, subject to availability and destination.
