Schneider Electric NSYTBP885
PC box IP66 IK08 RAL7035 Int.H80W80D65 Ext.H89W89D51 opaque PC cover H10
- MPN
- NSYTBP885
- EAN
- 3606480165597
- Category
- PanelSeT TBP
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric NSYTBP885?

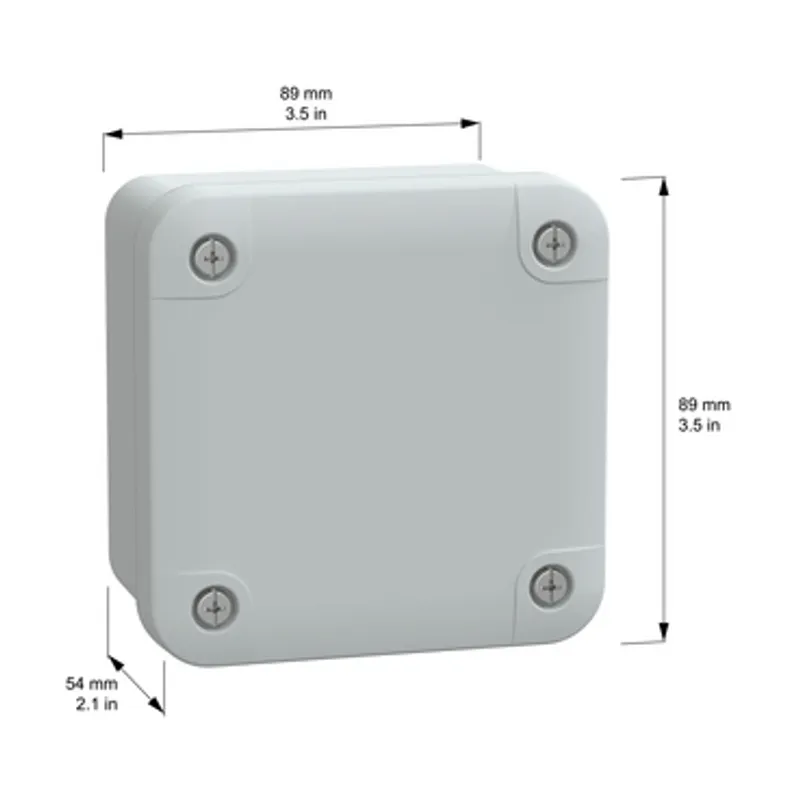

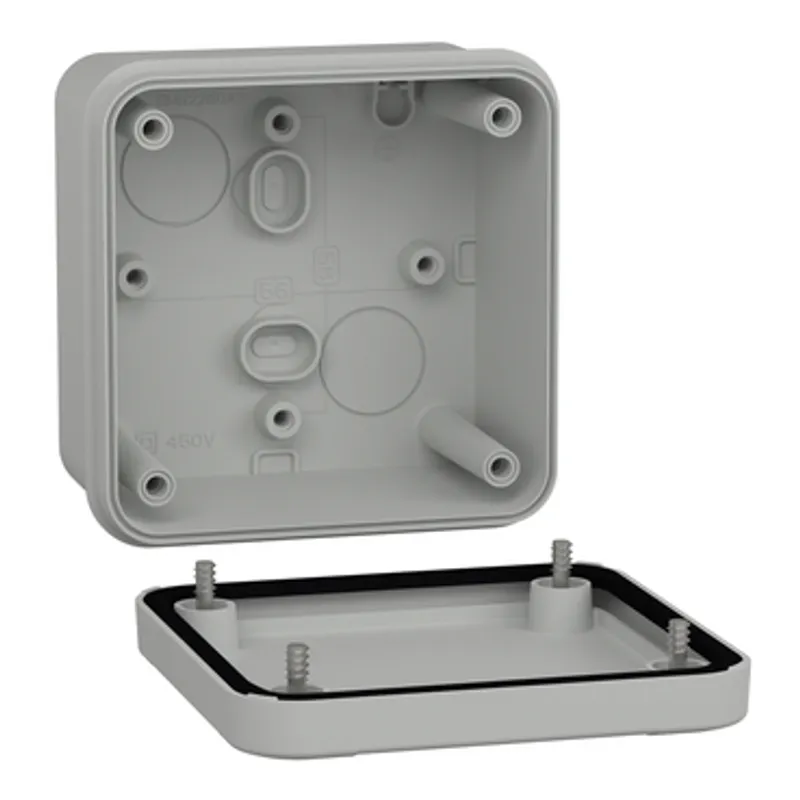

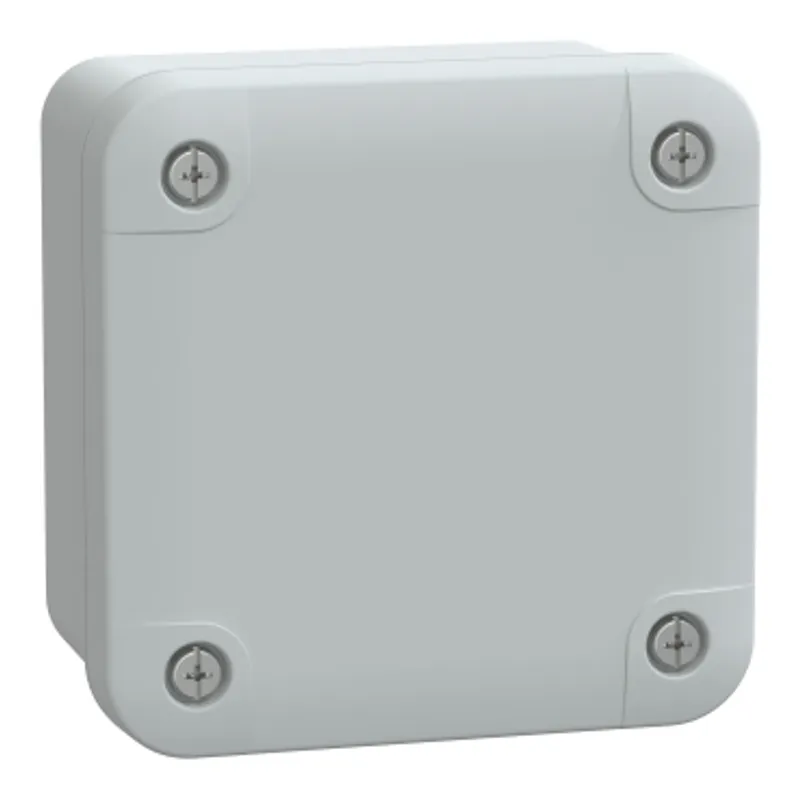

This TBP is a wall-mounted box made of polycarbonate from the Thalassa product group It is designed for multi-purpose applications and can be used indoor or outdoor The box has a grey (RAL 7035) body and a low plain cover The enclosure has a nominal height, width, and depth of 89 mm, 89 mm, and 54 mm, respectively The internal dimensions of the box are 80 mm x 80 mm x 47 mm The cover is closed by four captive flat screws located outside the sealed area of the box to maintain IP The box has a class II electrical insulation that prevents electric shocks and allows the building of totally insulated solutions
Specifications
Specifications
| Range | PanelSeT |
| Product name | PanelSeT TBP |
| Device application | Multi-purpose |
| Category | Industrial box |
| Height | 89 mm |
| Width | 89 mm |
| Depth | 54 mm |
| Internal height | 80 mm |
| Internal width | 80 mm |
| Internal depth | 47 mm |
| Enclosure mounting | Wall mounted |
| Device composition | 1 body, 1 cover, 4 cover screw |
| Quantity per set | Set of 5 |
| Body type | One piece moulded |
| Type of front cover | Low plain cover |
| Cover fixing | Metal screws |
| Lock type | Captive screw flat outside sealed area |
| Removable parts | Cover by captive screws |
| Material | Polycarbonate |
| Colour | Grey (RAL 7035) |
| Standards | UL 508 A, IEC 62208 |
| Product certifications | TÜV, UL |
| Electrical insulation class | Class II |
| Mounting location | Outdoor (with canopy or shelter and anticondensation valve) |
| Net weight | 0.108 kg |
| IP degree of protection | IP66 conforming to NEMA 4.4X |
| IK degree of protection | IK08 conforming to IEC 62262 |
| Fire resistance | 960 °C |
| Ambient air temperature for storage | -15…60 °C |
| Operating temperature | -25…80 °C |
Packaging
| Package 1 | 1 PCE, 8.900 cm × 8.900 cm × 5.400 cm (L × W × H), 105.000 g |
| Package 2 | 160 CAR, 60.000 cm × 41.000 cm × 40.000 cm (L × W × H), 17.200 kg |
| Package 3 | 1920 P12, 120.000 cm × 80.000 cm × 134.500 cm (L × W × H), 220.000 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYTBP885: frequently asked questions
When can NSYTBP885 be shipped?
NSYTBP885 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYTBP885 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYTBP885 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYTBP885, subject to availability and destination.
