Schneider Electric NSYTBP342912T

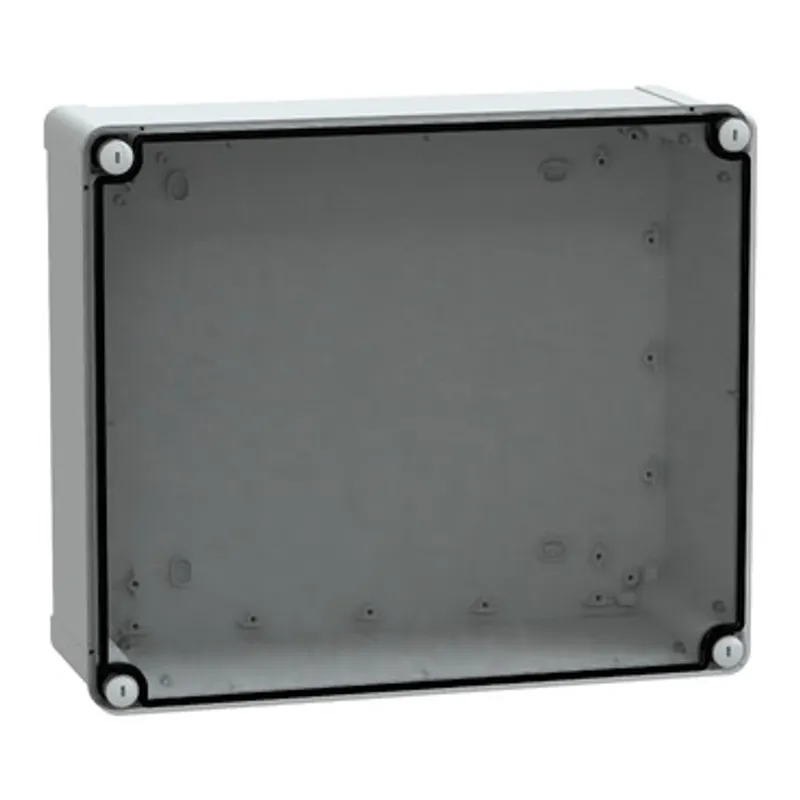

PC box IP66 IK08 RAL7035 Int.H325W275D120 Ext.H341W291D128 Transp.cover H20
- MPN
- NSYTBP342912T
- EAN
- 3606480165924
- Category
- PanelSeT TBP
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric NSYTBP342912T?

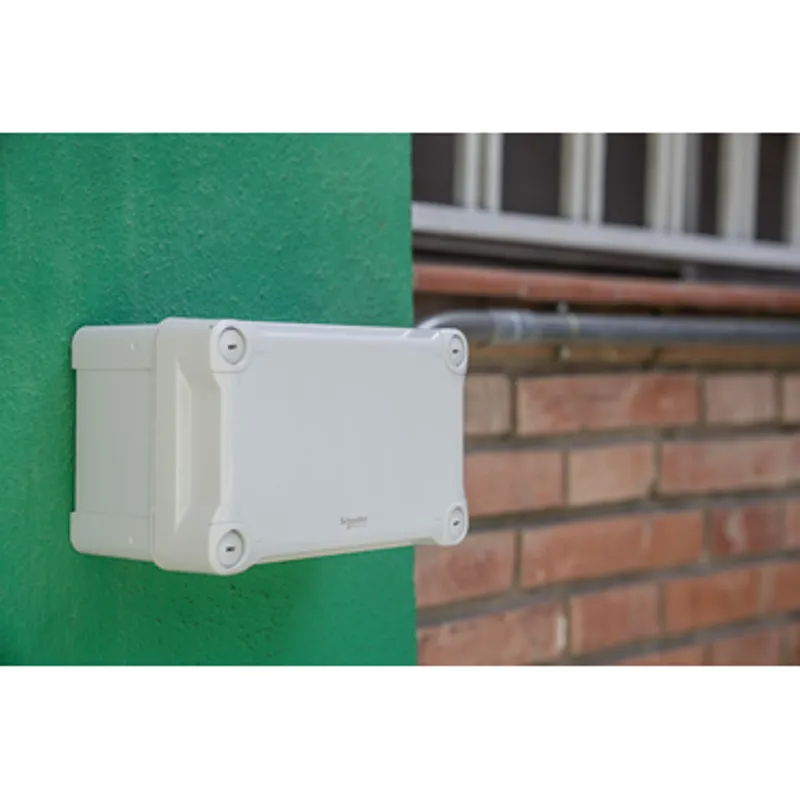

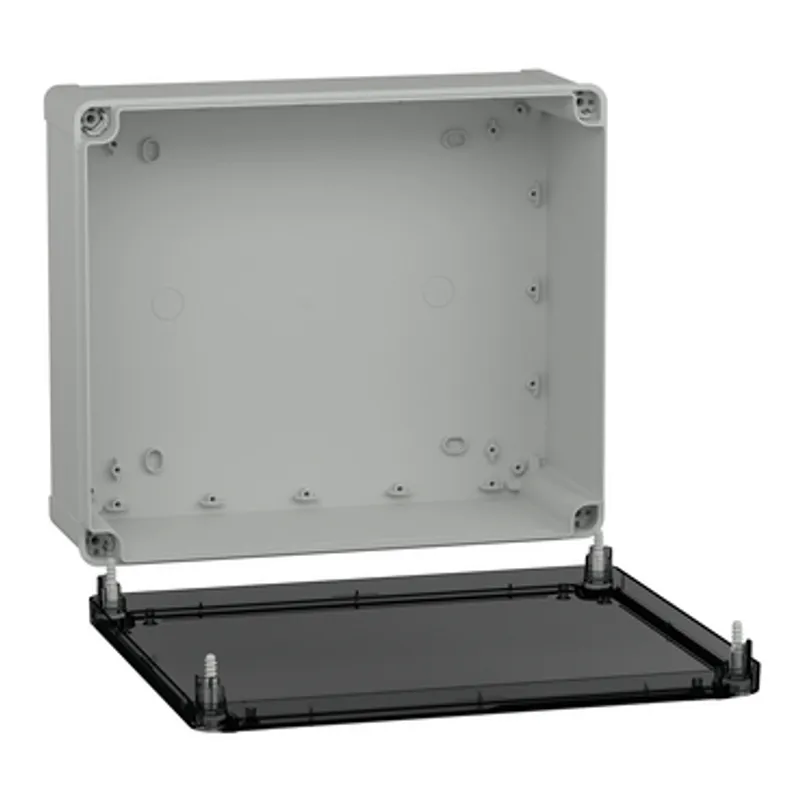

This TBP is a wall-mounted box made of polycarbonate It is designed for multi-purpose applications and can be used indoor or outdoor The box has a grey (RAL 7035) body and a low transparent cover The enclosure has a nominal height, width, and depth of 341 mm, 291 mm, and 128 mm, respectively The internal dimensions of the box are 325 mm x 275 mm x 120 mm The cover is closed by four captive flat screws located outside the sealed area of the box to maintain IP The box has a class II electrical insulation that prevents electric shocks and allows the building of totally insulated solutions
Specifications
Specifications
| Range | PanelSeT |
| Product name | PanelSeT TBP |
| Device application | Multi-purpose |
| Category | Industrial box |

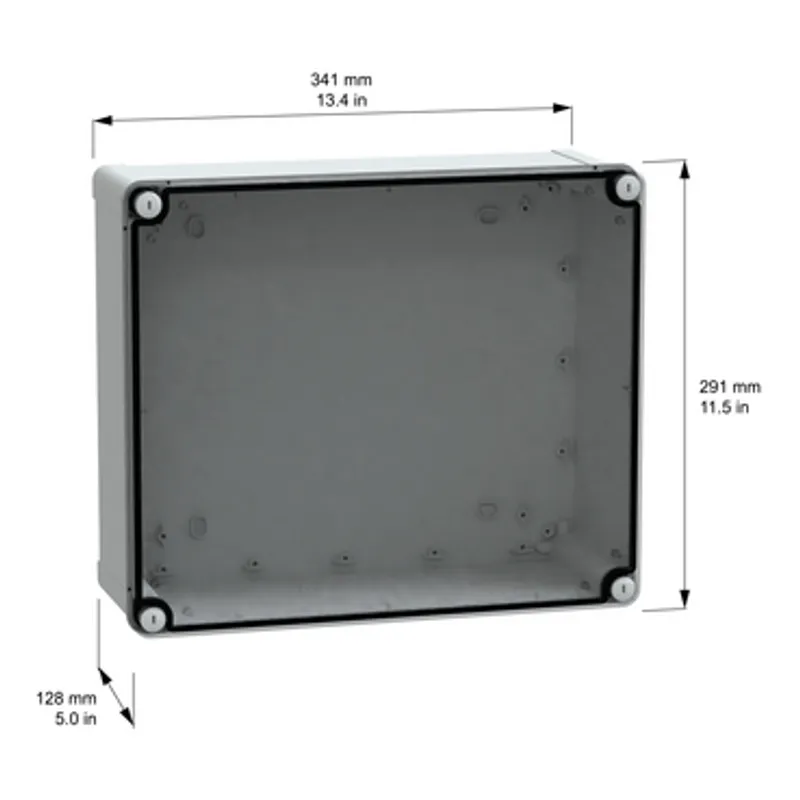

| Height | 341 mm |
| Width | 291 mm |
| Depth | 128 mm |
| Internal height | 325 mm |
| Internal width | 275 mm |
| Internal depth | 120 mm |
| Enclosure mounting | Wall mounted |
| Device composition | 1 body, 1 cover, 4 cover screw |
| Body type | One piece moulded |
| Type of front cover | Low transparent cover |
| Cover fixing | Plastic screws |
| Lock type | Captive screw flat outside sealed area |
| Removable parts | Cover by captive screws |
| Material | Polycarbonate |
| Colour | Grey (RAL 7035), Transparent |
| Standards | UL 508 A, IEC 62208 |
| Product certifications | TÜV, UL |
| Electrical insulation class | Class II |
| Mounting location | Outdoor (with canopy or shelter and anticondensation valve) |
| Net weight | 1.6 kg |
| IP degree of protection | IP66 conforming to NEMA 4.4X |
| IK degree of protection | IK08 conforming to IEC 62262 |
| Fire resistance | 960 °C |
| Ambient air temperature for storage | -15…60 °C |
| Operating temperature | -25…80 °C |
Packaging
| Package 1 | 1 PCE, 36.000 cm × 30.000 cm × 14.000 cm (L × W × H), 1.620 kg |
| Package 2 | 4 CAR, 60.000 cm × 40.000 cm × 40.000 cm (L × W × H), 7.620 kg |
| Package 3 | 48 P12, 120.000 cm × 80.000 cm × 135.000 cm (L × W × H), 104.000 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYTBP342912T: frequently asked questions
When can NSYTBP342912T be shipped?
NSYTBP342912T is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYTBP342912T in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYTBP342912T and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYTBP342912T, subject to availability and destination.
