Schneider Electric NSYTBP775
PC box IP66 IK08 RAL7035 Int.H65W65D45 Ext.H74W74D56 opaque PC cover H10
- MPN
- NSYTBP775
- EAN
- 3606480165580
- Category
- PanelSeT TBP
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric NSYTBP775?

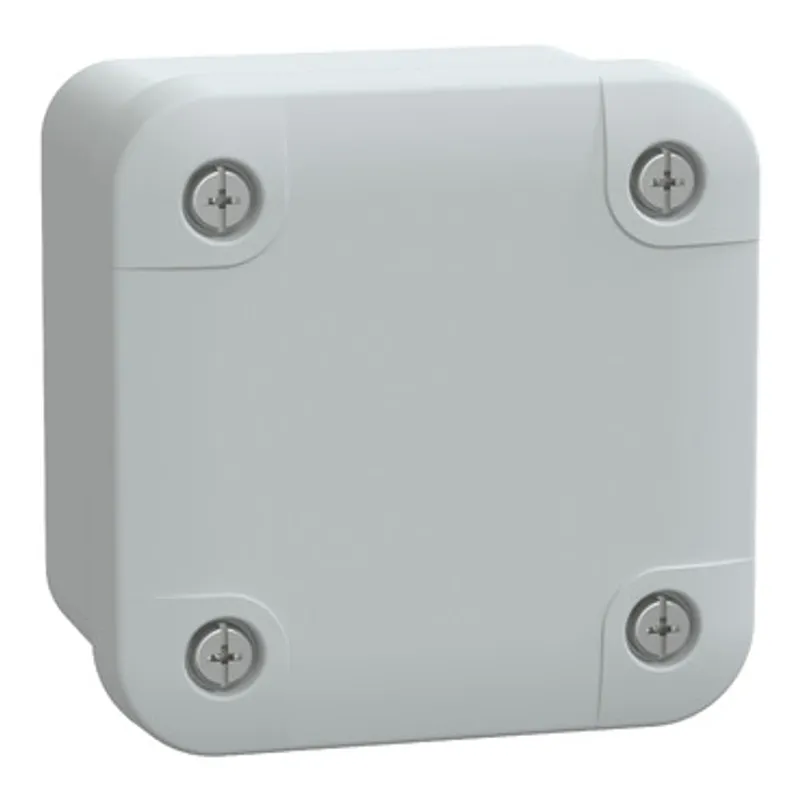

This TBP is a wall-mounted box made of polycarbonate It is designed for multi-purpose applications and can be used indoor or outdoor The box has a grey (RAL 7035) body and a low plain cover The enclosure has a nominal height, width, and depth of 74 mm, 74 mm, and 54 mm, respectively The internal dimensions of the box are 65 mm x 65 mm x 47 mm The cover is closed by four captive flat screws located outside the sealed area of the box to maintain IP The box has a class II electrical insulation that prevents electric shocks and allows the building of totally insulated solutions
Specifications
Specifications
| Range | PanelSeT |
| Product name | PanelSeT TBP |
| Device application | Multi-purpose |
| Category | Industrial box |

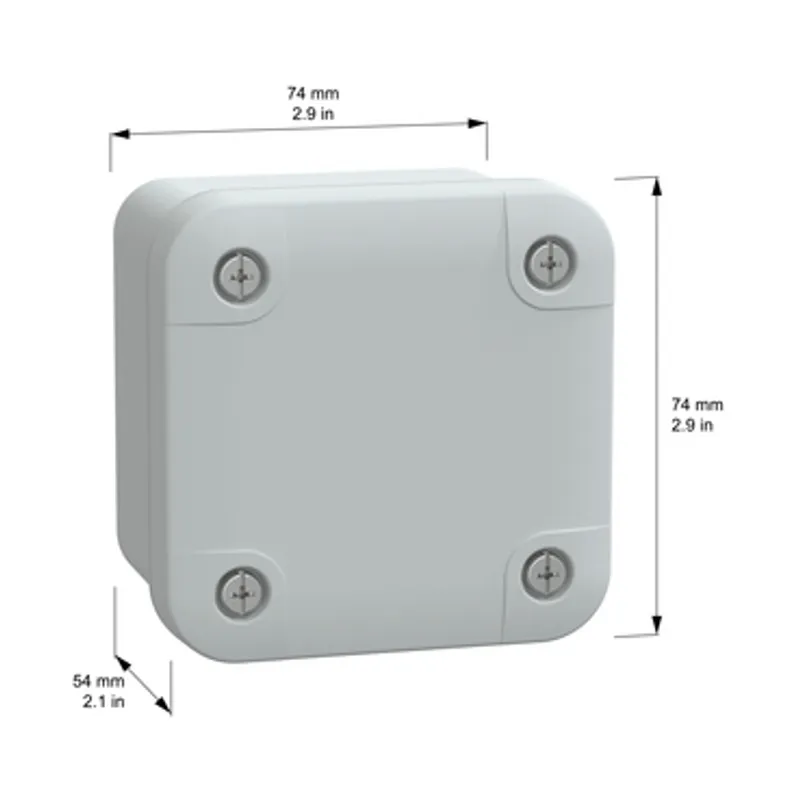

| Height | 74 mm |
| Width | 74 mm |
| Depth | 54 mm |
| Internal height | 65 mm |
| Internal width | 65 mm |
| Internal depth | 47 mm |
| Enclosure mounting | Wall mounted |

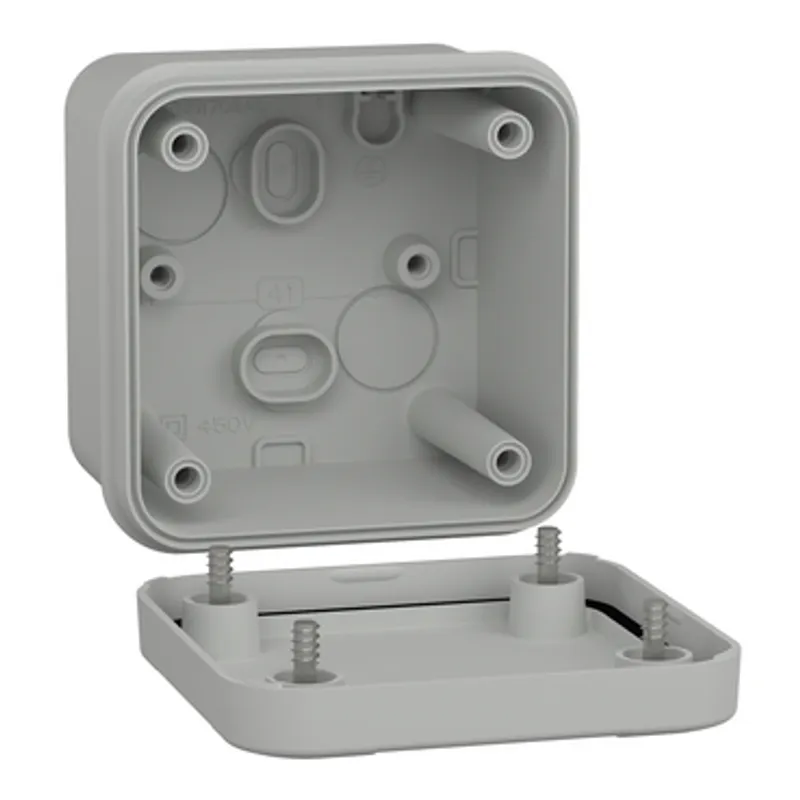

| Device composition | 1 body, 1 cover, 4 cover screw |
| Quantity per set | Set of 5 |
| Body type | One piece moulded |
| Type of front cover | Low plain cover |
| Cover fixing | Metal screws |
| Lock type | Captive screw flat outside sealed area |
| Removable parts | Cover by captive screws |
| Material | Polycarbonate |
| Colour | Grey (RAL 7035) |
| Standards | IEC 62208, UL 508 A |
| Product certifications | TÜV, UL |
| Electrical insulation class | Class II |
| Mounting location | Outdoor (with canopy or shelter and anticondensation valve) |
| Net weight | 0.076 kg |
| IP degree of protection | IP66 conforming to NEMA 4.4X |
| IK degree of protection | IK08 conforming to IEC 62262 |
| Fire resistance | 960 °C |
| Ambient air temperature for storage | -15…60 °C |
| Operating temperature | -25…80 °C |
Packaging
| Package 1 | 1 PCE, 7.400 cm × 7.400 cm × 5.600 cm (L × W × H), 76.000 g |
| Package 2 | 185 CAR, 60.000 cm × 41.000 cm × 40.000 cm (L × W × H), 17.040 kg |
| Package 3 | 4625 PAM, 120.000 cm × 100.000 cm × 218.000 cm (L × W × H), 441.000 kg |
