Schneider Electric
NSYSFNHS1Handle for shaped inserts and cylindrical barrels, PanelSeT SFN, PanelSeT SM, for electrical enclosure, RAL9005
Schneider Electric NSYSFNV12
Vertical uprights, PanelSeT SFN, for electrical enclosure H1200mm, set of 4
- MPN
- NSYSFNV12
- EAN
- 3606486103852
- Category
- PanelSeT SFN
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via

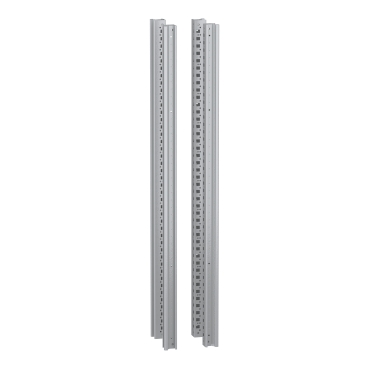

What is the Schneider Electric NSYSFNV12?

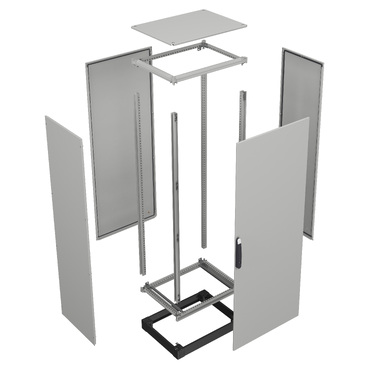

These steel vertical uprights are purpose-built to assemble a PanelSeT SFN floor standing modular decarbonized steel electrical enclosure for various applications. It contains recycled steel, which is produced with renewable energy, resulting into a significant reduction of CO2 emissions. This set of 4 units has a nominal height of 1200 mm. It is made of galvanized steel for durability. An epoxy-polyester powder finish provides a smooth appearance. It has a grey (RAL 7035) color. "This product is qualified as a green premium, with minimal use of hazardous substances."
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Product or component type | Vertical upright |
| device application | Multi-purpose |
| enclosure nominal dimensions | - |
| Mounting support | Bottom frame and top frame with roof |
| Range compatibility | PanelSeT SFN |
| Device composition | 4 upright |
| Quantity per set | Set of 1 |
| Material | Steel |
| Surface finish | Textured epoxy polyester |
| Fixing mode | By screws - screw type M12 |
| Height | 1200 mm |
| Width | 45 mm |
| Depth | 45 mm |
| Net weight | 11.5 kg |
Packaging
| Package 1 | 1 PCE, 113.000 cm × 21.000 cm × 5.000 cm (L × W × H), 12.000 kg |
| Package 2 | 40 PAM, 120.000 cm × 100.000 cm × 65.000 cm (L × W × H), 492.000 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYSFNV12: frequently asked questions
When can NSYSFNV12 be shipped?
NSYSFNV12 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYSFNV12 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYSFNV12 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYSFNV12, subject to availability and destination.
