Schneider Electric NSYSFNRB3G

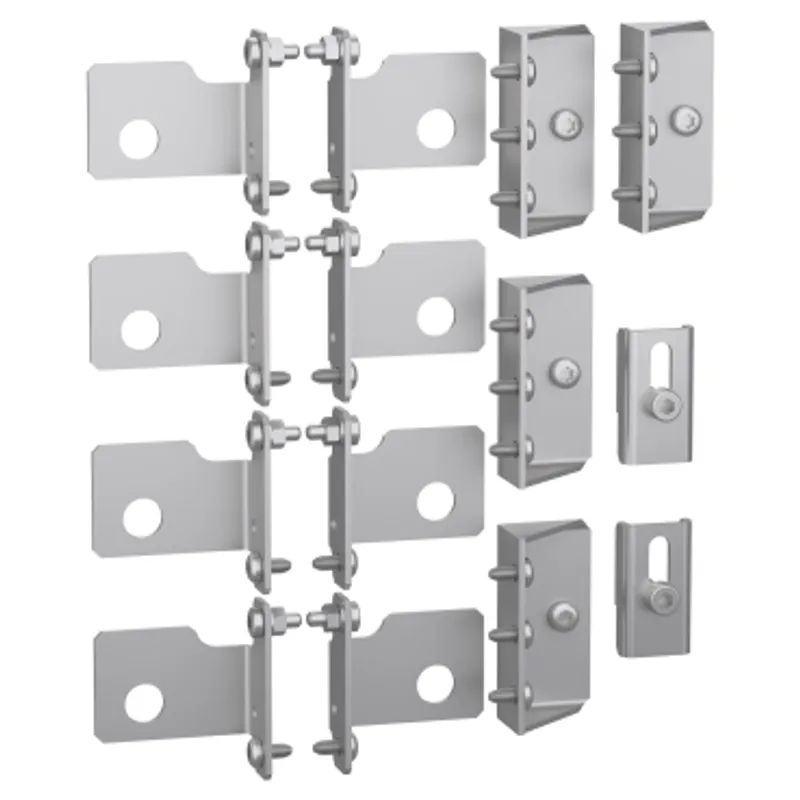

Reinforcement brackets for 3G Seismic application;PanelSeT SFN;steel
- MPN
- NSYSFNRB3G
- EAN
- 3606487101772
- Category
- PanelSet SF
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric NSYSFNRB3G?
This is a set of brackets suitable for PanelSeT SFN enclosures for Seismic and Building Code applications. It is compatible with majority of dimensions. It is made of galvanized steel. The kit contains brackets and fixing elements. This product is qualified as a green premium, with minimal use of hazardous substances.
Specifications
Specifications
| Product or component type | Fixing kit |
| Range compatibility | PanelSeT SFN |
| Application | Seismic |
| Device composition | 2 caged nut M8-1,8-3,2, 4 mounting plate reinforcement bracket 3g, 4 lower plinth reinforcement, 4 upper plinth reinforcement, 2 washer Z8 ZBL, 20 steel nut HU M6 CL8 ZBL, 2 screw chc M8-35 12,9 zn8c, 20 self thr. screw stop toothed prof. M6x13, 20 screw M6X16 8.8 DIN-7985 Torx BS48H, 20 washer SD CON SPRG M6 X 14MM X 1.3MM STL, 4 screw MSC HXG M12 X 30MM STL, 4 washer DIN 25511 M12, 2 mounting plate clamp |
| Material | Steel |
| Localisation on device | 19" upright |
Packaging
| Package 1 | 1 PCE, 17.500 cm × 11.000 cm × 8.500 cm (L × W × H), 2.110 kg |
| Package 2 | 10 PAL, 120.000 cm × 37.500 cm × 29.000 cm (L × W × H), 21.100 kg |
