Schneider Electric NSYSFNHS1

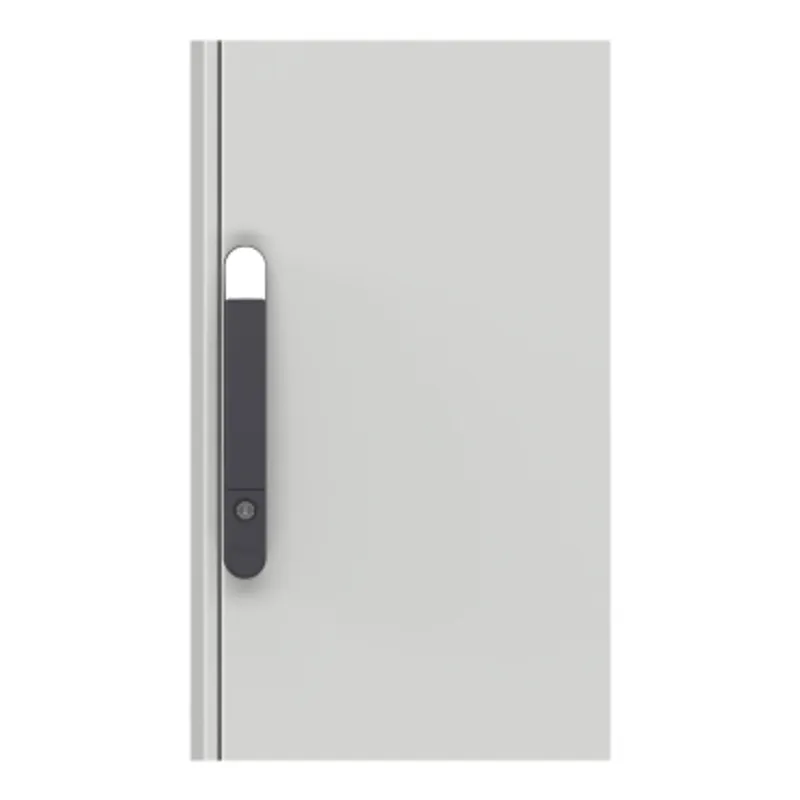

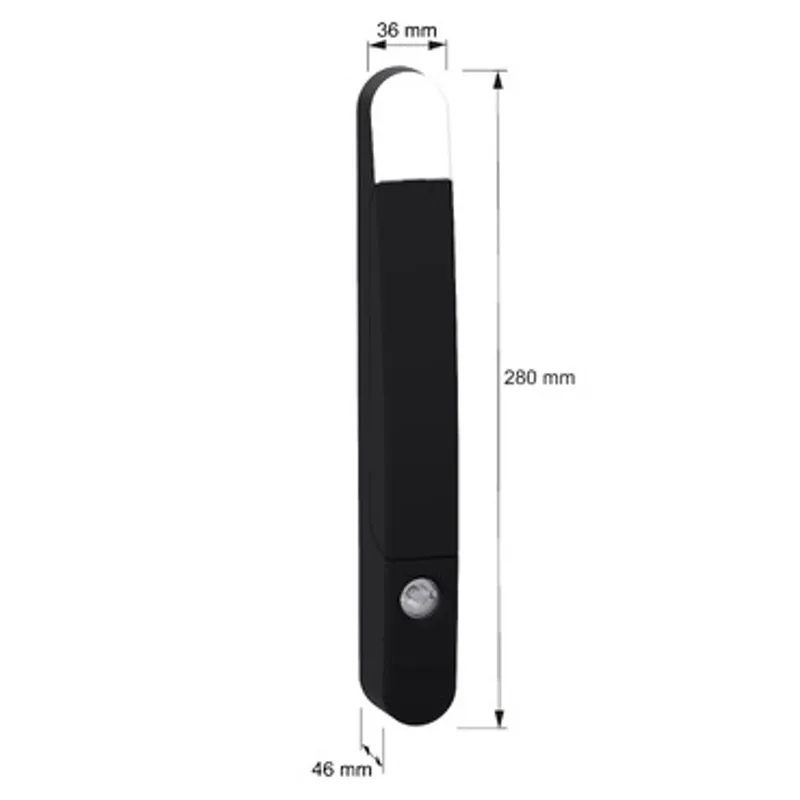

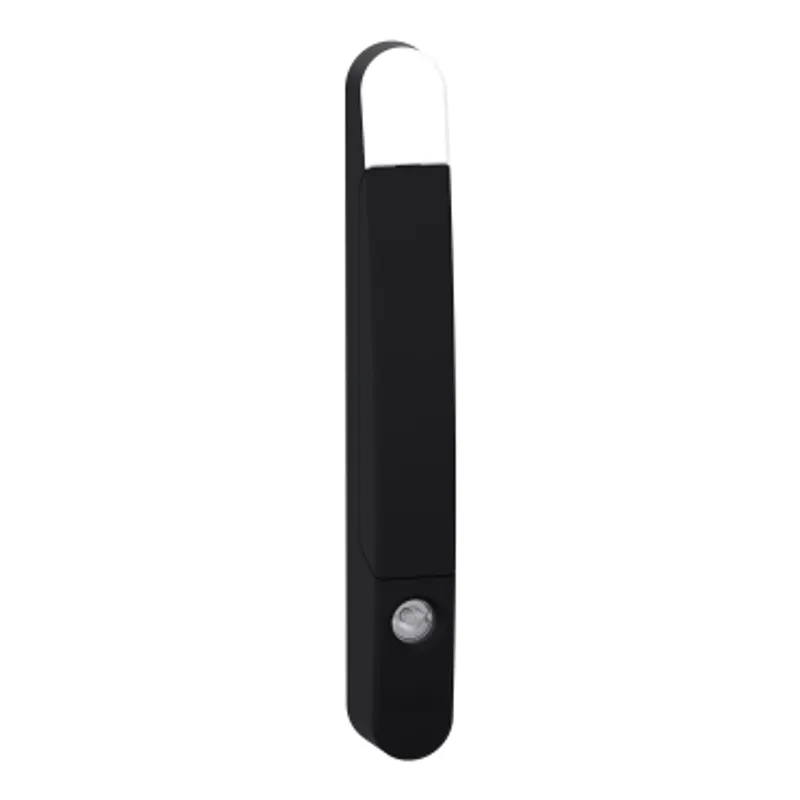

Handle for shaped inserts and cylindrical barrels, PanelSeT SFN, PanelSeT SM, for electrical enclosure, RAL9005
- MPN
- NSYSFNHS1
- EAN
- 3606486379554
- Category
- PanelSeT SFN
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric NSYSFNHS1?

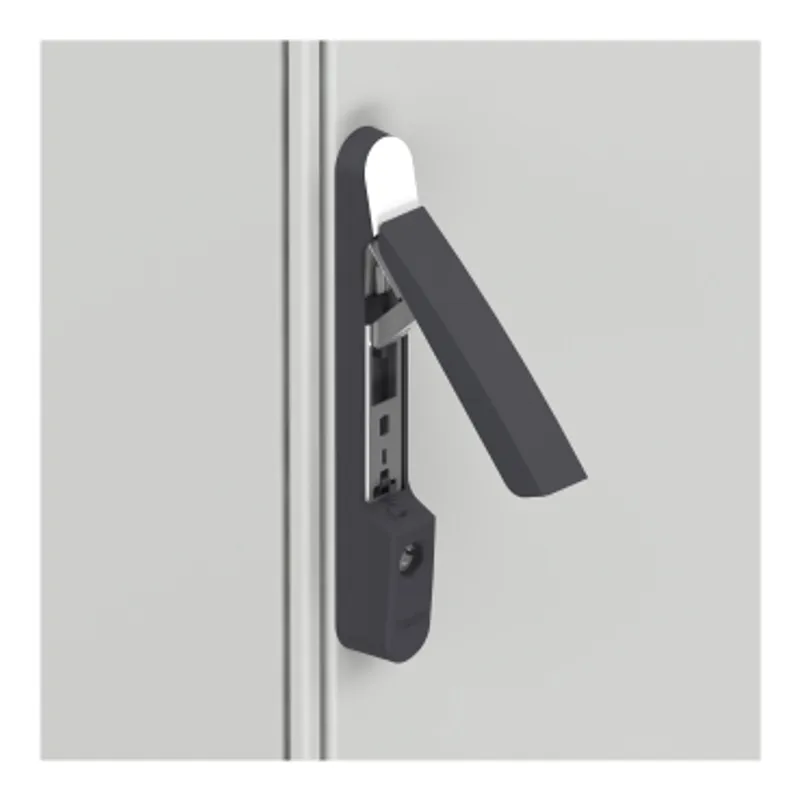

This handle is a locking accessory for PanelSeT SFN and PanelSeT SM floor standing steel electrical enclosures. It is compatible with a wide range of shape inserts and cylindric barrels with key lock. It has a space reserved for enclosure identification of dimensions 21x17 mm, which is protected by a label frame. The handle material is Polyamide 6 with 60% fibreglass and colour black RAL 9005. It includes the standard handle and the fixing elements. It has a mechanical protection of IK10 and fire resistance up to 650°C.
Specifications
Specifications
| Range | PanelSeT |
| Product or component type | Handle |
| Accessory / separate part category | Locking accessory |
| Accessory / separate part type | Handle |
| Device application | Multi-purpose |
| Mounting support | Direct mounting on door |
| Range compatibility | PanelSeT SM, PanelSeT SF |
| Device composition | 1 handle, fixing elements |
| Quantity per set | Set of 1 |
| Material | Handle: polyamide 6 with 30 % fibre glass, Label frame: polycarbonate |
Packaging
| Package 1 | 1 PCE, 31.500 cm × 5.000 cm × 4.500 cm (L × W × H), 436.000 g |
| Package 2 | 16 CAR, 43.000 cm × 33.000 cm × 10.500 cm (L × W × H), 7.310 kg |
| Package 3 | 768 P12, 120.000 cm × 80.000 cm × 106.000 cm (L × W × H), 365.000 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYSFNHS1: frequently asked questions
When can NSYSFNHS1 be shipped?
NSYSFNHS1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYSFNHS1 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYSFNHS1 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYSFNHS1, subject to availability and destination.
