Schneider Electric NSYSFNC610
Bottom and top frame, PanelSeT SFN, for electrical enclosure W600 D1000mm, roof included
- MPN
- NSYSFNC610
- Category
- PanelSeT SFN
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric NSYSFNC610?

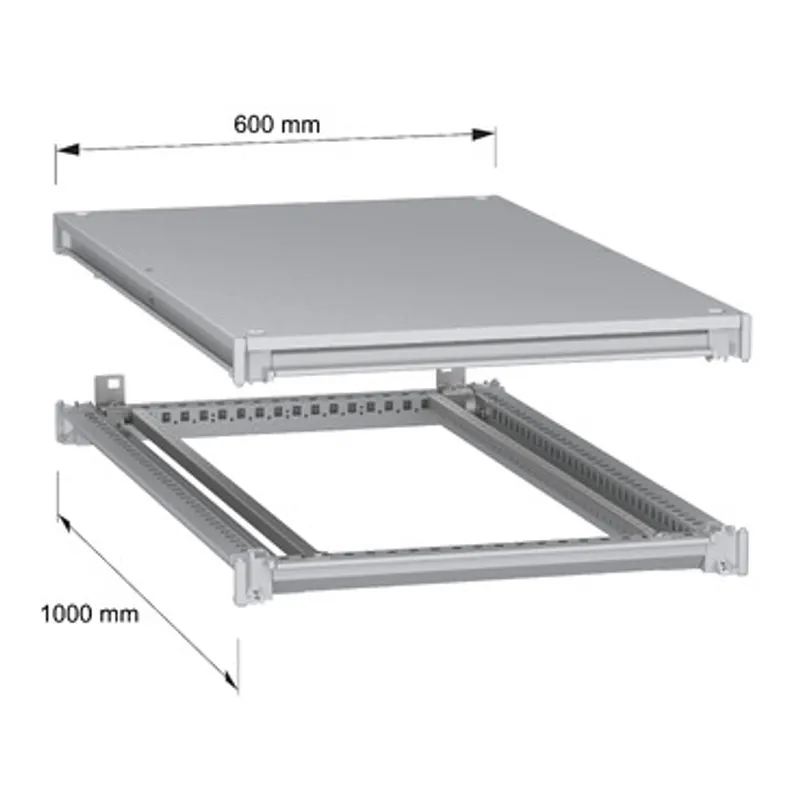

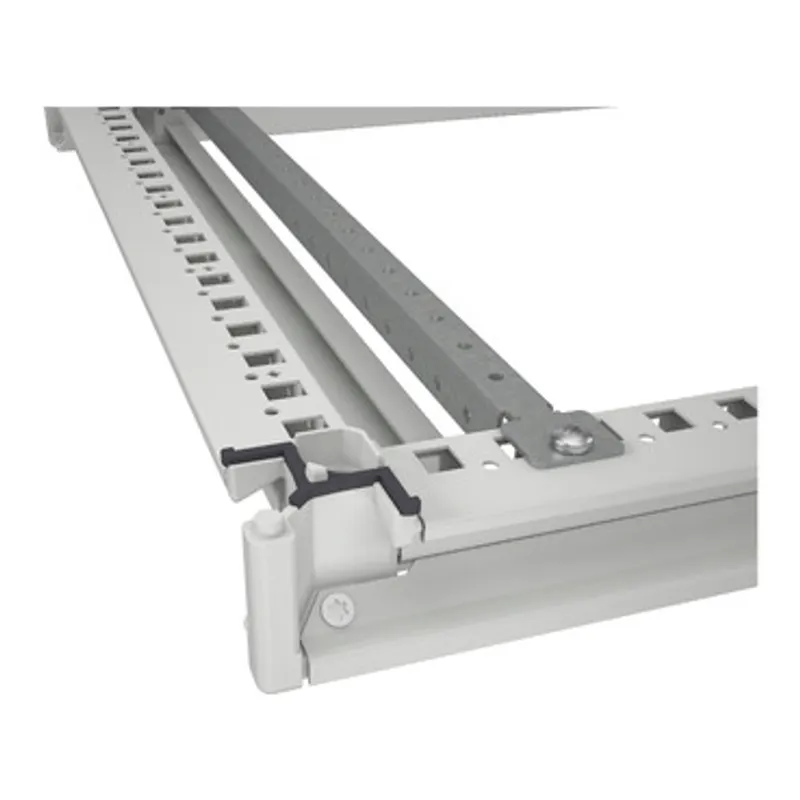

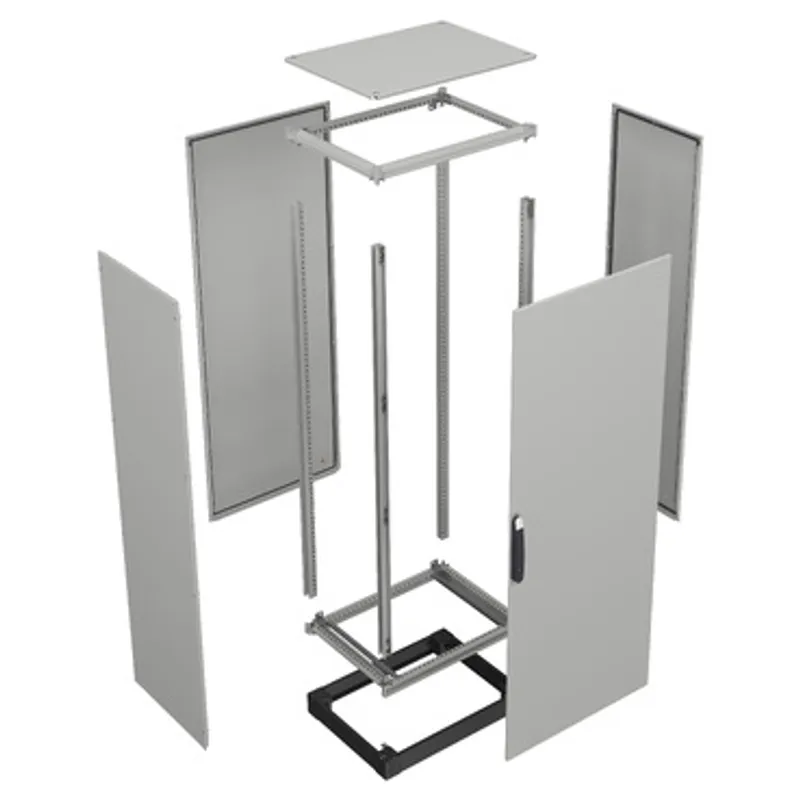

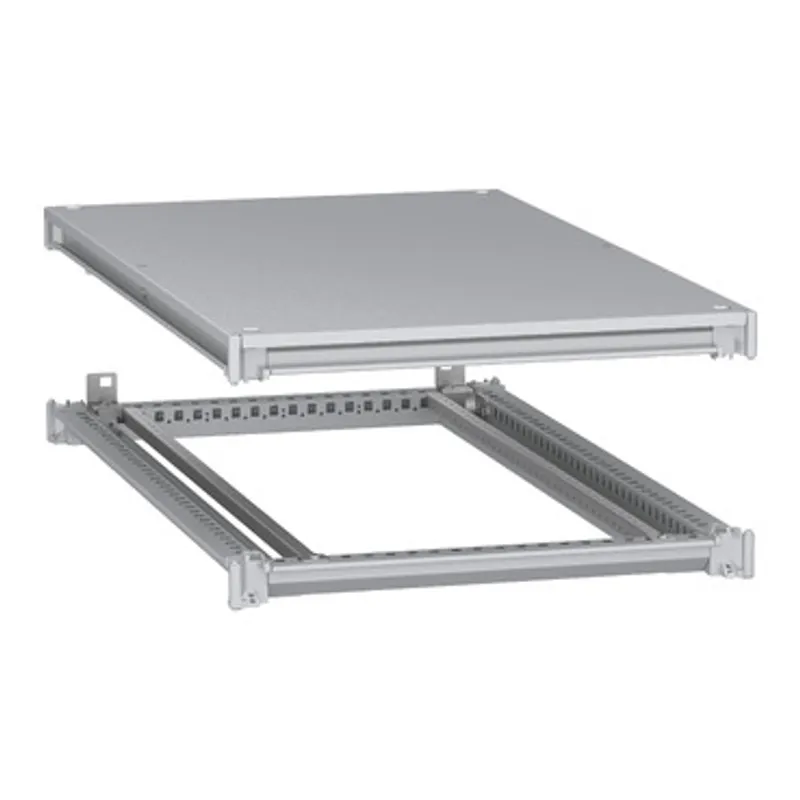

These steel frameworks are purpose-built to assemble a PanelSeT SFN floor standing modular decarbonized steel electrical enclosure for various applications. It contains recycled steel, which is produced with renewable energy, resulting into a significant reduction of CO2 emissions. This set of top and bottom frames and roof has a nominal width and depth of 600 mm and 1000 mm, respectively. It is made of galvanized steel for durability. An epoxy-polyester powder finish provides a smooth appearance. It has a grey (RAL 7035) color.
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Enclosure accessory |
| Application | Multi-purpose |
| Product or component type | Framework kit |
| For enclosure nominal dimensions | - W: 600 mm D: 1000 mm |
| Mounting location | Top of vertical uprights, Bottom of vertical uprights |
| Range compatibility | PanelSeT SFN |
| Device composition | 1 bottom frame, 1 roof, 1 top frame |
| Quantity per set | Set of 1 |
| Material | Steel |
| Colour | Grey (RAL 7035) |
| Surface finish | Epoxy-polyester powder |
| Fixing mode | By screws - each corner of enclosure location |
| Height | 110 mm |
| Width | 600 mm |
| Depth | 1000 mm |
Packaging
| Package 1 | 1 PCE, 101.000 cm × 63.000 cm × 13.000 cm (L × W × H), 23.000 kg |
| Package 2 | 8 P12, 120.000 cm × 80.000 cm × 117.000 cm (L × W × H), 196.000 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYSFNC610: frequently asked questions
When can NSYSFNC610 be shipped?
NSYSFNC610 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYSFNC610 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYSFNC610 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYSFNC610, subject to availability and destination.
More Schneider Electric parts
Schneider Electric

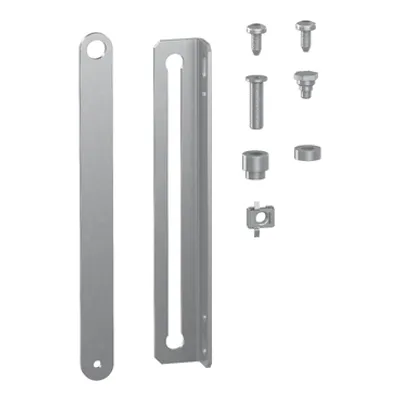

NSYSFMDRMechanical door retainer, PanelSeT SFN, PanelSeT SF, 90° and 120° opening
