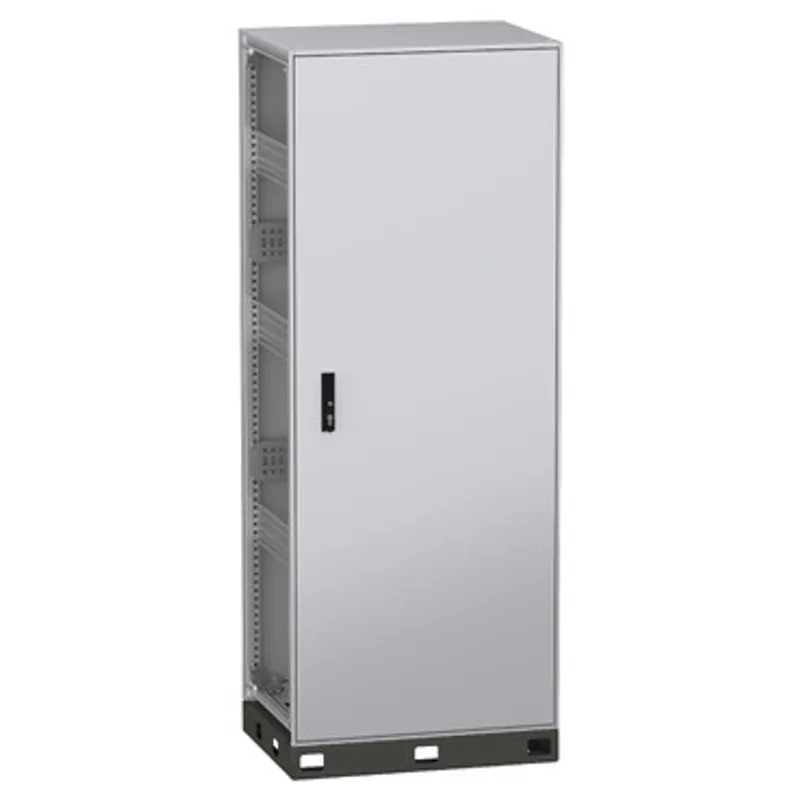

Schneider Electric NSYSFN6G20860
Seismic 6G floor standing modular electrical enclosure;PanelSeT SFN;decarbonized steel;2000X800X600mm;IP55;RAL7035
- MPN
- NSYSFN6G20860
- EAN
- 3606487101802
- Category
- PanelSet SF
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric NSYSFN6G20860?
This PanelSeT SFN is a floor standing modular decarbonized steel electrical enclosure that is suitable for critical Seismic installations. It contains recycled steel, which is produced with renewable energy, resulting into a significant reduction of CO2 emissions. It has a nominal height, width, and depth of 2000 mm, 800 mm and 600 mm, respectively. The frame and uprights of the enclosure are made of galvanized steel for durability. The door and panels are made of steel sheets, while the handle is made of polyamide 6 with 30% fiberglass. An epoxy-polyester powder finish provides a smooth appearance. The enclosure has a grey (RAL 7035) color with a black (RAL 9005) handle. The door has an aperture up to 120 degrees and is reversible, meaning it can be opened from either side. The door has a four-point lock with a handle that has a 5 mm double-bar insert for security. The enclosure has an IP55 rating, which makes it resistant to dust, water and oil ingress. The enclosure is also resistant to impacts, with an IK10 rating.
Specifications
Specifications
| Range | PanelSeT |
| Extended range | SFN |
| Application | Seismic |

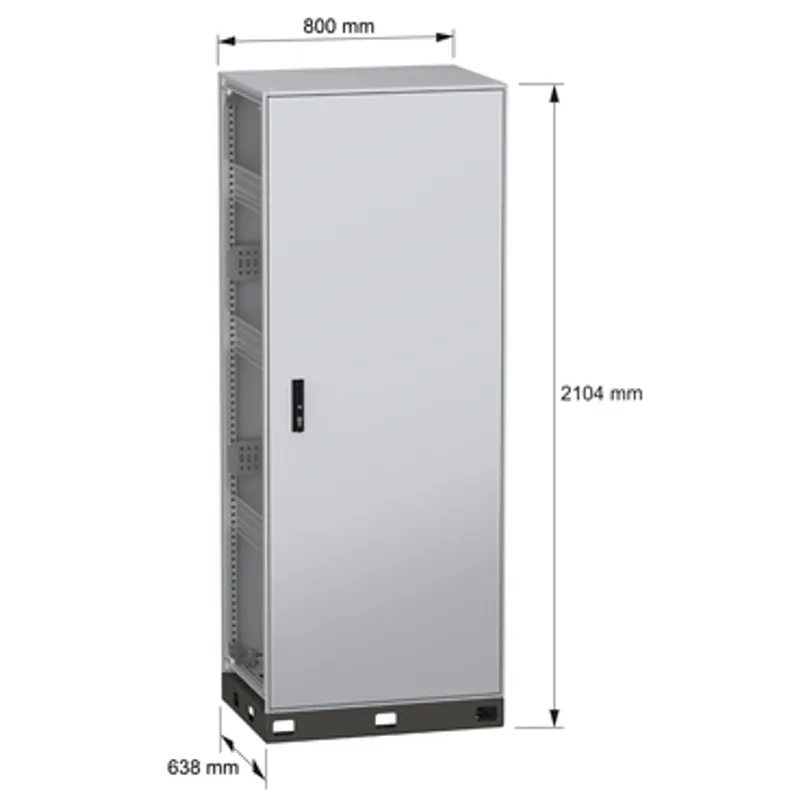

| Enclosure nominal height | 2000 mm |
| Enclosure nominal width | 800 mm |
| Enclosure nominal depth | 600 mm |
| Enclosure mounting | Floor-standing |
| Device composition | 1 upper frame with roof: framework, 1 special lower frame for bolting the base: framework, 4 upright: framework, 8 multi-purpose wedges reinforcements: framework, 8 cross rails fastened to the framework for seismic withstand: framework, 1 monobloc structure: plinth |
| Door opening side | Reversible (120 °) |
| Door type | Plain front |
| Type of keylock | 405E |
| Lock type | EDF - certified seismic locking system front door |
| Number of doors | Front: 1 door(s) |
| Maximum load | 80 kg/m² mounting plate, 250 kg 19" fixed uprights IEC 61587-2 |
| Mechanical robustness | Seismic tests 6G conforming to EDF CRT 91 C 112 00 |
| Standards | IEC 62208, IEC 60068-3-3, UL, CUL |
| Product certifications | 6G certification conforming to EDF CRT 91 C 112 01, UL 508 type A, CSA C22.2 No 14 |
| NEMA degree of protection | NEMA 1, NEMA 2, NEMA 12 |
| IP degree of protection | IP55 conforming to IEC 60529 |
| IK degree of protection | IK10 conforming to IEC 62262 |
Packaging
| Package 1 | 1 PCE, 70.000 cm × 85.000 cm × 234.000 cm (L × W × H), 135.000 kg |
