Schneider Electric NSYSFMDR

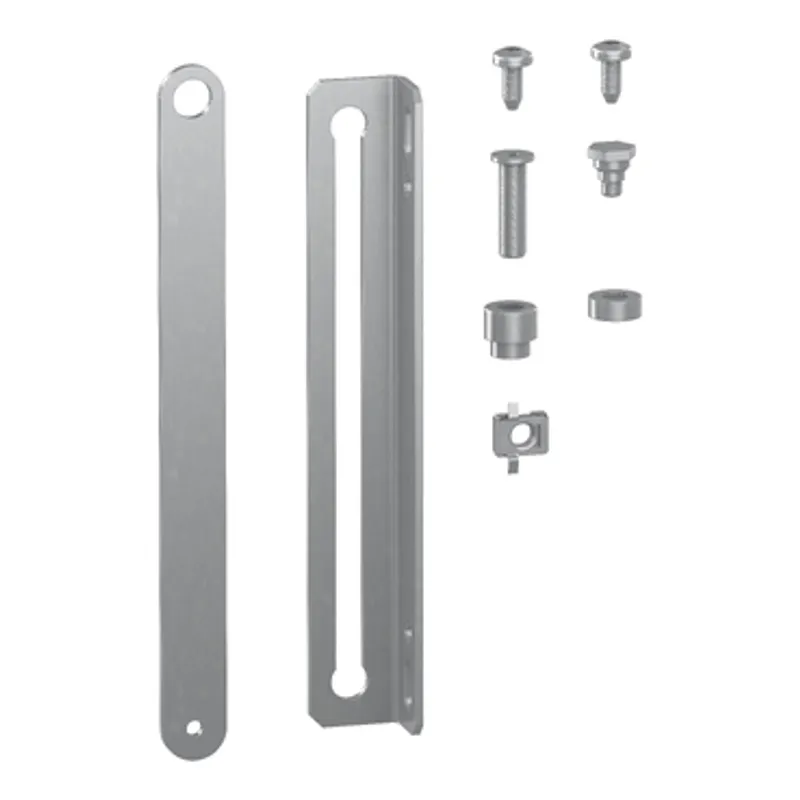

Mechanical door retainer, PanelSeT SFN, PanelSeT SF, 90° and 120° opening
- MPN
- NSYSFMDR
- EAN
- 3606480067754
- Category
- PanelSet SF
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric NSYSFMDR?
This is a mechanical door retainer suitable for PanelSeT SFN and PanelSeT SF electrical enclosures. It is designed to lock the door in open position. It is fixed directly to the front frame of the enclosure and to the reinforcement frame of the door. The product can be installed on doors that open both, to the right and to the left. The limit angle are 90° and 120°. The set contains one door stop and fixing elements.
Specifications
Specifications
| Range | PanelSeT |
| Product or component type | Door retainer |
| Application | Multi-purpose |
| Nominal dimensions of the housing | - |
| Mounting location | Door and enclosure |
| Range compatibility | PanelSeT SF enclosure |
| Device composition | Fixing elements, 1 x door stop |
| Quantity per set | Set of 1 |
| Fixing mode | By fixing element - on front frame of enclosure location |
| Operating angle | 90 °, 120 ° |
| Opening mechanism | Mechanical |
| Enclosure/cubicle width | > 400 mm |
Packaging
| Package 1 | 1 PCE, 25.000 cm × 5.500 cm × 3.500 cm (L × W × H), 316.000 g |
| Package 2 | 300 PAM, 120.000 cm × 100.000 cm × 49.000 cm (L × W × H), 110.000 kg |
