Schneider Electric NSYSD6

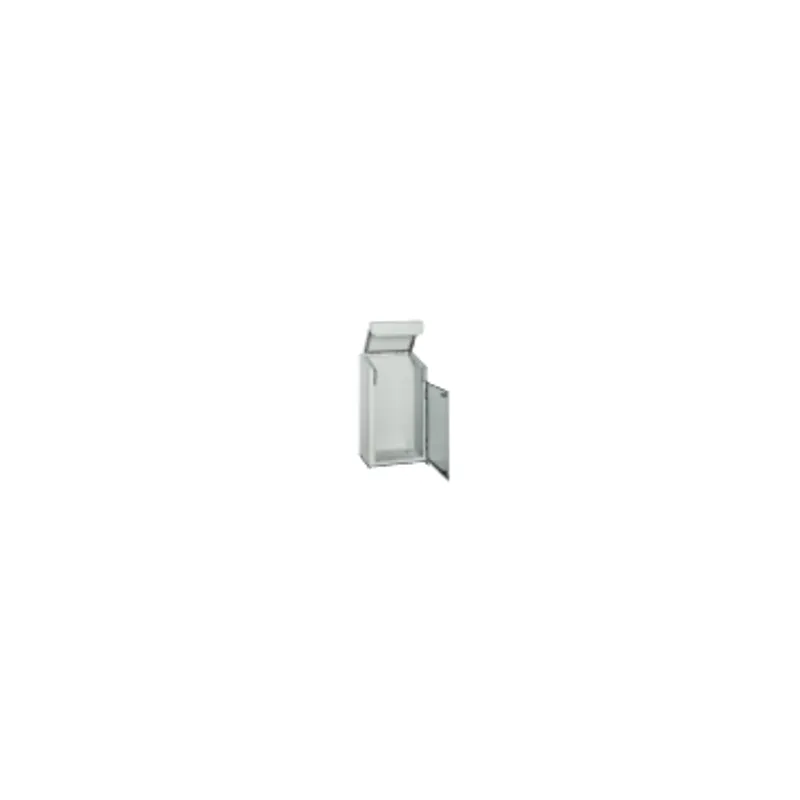

PanelSeT SD Compact control desk w/o mounting plate - H1000xW600xD466 - IP55
- MPN
- NSYSD6
- EAN
- 3606480154409
- Category
- PanelSet SD
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric NSYSD6?
Spacial SD floor-standing monobloc control desk 1000mm (height), 600mm (width) and 466mm (depth) Single piece structure folded and welded body made from 1,5mm steel The enclosure is made up of 1 structure, 1 door, 2 locks for door, 4 adjustment rails, 1 cable gland plate and 2 pneumatic stays for desk lid Easy removable and reversible door opening to 120° Locking by 2 points lock, 3mm double-bar Mounting plate is not included
Specifications
Specifications
| Range | PanelSeT |
| Product name | PanelSeT SD |
| Enclosure type | Multi-purpose |
| Category | Monobloc control desk |
| Nominal height | 1000 mm |
| Nominal width | 600 mm |
| Nominal depth | 466 mm |
| Product installation | Floor-standing |
| Device composition | 1 structure, 1 door, 2 lock: door, 4 adjustment rail, 1 cable gland plate, 2 pneumatic stay: desk lid |
| Body type | Single piece structure folded and welded |
| Door type | Plain |
| Number of doors | Front: 1 door(s) |
| Door opening side | Reversible 120 ° door |
| Lock type | 2 points lock, 3 mm double-bar |
| Mounting plate description | Without mounting plate |
| Type of gland plate | 1 entry plate |
| Accessibility for operation | Front |
| Removable parts | Door by hinges, Desk lid by hinges, Cable gland plate by clipping screws |
| Material | Body: steel |
| Surface finish | Epoxy-polyester powder |
| thickness | 1.5 mm |
| Standards | IEC 62208 |
| IP degree of protection | IP55 conforming to IEC 60529 |
| IK degree of protection | IK10 conforming to IEC 62262 |
Packaging
| Package 1 | 1 PCE, 116.000 cm × 60.000 cm × 50.000 cm (L × W × H), 42.000 kg |
| Package 2 | 4 PAM, 120.000 cm × 100.000 cm × 130.000 cm (L × W × H), 213.000 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYSD6: frequently asked questions
When can NSYSD6 be shipped?
NSYSD6 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYSD6 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYSD6 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYSD6, subject to availability and destination.
