Schneider Electric NSYSD12

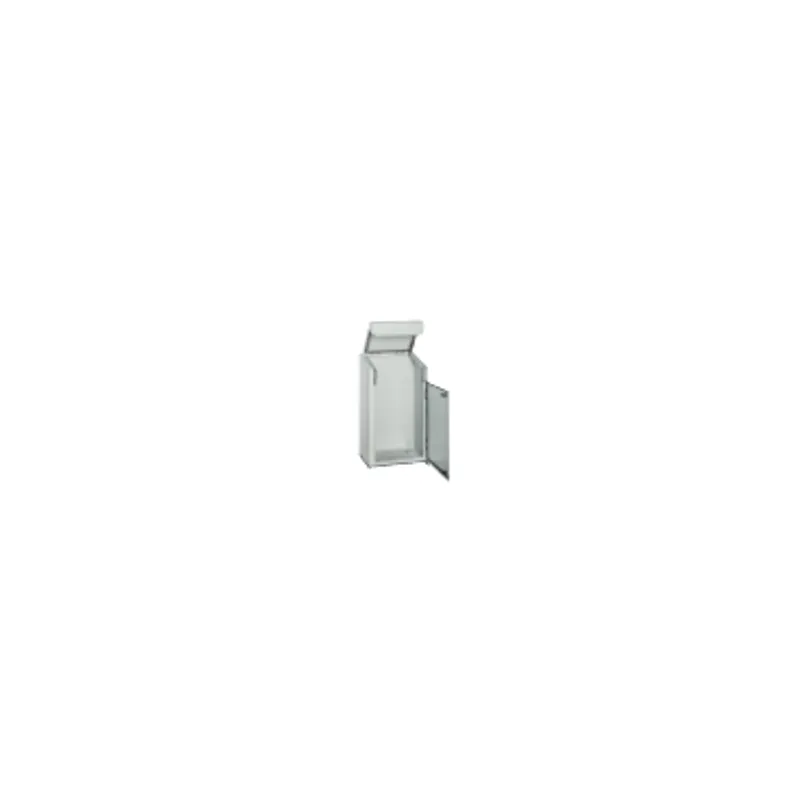

PanelSeT SD Compact control desk w/o mounting plate - H1000xW1200xD466 - IP55
- MPN
- NSYSD12
- EAN
- 3606480154362
- Category
- PanelSet SD
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric NSYSD12?
"PanelSeT SD floor-standing monobloc control desk 1000mm (height), 1200mm (width) and 466mm (depth)" "Single piece structure folded and welded body made from 1,5mm steel" The enclosure is made up of 1 structure, 2 locks for door, 4 adjustment rails, 1 cable gland plate, 2 pneumatic stays for desk lid and 2 doors Easy removable and reversible door opening to 120° Locking by 2 points lock, 3mm double-bar Mounting plate is not included One entry cable gland plate, with polyurethane gasket Anti-corrosion protection is ensured by an epoxy-polyester powder coating Color of product is grey (RAL-7035) Ingress protection rating IP55 conforming to IEC 60529 Mechanical protection rating IK10 conforming to IEC 62262 "This product is qualified as a green premium, with minimal use of hazardous substances"
Specifications
Specifications
| Range | PanelSeT |
| Product name | PanelSeT SD |
| Enclosure type | Multi-purpose |
| Category | Monobloc control desk |
| Nominal height | 1000 mm |
| Nominal width | 1200 mm |
| Nominal depth | 466 mm |
| Product installation | Floor-standing |
| Device composition | 1 structure, 2 lock: door, 4 adjustment rail, 1 cable gland plate, 2 pneumatic stay: desk lid, 2 door |
| Body type | Single piece structure folded and welded |
| Door type | Plain |
| Number of doors | Front: 2 door(s) |
| Door opening side | Reversible 120 ° door |
| Lock type | 2 points lock, 3 mm double-bar |
| Mounting plate description | Without mounting plate |
| Type of gland plate | 1 entry plate |
| Accessibility for operation | Front |
| Removable parts | Door by hinges, Desk lid by hinges, Cable gland plate by clipping screws |
| Material | Body: steel |
| Surface finish | Epoxy-polyester powder |
| thickness | 1.5 mm |
| Standards | IEC 62208 |
| IP degree of protection | IP55 conforming to IEC 60529 |
| IK degree of protection | IK10 conforming to IEC 62262 |
Packaging
| Package 1 | 1 PCE, 120.000 cm × 116.000 cm × 50.000 cm (L × W × H), 66.000 kg |
| Package 2 | 2 PAM, 120.000 cm × 100.000 cm × 130.000 cm (L × W × H), 165.000 kg |
