Schneider Electric NSYSD10R

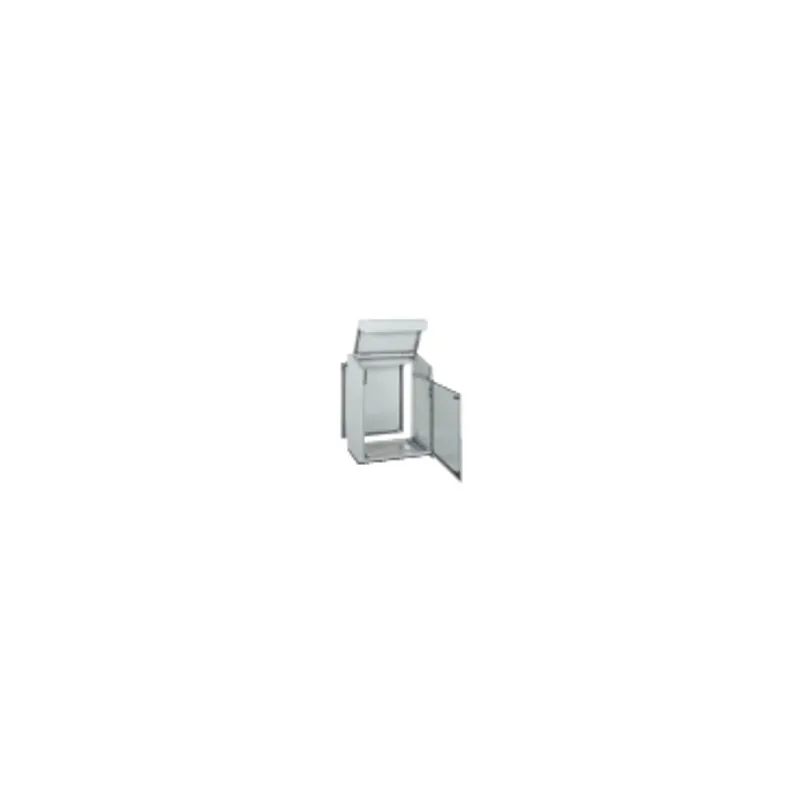

PanelSeT SD Compact control desk with rear panel - H1000xW1000xD597 - IP55
- MPN
- NSYSD10R
- EAN
- 3606480154348
- Category
- PanelSet SD
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric NSYSD10R?
"PanelSeT SD floor-standing monobloc control desk with rear panel 1000mm (height), 1000mm (width) and 597mm (depth)" "Single piece structure folded and welded body made from 1,5mm steel" The enclosure is made up of 1 structure, 2 locks for door, 4 adjustment rails, 1 cable gland plate, 2 pneumatic stays for desk lid, 2 doors, 1 rear panel and 5 top plates for on top of control desk Easy removable and reversible door opening to 120° Removable rear panel enables the installation of two mounting plates back-to-back and ensures full accessibility from the front and the rear Locking by 2 points lock, 3mm double-bar Mounting plate is not included One entry cable gland plate, with polyurethane gasket Anti-corrosion protection is ensured by an epoxy-polyester powder coating Color of product is grey (RAL-7035) Ingress protection rating IP55 conforming to IEC 60529 Mechanical protection rating IK10 conforming to IEC 62262 "This product is qualified as a green premium, with minimal use of hazardous substances"
Specifications
Specifications
| Range | PanelSeT |
| Product name | PanelSeT SD |
| Enclosure type | Multi-purpose |
| Category | Monobloc control desk with rear panel |
| Nominal height | 1000 mm |
| Nominal width | 1000 mm |
| Nominal depth | 597 mm |
| Product installation | Floor-standing |
| Device composition | 1 structure, 2 lock: door, 4 adjustment rail, 1 cable gland plate, 2 pneumatic stay: desk lid, 2 door, 1 rear panel, 5 top plate: on top of control desk |
| Body type | Single piece structure folded and welded |
| Door type | Plain |
| Number of doors | Front: 2 door(s) |
| Door opening side | Reversible 120 ° door |
| Lock type | 2 points lock, 3 mm double-bar |
| Mounting plate description | Without mounting plate |
| Type of gland plate | 1 entry plate |
| Accessibility for operation | Rear, Front |
| Removable parts | Door by hinges, Desk lid by hinges, Cable gland plate by clipping screws, Blanking covers by screws, Rear panel by screws |
| Material | Body: steel |
| Surface finish | Epoxy-polyester powder |
| thickness | 1.5 mm |
| Colour | Grey (RAL 7035) |
| Standards | IEC 62208 |
| IP degree of protection | IP55 conforming to IEC 60529 |
| IK degree of protection | IK10 conforming to IEC 62262 |
Packaging
| Package 1 | 1 PCE, 116.000 cm × 102.000 cm × 66.000 cm (L × W × H), 74.000 kg |
| Package 2 | 2 PAM, 120.000 cm × 100.000 cm × 130.000 cm (L × W × H), 172.000 kg |
