Schneider Electric NSYMCDFIX

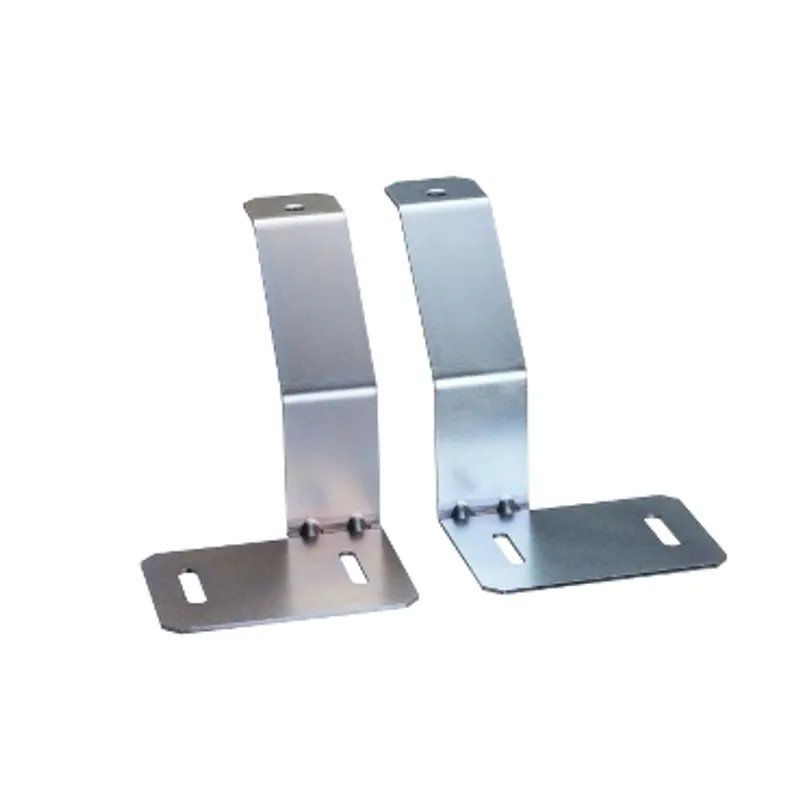

Cable duct fixing supports, PanelSeT SFN, PanelSeT SF, PanelSeT SM, set of 6
- MPN
- NSYMCDFIX
- EAN
- 3606480065385
- Category
- PanelSeT SM
Price and lead time confirmed within 1 business day
Discontinued by Schneider Electric — we can still source the original NSYMCDFIX (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric NSYMCDFIX?
This is a cable duct finixing support suitable for PanelSeT SFN, PanelSeT SF and PanelSeT SM electrical enclosures. It allows the fixing of gutters in horizontal and vertical position on the same plane to facilitate cable distribution. It is designed to be fixed by screws directly on the rail supplied with the fixed or adjustable rail. It is made of steel. The color is grey RAL7035. Anti-corrosion protection is ensured by an epoxy-polyester zinc coated coating. The kit contains 6 supports (3 on the right and 3 on the left)and fixing elements.
Specifications
Specifications
| Accessory / separate part category | Mounting accessory |
| Product or component type | Mounting support |
| Product destination | Cable duct |
| Range compatibility | PanelSeT PanelSeT SM, PanelSeT PanelSeT SF |
| Anwendung | Multi-purpose |
| Mounting support | Cable duct, DIN rail |
| Device composition | Fixing elements, 3 right support, 3 left support |
| Quantity per set | Set of 1 |
| Material | Steel |
| Surface finish | Zinc coated |
| Fixing mode | By screws |
| Height | Fixing center: 85 mm, 115 mm |
| Width | Fixing center: 50 mm, 155 mm |
| Depth | 91.5 mm, 145 mm |
| Diameter | 0 mm |
| Coverage | Core product |
Packaging
| Package 1 | 1 PCE, 14.500 cm × 15.500 cm × 11.500 cm (L × W × H), 688.000 g |
| Package 2 | 150 PAM, 120.000 cm × 100.000 cm × 100.000 cm (L × W × H), 120.000 kg |
