Schneider Electric NSYEL166D6

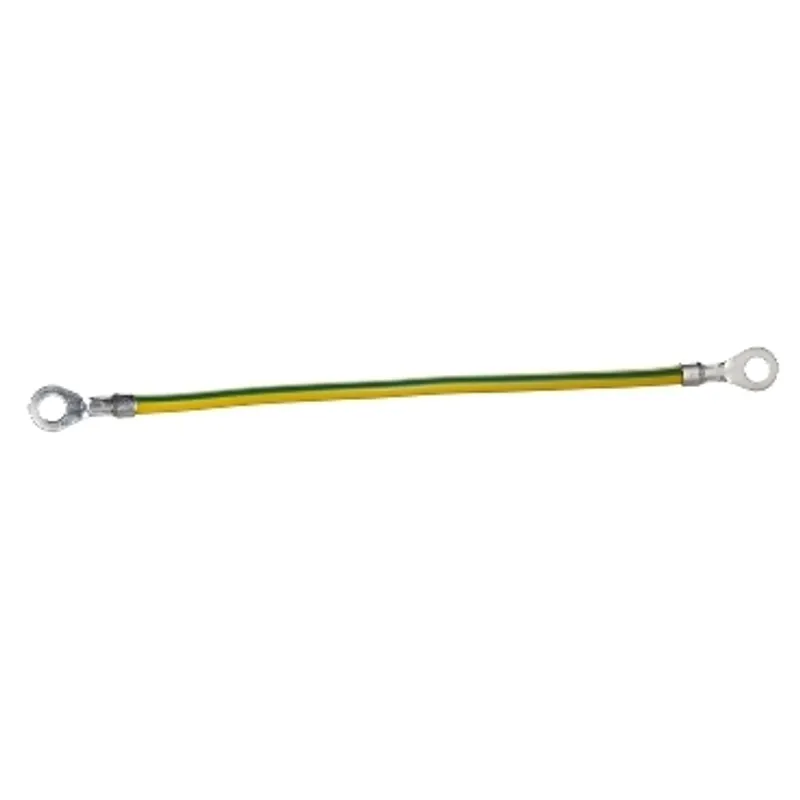

Earth leads section 6mm², length 160mm, eyelet hole 6,4mm. Packaging unit: 10.
- MPN
- NSYEL166D6
- EAN
- 3606480181627
- Category
- PanelSeT CRN
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric NSYEL166D6?
Set of 10 earthing wires for Spacial enclosures Sheath and brass are made from green and yellow PVC (polyvinyl chloride) The terminal is made from copper alloy The length is 160mm The width is 10mm Nominal cross section is 6 mm²
Specifications
Specifications
| Range | PanelSeT |
| Anwendung | Multi-purpose |
| Product or component type | Earthing wire |
| Device composition | 1 lead |
| Quantity per set | Set of 10 |
| Material | PVC (polyvinyl chloride) green and yellow for sheath, Brass and copper alloy for terminal |
| Fixing mode | Nut and washer - on earth connection location |
| Length | 160 mm |
| Width | 10 mm |
| Nominal cross section | 6 mm² |
| Diameter | 6.4 mm |
| Coverage | Core product |
Packaging
| Package 1 | 1 PCE, 1.000 cm × 10.500 cm × 20.000 cm (L × W × H), 13.000 g |
| Package 2 | 9600 P12, 120.000 cm × 80.000 cm × 56.000 cm (L × W × H), 152.100 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYEL166D6: frequently asked questions
When can NSYEL166D6 be shipped?
NSYEL166D6 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYEL166D6 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYEL166D6 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYEL166D6, subject to availability and destination.
