Schneider Electric NSYEDCOS

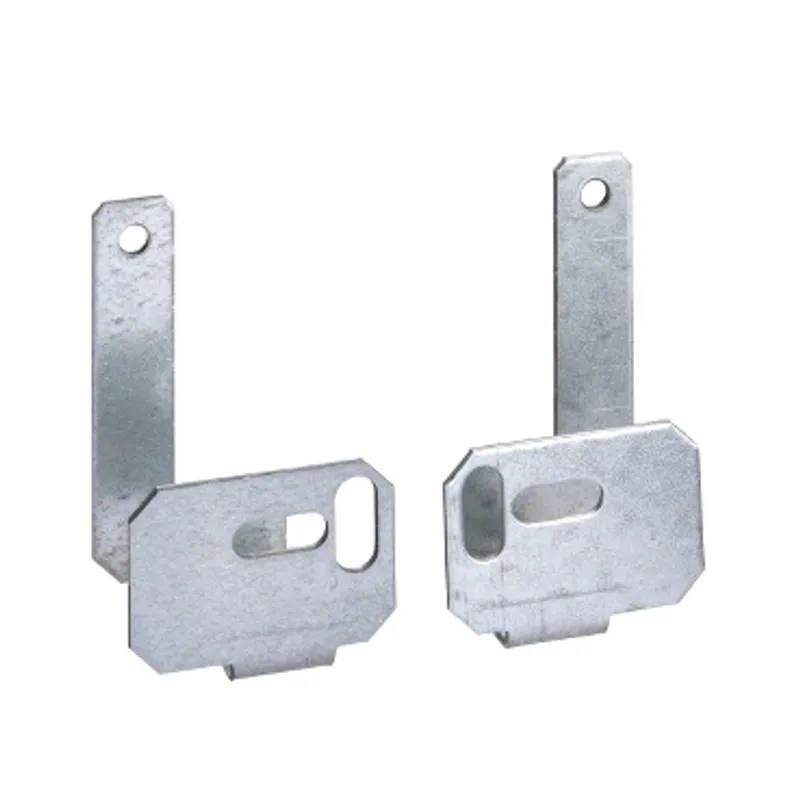

Set of 2 brackets for earthing collector bar for PanelSeT WM enclosures.
- MPN
- NSYEDCOS
- EAN
- 3606480181603
- Category
- PanelSeT CRN
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric NSYEDCOS?
Fixing bracket made from zinc coated steel for PanelSeT PLM, PanelSeT PLA, PanelSeT CRN, PanelSeT S3D and PanelSeT S3CM enclosures The width is 90mm The height is 38mm The depth is 39mm The kit is made up of fixing elements and 2 lugs Fixed Allows the installation of a DIN rail and an earthing strip on different planes to minimize the cable radiuses
Specifications
Specifications
| Range | PanelSeT |
| Anwendung | Multi-purpose |
| Product or component type | Fixing bracket |
| Mounting location | Top and bottom of the enclosure |
| Mounting support | DIN rail, Earthing bar |
| Device composition | Fixing elements, 2 lug |
| Quantity per set | Set of 1 |
| Material | Zinc coated steel |
| Fixing mode | By fixing element |
| Height | 38 mm |
| Width | 90 mm |
| Depth | 39 mm |
Packaging
| Package 1 | 1 PCE, 9.000 cm × 9.000 cm × 18.000 cm (L × W × H), 262.000 g |
| Package 2 | 24 CAR, 40.000 cm × 30.000 cm × 40.000 cm (L × W × H), 6.828 kg |
| Package 3 | 480 PAM, 120.000 cm × 100.000 cm × 100.000 cm (L × W × H), 279.200 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYEDCOS: frequently asked questions
When can NSYEDCOS be shipped?
NSYEDCOS is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYEDCOS in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYEDCOS and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYEDCOS, subject to availability and destination.
