Schneider Electric NSYEDCOC

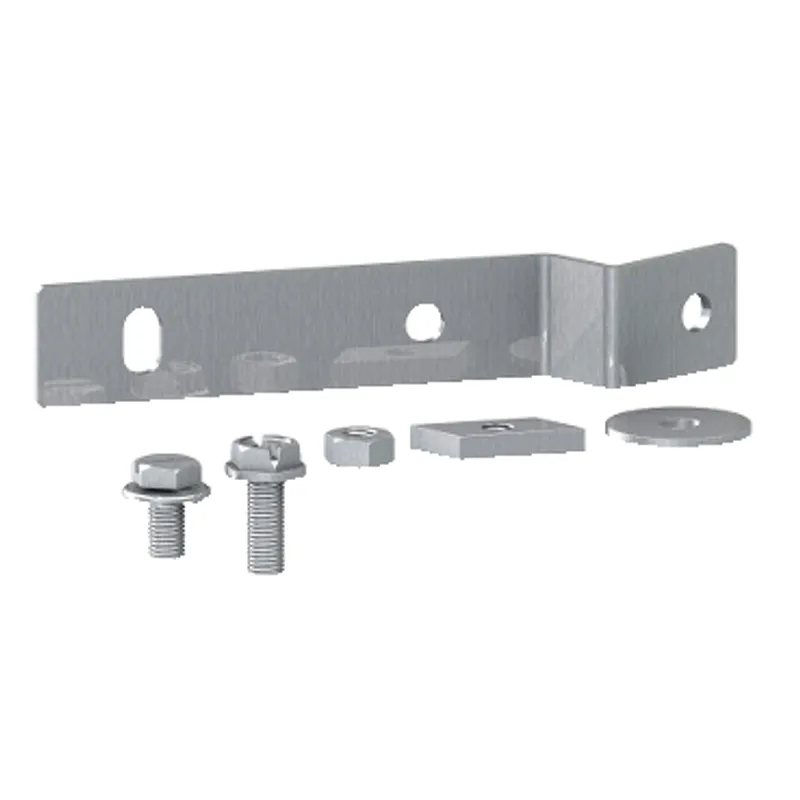

Set of 2 combined fixing brackets for earthing collector bar and DIN rail.
- MPN
- NSYEDCOC
- EAN
- 3606480181597
- Category
- PanelSeT CRN
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric NSYEDCOC?
Fixing bracket made from zinc coated steel for PanelSeT enclosures The length is 110mm The kit is made up of fixing elements and 2 lugs Fixed Allows the installation of a DIN rail and an earthing strip on different planes to minimize the cable radiuses
Specifications
Specifications
| Range | PanelSeT |
| Anwendung | Multi-purpose |
| Product or component type | Fixing bracket |
| Mounting location | On mounting plate |
| Mounting support | Earthing bar, DIN rail |
| Device composition | Fixing elements, 2 lug |
| Quantity per set | Set of 1 |
| Material | Zinc coated steel |
| Fixing mode | By fixing element |
| Length | 110 mm |
| Coverage | Core product |
Packaging
| Package 1 | 1 PCE, 13.000 cm × 12.000 cm × 3.000 cm (L × W × H), 129.000 g |
| Package 2 | 100 CAR, 30.000 cm × 40.000 cm × 20.000 cm (L × W × H), 13.454 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYEDCOC: frequently asked questions
When can NSYEDCOC be shipped?
NSYEDCOC is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYEDCOC in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYEDCOC and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYEDCOC, subject to availability and destination.
