Schneider Electric NSYCSH188
Single-chassis coupling set, PanelSeT SFN, PanelSeT SF, SM, for electrical enclosure H1800 W800mm, 360 modules of 18mm
- MPN
- NSYCSH188
- EAN
- 3606480063800
- Category
- PanelSeT SM
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric NSYCSH188?

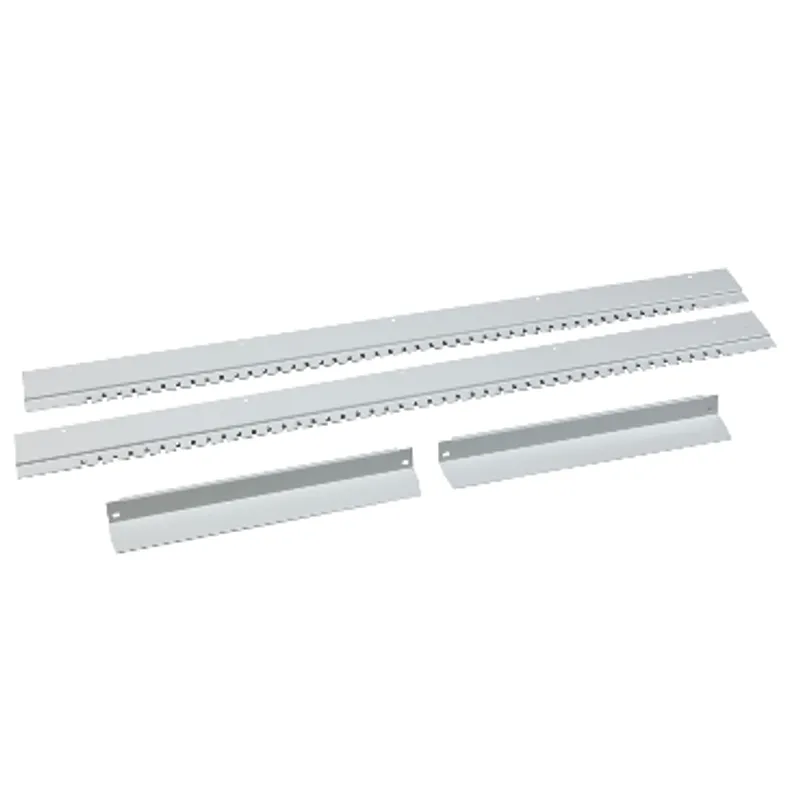

This is a single-chassis coupling set suitable for PanelSeT SFN, PanelSeT SF and PanelSeT SM electrical enclosures. The product consists of vertical uprights and horizontal crossbars, providing convenient access to the enclosure's interior for easy component installation. It is made of steel. The color is grey RAL7035. Anti-corrosion protection is ensured by an epoxy-polyester zinc coated coating. The nominal width and height are 800mm and 1800mm respectively. The real width, height and depth are 702mm, 1705mm and 100mm respectively. The maximun number of 18mm modules is 360. The kit contains 2 vertical uprights, 2 horizontal crossbars and fixing elements.
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Application | Multi-purpose |
| Product or component type | Coupling kit |
| For enclosure nominal dimensions | - |
| Mounting location | Front of enclosure |
| Range compatibility | PanelSeT PanelSeT SM, PanelSeT PanelSeT SF |
| Device composition | Fixing elements, 2 horizontal crossbars, 2 vertical uprights |
| Quantity per set | Set of 1 |
| Material | Steel |
| Colour | Grey (RAL 7035) |
| Surface finish | Epoxy-polyester powder |
| Fixing mode | By fixing element |
| Total number of 18 mm modules | 360 |
| Height | Real: 1705 mm, Nominal: 1800 mm |
| Width | Real: 702 mm |
| Depth | Real : 100 mm |
| Coverage | Core product |
Packaging
| Package 1 | 1 PCE, 186.000 cm × 12.000 cm × 5.500 cm (L × W × H), 7.726 kg |
| Package 2 | 40 P2M, 200.000 cm × 120.000 cm × 50.000 cm (L × W × H), 359.900 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYCSH188: frequently asked questions
When can NSYCSH188 be shipped?
NSYCSH188 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYCSH188 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYCSH188 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYCSH188, subject to availability and destination.
